ALED4T105 LED Area Light by RAB – High-Efficiency Lighting Solutions

The ALED4T105 is a robust LED area light designed for outdoor lighting applications requiring high lumen output and energy efficiency. Manufactured by RAB, this fixture is suitable for electrical distributors and lighting solution providers focused on delivering reliable illumination for commercial and industrial environments. It operates efficiently at 109 watts, producing 13,680 lumens with a color temperature of 5000 kelvins, making it ideal for applications demanding bright, daylight-quality lighting. The fixture supports installation in ambient temperatures up to 104°F and starts reliably at temperatures as low as -40°C.

Specifications

• Manufacturer: RAB
• Model Number: ALED4T105
• Input Wattage: 109 watts
• Lumens: 13,680 lumens
• Efficacy: 125 lumens per watt
• Color Temperature: 5000 kelvins
• Color Accuracy: 70 CRI (Color Rendering Index)
• Ambient Operating Temperature: Up to 104°F
• Minimum Starting Temperature: -40°C
• Product Weight: 38.625 lbs
• UPC: 019813938042

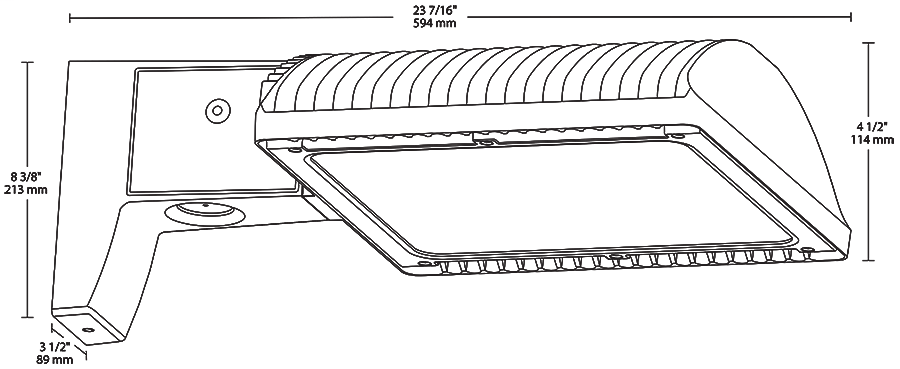

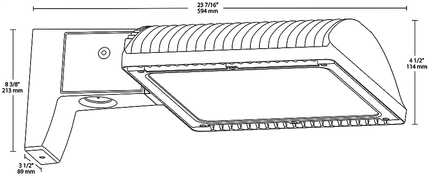

• Dimensions (W x H x D): 23 7/16" x 8 3/8" x 4 1/2" (594 mm x 213 mm x 114 mm)

Features

• High-efficiency LED technology delivering 125 lumens per watt
• Daylight color temperature (5000K) for clear visibility
• Durable design suitable for harsh ambient temperatures up to 104°F
• Reliable starting performance down to -40°C
• Compact form factor for versatile mounting options

Downloads & Links

• Instructions
