ALED3T78N
SKU: #108005
Part: #ALED3T78N
UPC: 019813029931
ALED3T78N
SKU: #108005
Part: #ALED3T78N
UPC: 019813029931
Description
ALED3T78N LED Area Light by RAB
The ALED3T78N is a high-performance LED area light designed for roadway, general parking, and other large area lighting applications. As a reliable lighting solution from a leading electrical distributor, this fixture offers efficient illumination with a Type III distribution pattern, ideal for projecting light outward from the side of the area to ensure broad coverage. It is suitable for use in outdoor environments, meeting wet location requirements, and is compatible with various mounting configurations including universal arm and pole mounts.
Specifications
- Manufacturer: RAB
- Model Number: ALED3T78N
- Lumens: 8,941 lumens
- Efficacy: 117 lumens per watt
- Input Wattage: 76 watts
- Color Temperature: 4000 kelvins (Neutral)
- Color Accuracy: 72 CRI
- Lens Material: Tempered Glass
- Ambient Temperature Rating: Up to 104°F (40°C)
- Minimum Starting Temperature: -40°C (-40°F)
- Weight: 35.3 lbs
- IP Rating: IP66 (dust and water resistant)
- Housing: Die-cast aluminum housing, lens frame, and mounting arm
- LED Lifespan: 100,000 hours (L70)
- Driver Type: Constant Current, Class 2, 100-277V, 50-60Hz
- Power Factor: 99%
- Surge Protection: 4kV
- IES Classification: Type III distribution

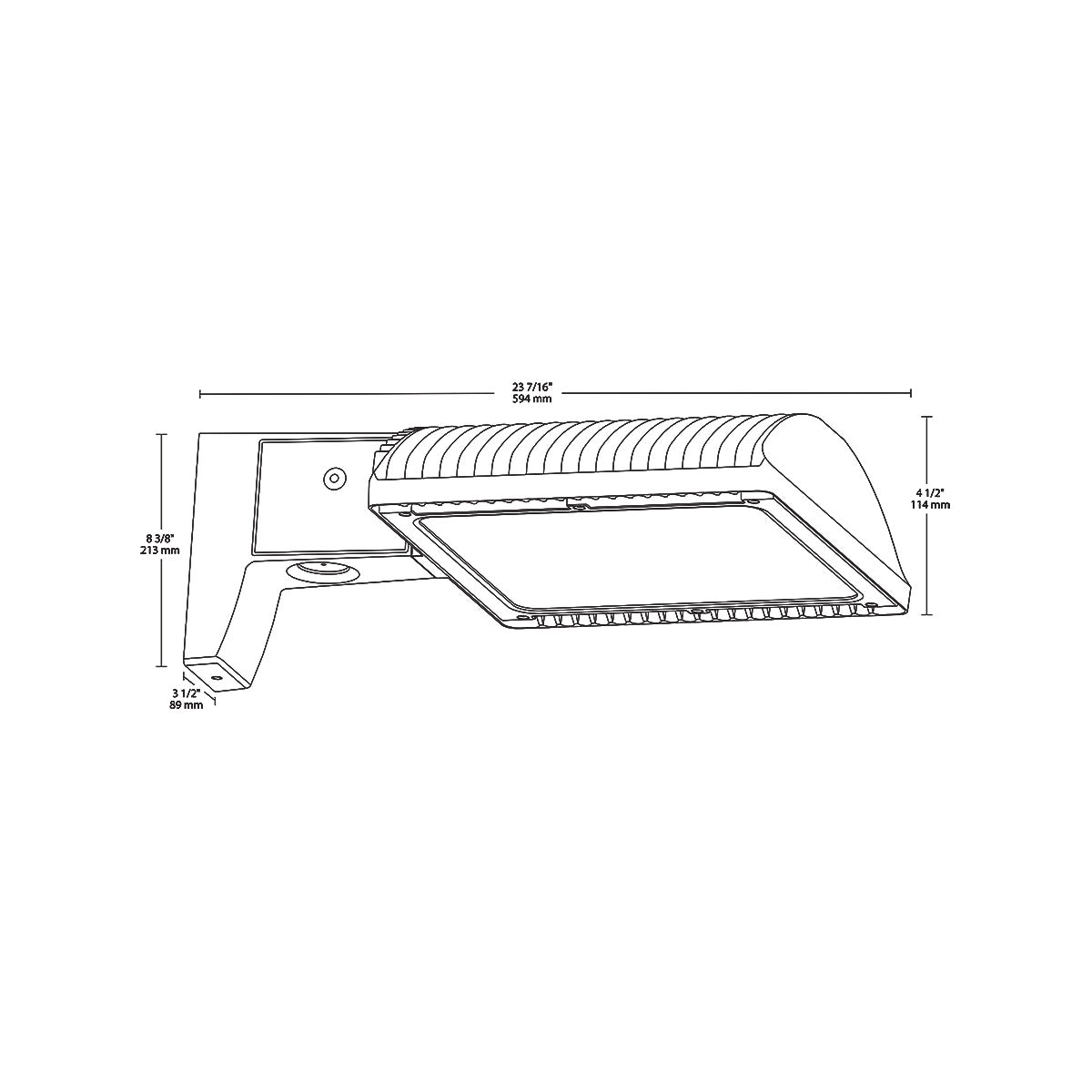

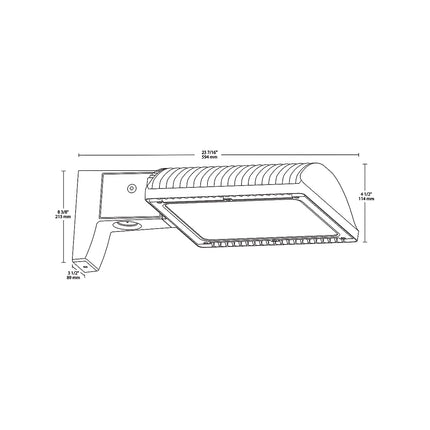

- Dimensions: 23 7/16" (W) x 8 3/8" (H) x 4 1/2" (D)
Features
- Energy-efficient LED technology providing 66% energy cost savings compared to HID
- Long-lasting performance with a 100,000-hour LED lifespan
- Superior thermal management with external airflow fins for heat dissipation
- Universal mounting arm compatible with hole spacing from 1" to 5 1/2" center to center
- Specular vacuum-metallized polycarbonate reflector for optimized light distribution
- High-temperature silicone gaskets ensure durability and weather resistance
- Mercury and UV free; RoHS-compliant components supporting green technology
- Listed for wet locations and DLC qualified for utility rebates
- Equivalency to 250W metal halide fixtures
- 5-year warranty covering light output, color stability, driver performance, and finish
