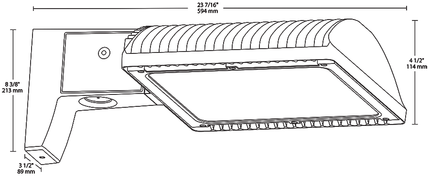

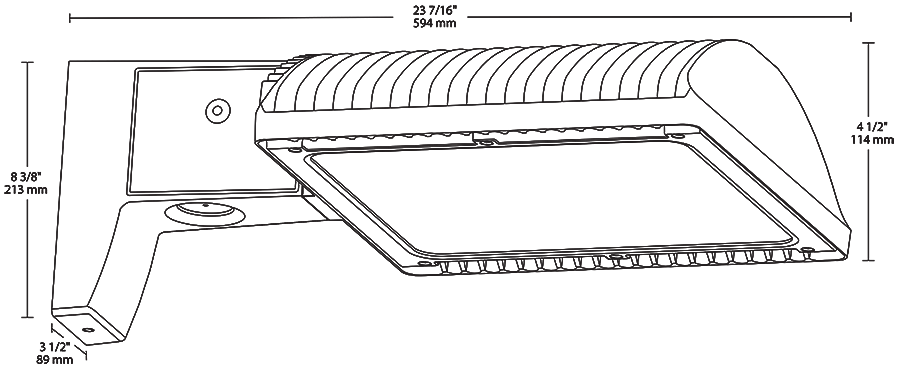

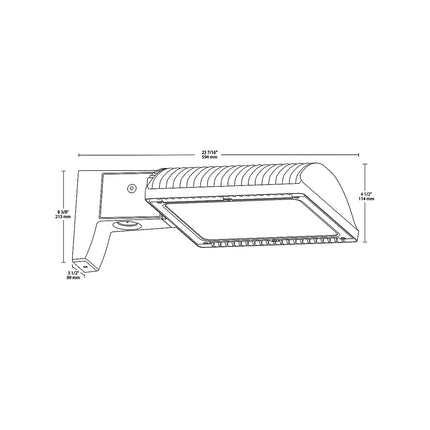

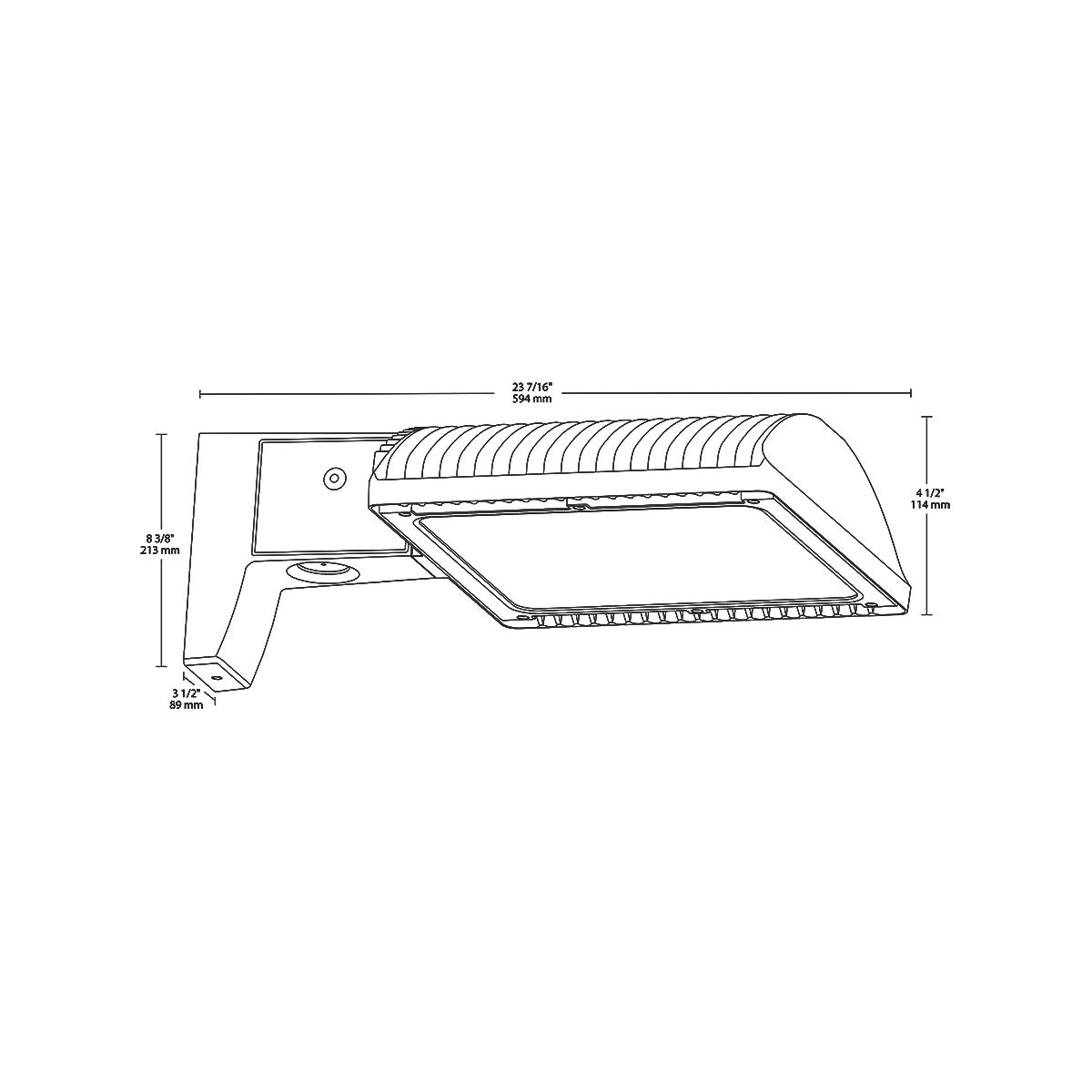

ALED3T78 LED Area Light by RAB

The ALED3T78 is a high-performance LED area light designed for roadway, general parking, and other outdoor area lighting applications. It features a Type III distribution ideal for projecting light outward to cover larger spaces efficiently. This fixture is suitable for electrical distributors and lighting solutions providers seeking reliable, energy-efficient outdoor lighting with durable construction and advanced thermal management. Its universal mounting arm and compatibility with various pole mounting options make it a versatile choice for switchgear suppliers and wire and cable installers.

Specifications

• Manufacturer: RAB
• Model Number: ALED3T78
• Input Wattage: 77 watts
• Lumens: 9,263 lumens
• Efficacy: 120 lumens per watt
• Color Temperature: 5000 kelvins (Cool)
• Color Accuracy: 71 CRI
• LED Lifespan: 100,000 hours (L70)
• Lens Material: Tempered Glass
• Ambient Temperature Rating: Up to 104°F (40°C)
• Minimum Starting Temperature: -40°C (-40°F)
• IP Rating: IP66 (dust and water resistant)
• Housing Material: Die-cast aluminum housing, lens frame, and mounting arm
• Mounting: Universal mounting arm compatible with hole spacing from 1" to 5 1/2" center-to-center; includes round pole adaptor plate
• IES Classification: Type III distribution
• Weight: 36.6 lbs

Features

• Superior heat sinking with external air-flow fins for effective thermal management
• Specular vacuum-metallized polycarbonate reflector for optimized light distribution
• High-temperature silicone gaskets for enhanced durability and weather resistance
• DLC Listed and UL Listed for wet locations, eligible for utility rebates
• Constant current driver with universal voltage operation (120-277V)
• Mercury and UV free, RoHS-compliant components for green technology compliance
• Easy installation with universal arm and pole mounting options (square and round poles)
• Equivalency to 250W Metal Halide with 66% energy savings
• 5-year warranty covering light output, color stability, driver performance, and fixture finish
