Description

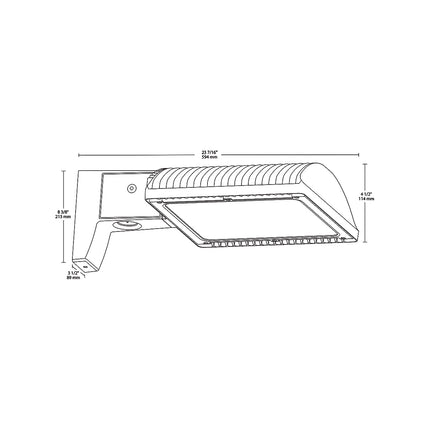

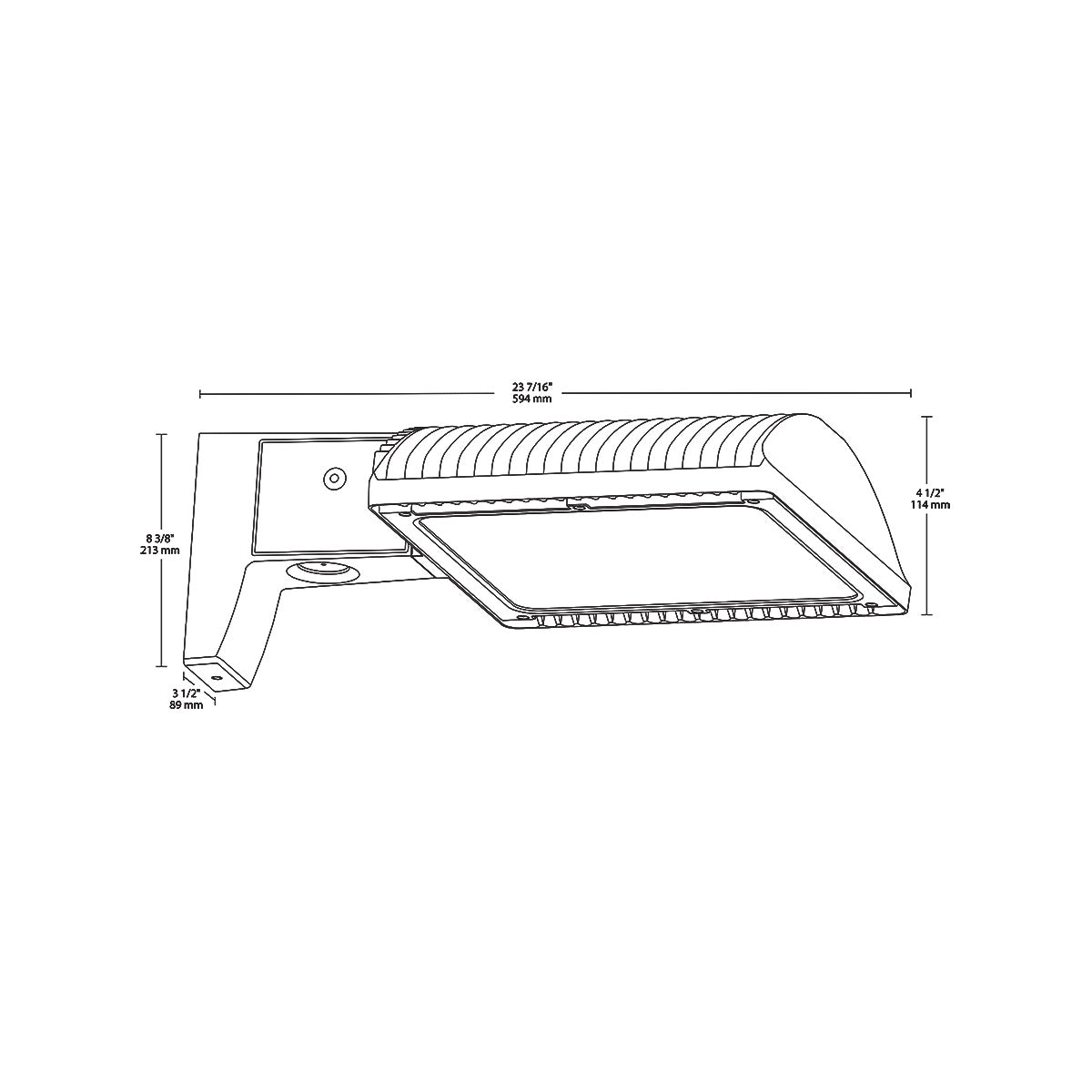

ALED2T78NRG/D10 LED Area Light by RAB
The ALED2T78NRG/D10 is a high-efficiency LED area light designed for outdoor lighting applications such as walkways, entrance roadways, bike paths, and smaller side streets. Manufactured by RAB, this fixture offers superior energy savings and durability, making it suitable for electrical distributors and lighting solution providers seeking reliable, long-lasting outdoor lighting. It features a universal mounting arm compatible with various pole configurations, ideal for wire and cable installations in outdoor environments. The fixture is UL listed for wet locations and complies with DLC standards, ensuring quality and eligibility for rebates.
Specifications
- Input Wattage: 77 watts
- Lumens: 9,220 lumens
- Efficacy: 119 lumens per watt
- Color Temperature: 4000 kelvins (Neutral)
- Color Accuracy: 72 CRI
- Product Weight: 32.0 lbs
- Lens Material: Tempered Glass
- Ambient Temperature: Suitable for use up to 104°F (40°C)
- Minimum Starting Temperature: -40°C (-40°F)
- Driver Type: Constant Current, Class 2, 2000mA, 100-277V, 50-60Hz
- Dimming: 0-10V dimming capable, dims down to 10%
- Surge Protection: 4kV
- Power Factor: 99.5% at 120V, 93.6% at 277V
- IES Classification: Type II distribution for wide walkways and roadways
- IP Rating: IP66 for dust and water ingress protection
- Housing: Die-cast aluminum with high-durability finish
- Reflector: Specular vacuum-metallized polycarbonate
- Gaskets: High-temperature silicone
- Lifespan: 100,000 hours (L70)
- Equivalency: Equivalent to 250W Metal Halide
- BUG Rating: B1 U0 G2
Features
- 66% energy cost savings compared to HID lighting
- Universal mounting arm with round pole adaptor included
- Superior thermal management with external air-flow fins
- Consistent color with 3-step MacAdam Ellipse binning
- Mercury and UV free; RoHS-compliant components
- 5-year warranty covering light output, color stability, driver performance, and fixture finish
- Suitable for wet locations and outdoor environments
