ALED2T78 LED Area Light by RAB Lighting

The ALED2T78 is a high-performance LED area light designed for outdoor lighting applications including walkways, ramps, entrance roadways, and bike paths. It offers efficient illumination with a Type II distribution, suitable for wide and long narrow lighting areas. This product is ideal for electrical distributors and lighting solutions providers seeking durable, energy-efficient fixtures for commercial and municipal installations.

Specifications

• Manufacturer: RAB
• Input Wattage: 77 watts
• Lumens: 10,157 lumens
• Efficacy: 131 lumens per watt
• Color Temperature: 5000 kelvins (Cool)
• Color Accuracy: 71 CRI
• Lens Material: Tempered Glass
• Ambient Temperature Rating: Up to 104°F (40°C)
• Minimum Starting Temperature: -40°C (-40°F)
• Weight: 36.2 lbs
• IP Rating: IP66 for dust and water protection
• LED Lifespan: 100,000 hours
• Driver Type: Constant Current, Class 2, 100-277V, 50-60Hz
• Electrical Surge Protection: 4kV
• Power Factor: 99.5% at 120V, 93.6% at 277V
• THD: 5.0% at 120V, 12.3% at 277V
• Equivalent to 250W Metal Halide

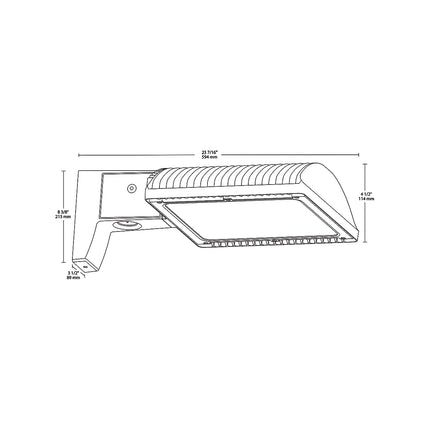

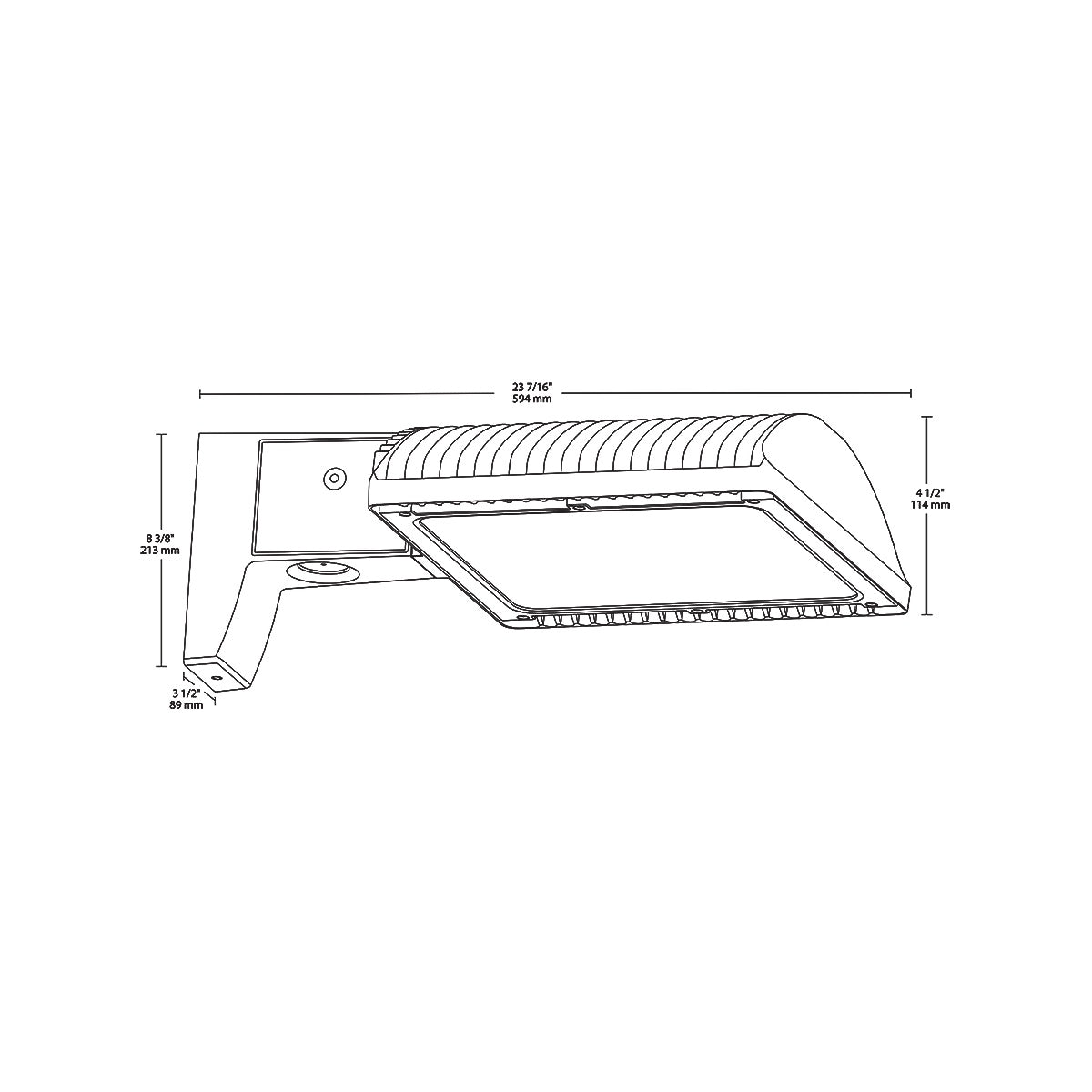

• Dimensions: 23 7/16" length x 8 3/8" height x 4 1/2" depth

Features

• Type II optical distribution for wide walkways and roadways
• Die-cast aluminum housing, lens frame, and mounting arm for durability
• Specular vacuum-metallized polycarbonate reflector
• High-temperature silicone gaskets for weather sealing
• Superior thermal management with external air-flow fins
• Universal mounting arm compatible with pole diameters greater than 4 inches
• Mercury and UV free, RoHS-compliant components
• 5-year warranty covering light output, color stability, driver performance, and finish
• Buy American Act (BAA) compliant option available
• 66% energy cost savings compared to HID lighting
