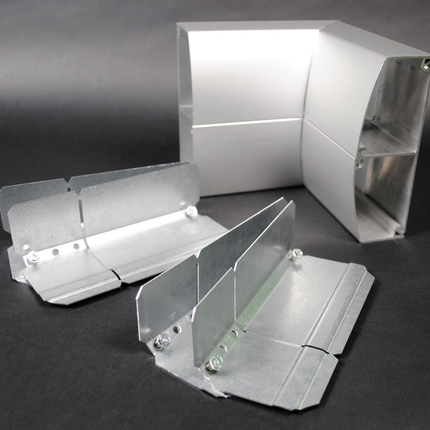

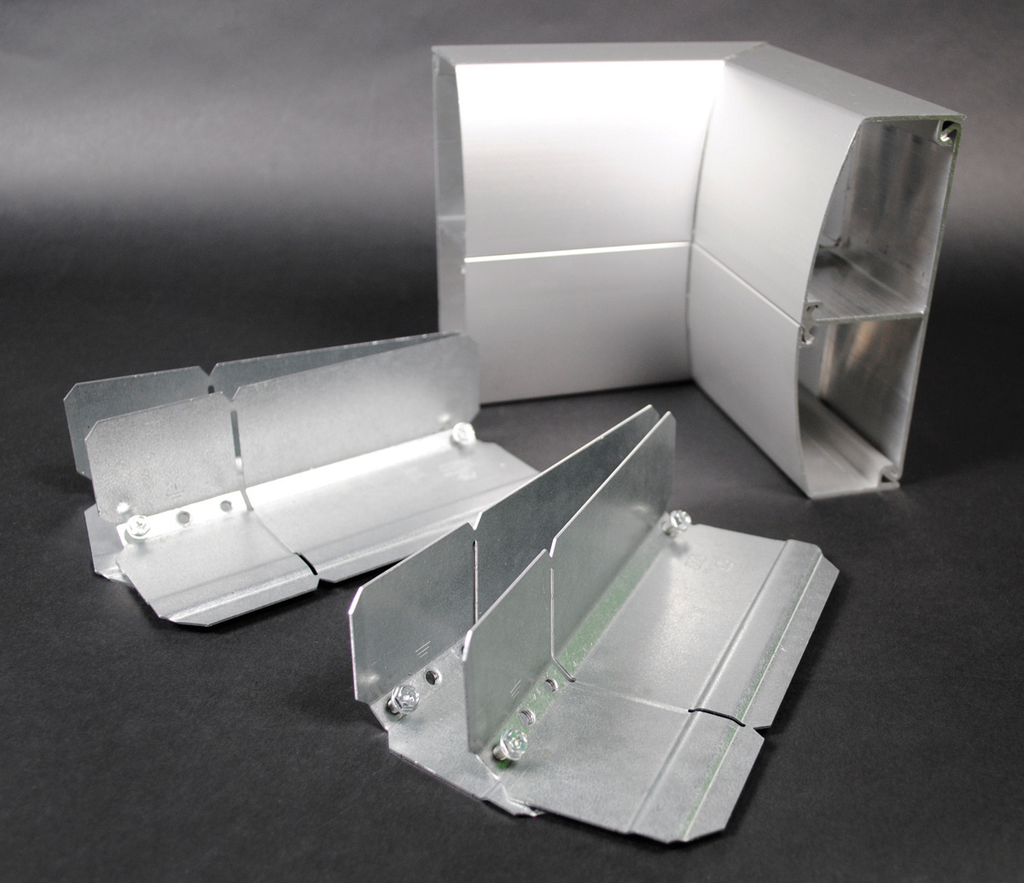

ALDS4000 Internal Elbow Fitting – Aluminum Raceway Fitting

The ALDS4000 Internal Elbow Fitting by Wiremold is a precision-engineered aluminum raceway fitting designed for use in high-capacity metal raceway systems. It provides a 90° internal corner solution compatible with the ALDS4000 Series Aluminum Raceway base and cover. This fitting is ideal for commercial, institutional, and industrial applications requiring durable and efficient wire and cable management. As part of the ALDS4000 Series, it supports dual service wiring with full isolation of power and data channels, accommodating increased wiring capacity and streamlined installation.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: ALDS4017
• Product Weight: 2.74 lbs
• Country of Origin: Mexico
• Material: Aluminum with satin anodized finish
• Dimensions: 6" x 6" x 2 1/8" (152mm x 152mm x 54mm)
• Compatible Raceway: ALDS4000 Series Aluminum Raceway

Features

• 90° internal elbow fitting for new lay-in or pull-through installations
• Part of the ALDS4000 Series, providing 1/3 more wiring capacity than conventional box-style raceways
• Dual service aluminum raceway fitting with twin covers and built-in divider for full isolation of services
• Durable satin anodized finish resists corrosion and fading
• Designed for easy installation with included adjust-to-fit couplings for lateral adjustment
• Maintains generous bend radius to support larger Cat 6a cables and fiber optic cables
• Compatible with industry-standard wiring, data, and communication devices and device plates
• Meets or exceeds UL, NEC, NEMA, and EIA/TIA standards
