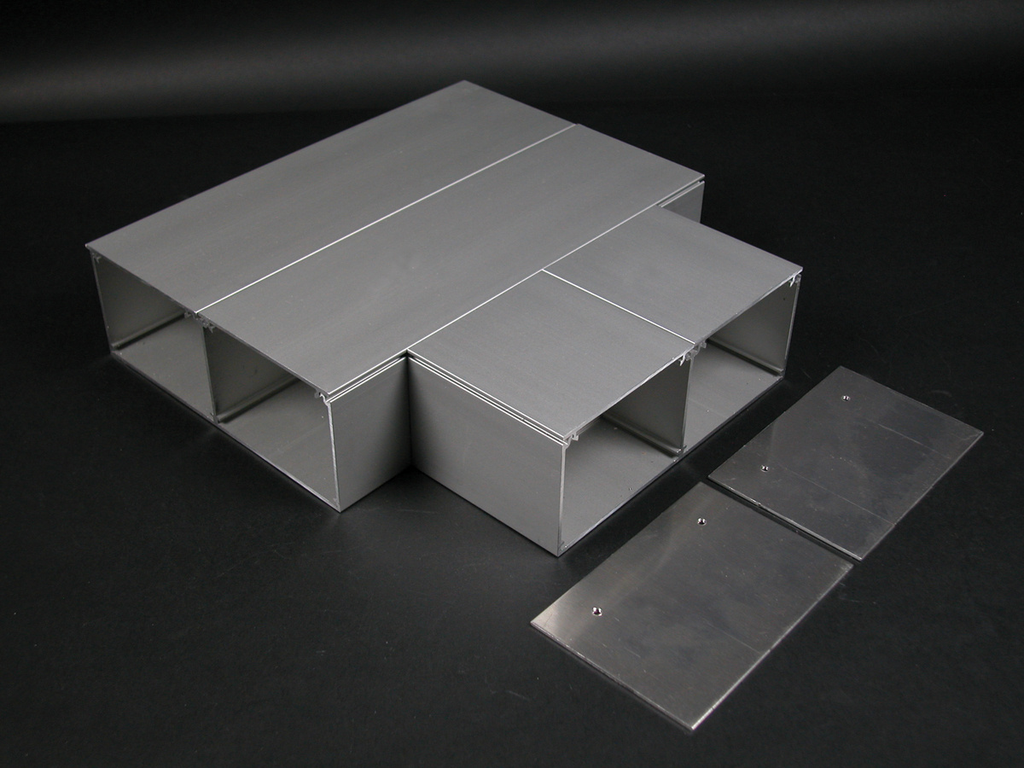

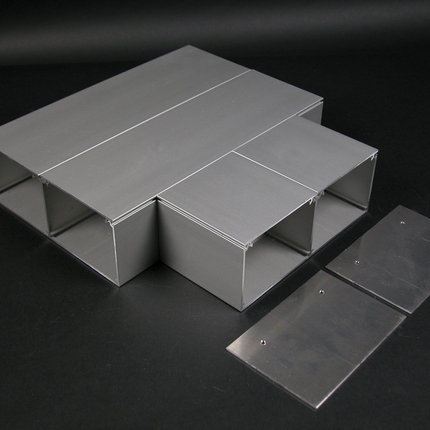

ALA4800 Tee Fitting Aluminum Raceway

The ALA4800 Tee Fitting is a component of the Wiremold ALA4800 Series Isoduct™ Aluminum Raceway system, designed for commercial electrical distribution and communication wiring management. It provides a durable and effective method for consolidating power and communications cabling in environments such as laboratories, healthcare facilities, and upscale offices. This two-channel, dual-cover aluminum raceway fitting allows for branch connections of two runs of ALA4800 Series Raceway, facilitating organized routing of power and data cables with access to each channel individually.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: ALA4815
• Product Weight: 1.59 lbs
• Dimensions: 9.0 in (Length) x 9.0 in (Width)
• Material: Aluminum
• Finish: Architectural clear anodized (standard for ALA4800 Series)
• Country of Origin: Mexico
• UPC: 786776523737

Features

• Two-channel, dual-cover design for simultaneous power and communication cabling.
• Facilitates branch connections of two raceway runs for flexible wiring layouts.
• Snap-fit covers provide easy access to wiring channels while maintaining a clean architectural appearance.
• Durable aluminum construction with clear anodized finish for corrosion resistance and easy maintenance.
• Compatible with standard electrical wiring devices including outlets, GFCI, surge protection, and data connectivity inserts.
• Includes six (6) ALA01 couplings for secure connection to adjoining raceway sections.
• Meets UL and NEC requirements for commercial raceway and fittings.

Downloads & Links

• ALA4800 Raceway BIM
• ALA4800 Series Isoduct Aluminum Raceway
• Large Aluminum Raceway - ALA4800
• Spec Sheet
• Wiremold¬Æ Two-Piece Large Single & Dual-Channel Aluminum Raceway Systems With Plastic Radius Inserts
