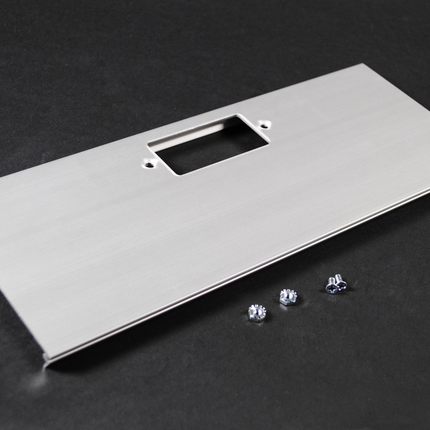

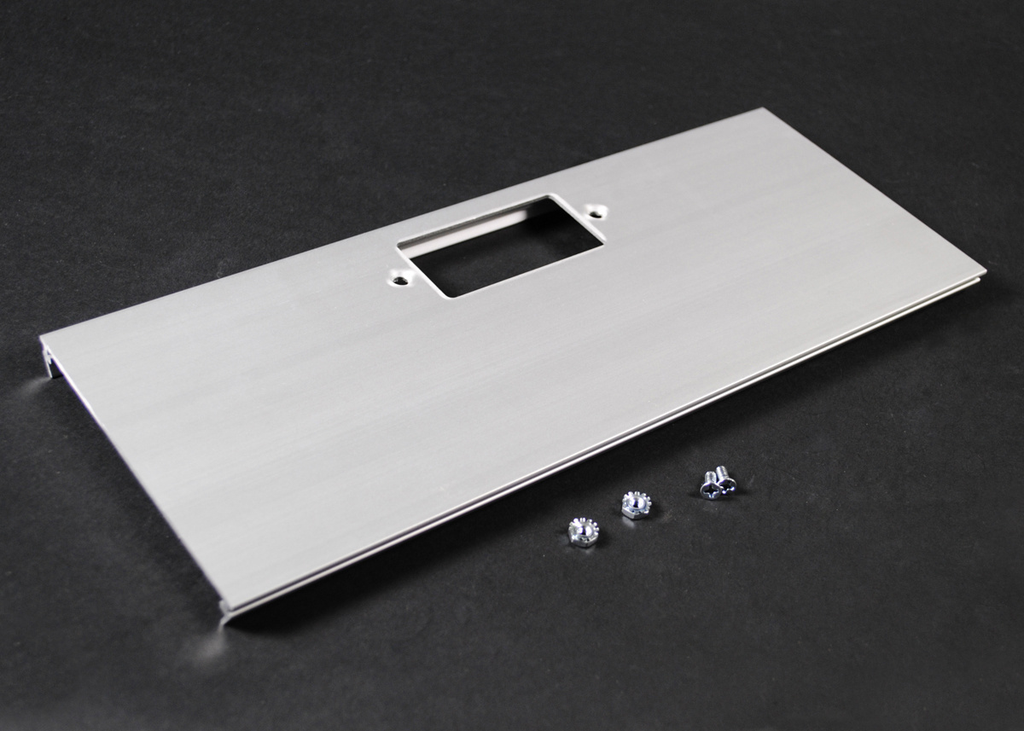

AL5200 Large Multi-Channel Raceway GFCI Device Cover Plate - Aluminum Raceway

The AL5200 Large Multi-Channel Raceway GFCI Device Cover Plate by Wiremold is part of the AL5200 Series Aluminum Raceway system designed for clean and attractive wire and cable management. This cover plate integrates seamlessly into casework, lab furniture, or baseboard installations, providing an aesthetic solution for distributing power and communication wiring. Suitable for commercial offices, laboratories, and healthcare facilities, it supports the electrical distributor and switchgear supplier needs for organized wiring in contemporary spaces.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: AL5246-G
• Dimensions: 12.0 in (Length) x 4.875 in (Width)
• Material: Aluminum
• Finish: Satin anodized
• Product Weight: 0.5060 lbs
• Country of Origin: Mexico
• UPC: 786776047004

Features

• Sleek, clean, and attractive design with a satin anodized finish for easy service and enhanced aesthetics
• Compatible with AL5200 Series raceway bases for multi-channel wiring configurations
• Designed to maintain a flush interior surface when installed with AL5200B base sections
• Supports distribution of communication and power wiring while preserving the decor
• Durable aluminum construction suitable for interior use in commercial and healthcare environments
