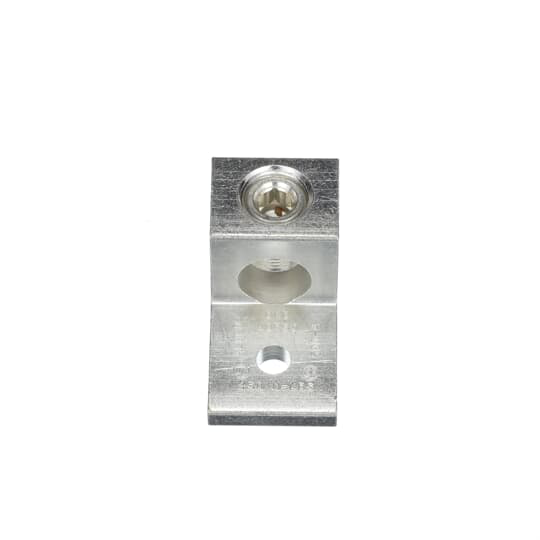

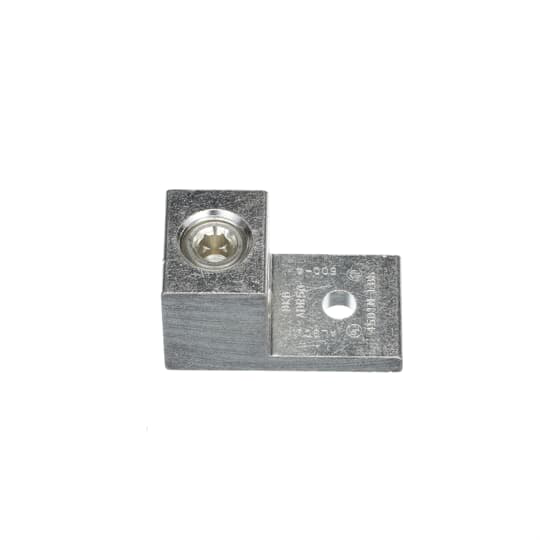

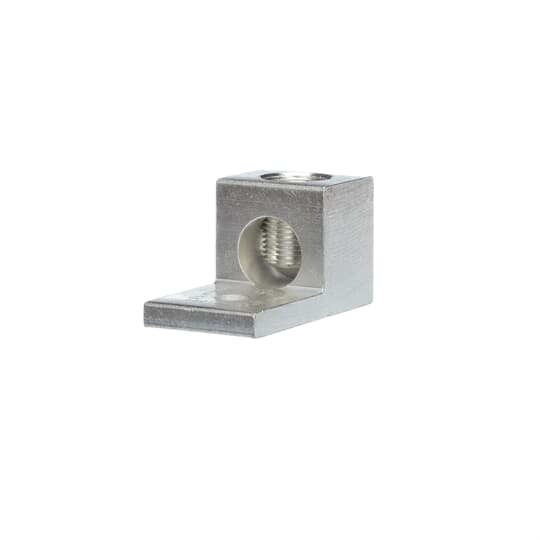

AL TP 1CNDTR 1HOLE MOUNT 4-500STR Mechanical Connector

This aluminum single-conductor mechanical connector is designed for use in electrical distribution and wire and cable installations. It features a one-hole mount and supports conductor ranges from 4 stranded to 500 kcmil. The connector is tin-plated for low contact resistance and uses a socket screw for secure fastening. Suitable for lighting solutions and switchgear supplier applications, it offers reliable conductivity and ease of installation without special tools.

Specifications

• Material: Aluminum
• Finish: Tin-Plated
• Number of Conductors: 1
• Number of Mounting Holes: 1
• Conductor Range: 4 Stranded to 500 kcmil
• Length: 2-13/16 Inches
• Width: 1-1/2 Inches
• Height: 1-9/16 Inches
• Insulation: None
• Product Weight: 18 lbs
• Screw Type: Socket Screw
• Manufacturer Part #: ADR50

Features

• All-aluminum body suitable for copper and aluminum conductors
• Tin plating reduces contact resistance
• “No-turn” rib design prevents connector loosening under vibration (as per product family design)
• Easy installation with no special tools required

Downloads & Links

• Spec Sheet
