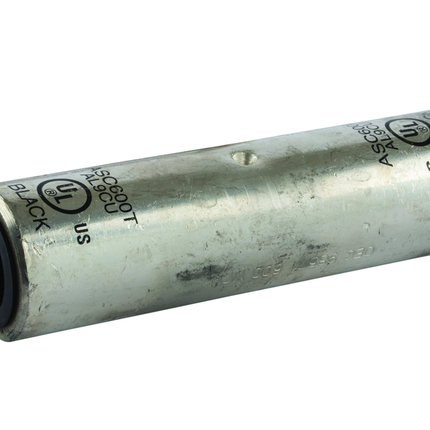

AL/CU CMP Splice 600 MCM
SKU: #303827
Part: #ASC600T
UPC: 662381032133
AL/CU CMP Splice 600 MCM
SKU: #303827
Part: #ASC600T
UPC: 662381032133
Next day delivery
Description

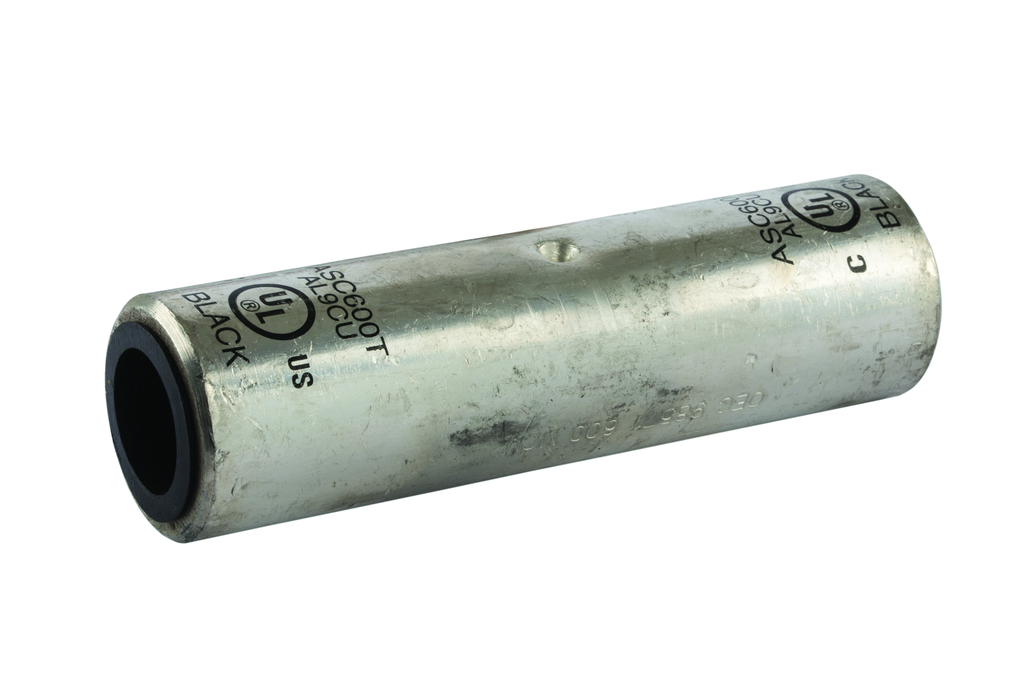

AL/CU CMP Splice 600 MCM – Aluminum Compression Connector
The AL/CU CMP Splice 600 MCM is a dual rated aluminum compression connector designed for terminating, splicing, and tapping power connectors in electrical distribution and wire and cable applications. It is suitable for electrical distributors and switchgear suppliers requiring reliable and corrosion-resistant splices for aluminum and copper conductors up to 600 MCM. This splice is pre-filled with oxide inhibitor and features a center stop to ensure proper cable installation, making it ideal for professional lighting solutions and power distribution systems.
Specifications
- Material: Aluminum
- Finish: Tin-Plated
- Color: Black
- Length: 5.13 inches
- Width: 1.44 inches
- Height: 1.44 inches
- Max. Temperature: 194 degrees Fahrenheit
- Application: Terminate, Splice, Tap Power Connectors
- Product Weight: 0.5150 lb
- Manufacturer: NSI Industries
- Manufacturer Part #: ASC600T
- Country of Origin: India
- Voltage Rating: 600V max (2000V max per UL486B)
- Temperature Rating: 90 °C (194 °F)
- UL Listings: cULus Listed for Wire Connector, UL486A/B Listed, UL Listed to 35kV when properly installed
Features
- Produced from high conductivity aluminum tubing
- Center stop assures proper cable installation
- Electro-tin plated for corrosion resistance
- Color coded and marked with die index information
- Pre-filled with oxide inhibitor and capped with color coded cap
- Listed for 35kV maximum when properly installed to cable manufacturer’s specifications
