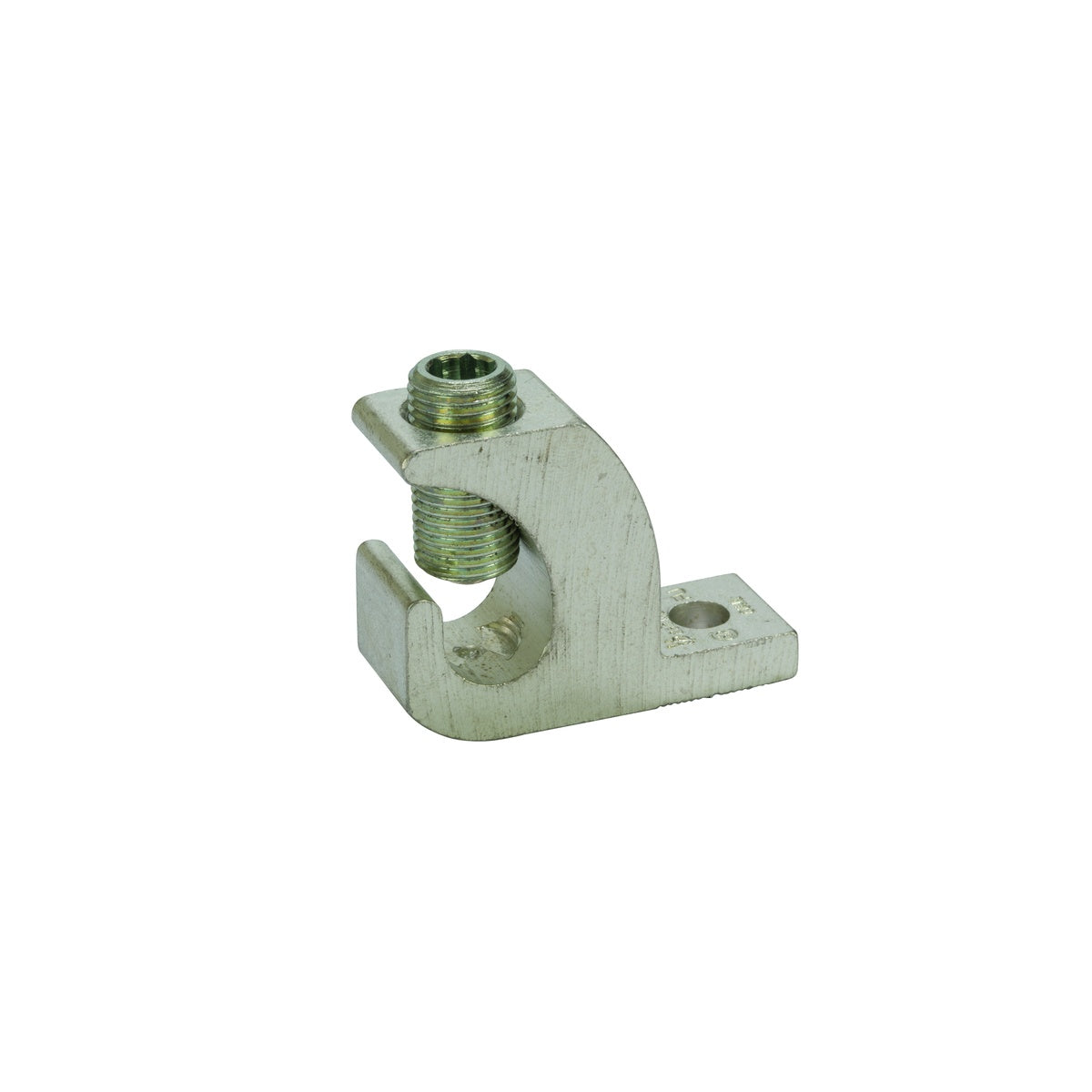

AL 250 MCM Lay In Connector
SKU: #304046
Part: #GLA-250
UPC: 662381001931
AL 250 MCM Lay In Connector
SKU: #304046
Part: #GLA-250
UPC: 662381001931
Description
AL 250 MCM Lay In Connector – Wire Termination Solutions
The AL 250 MCM Lay In Connector is designed for wire termination applications, providing reliable connections for grounding and continuous loop systems. Manufactured by NSI Industries, this connector supports both aluminum and copper conductors and is suitable for use in electrical distribution and switchgear assemblies.
Specifications
- Material: Aluminum
- Color: Aluminum
- Finish: Aluminum
- Application: Wire Termination
- Wire Type: AL/CU
- Number of Conductors: 1
- Number of Poles: 1
- Voltage Rating: 600V (2000V max per UL486B)
- Temperature Rating: 90 degrees Celsius
- Dimensions (L x W x H): 2.2 in x 0.8 in x 1.7 in
- Product Weight: 3.68 lbs
- Country of Origin: India
- Manufacturer Part #: GLA-250
Features
- Constructed from 6061T-6 aluminum alloy for durability
- Electro-tin plated to ensure low contact resistance
- Compatible with both copper and aluminum conductors
- UL 486A/B Listed for safety and compliance
- Ideal for grounding and continuous loop applications
