AHB124 Heating Cable – Pipe Freeze Protection

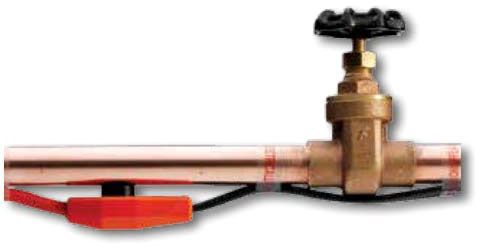

The EasyHeat™ AHB124 heating cable is an automatic electric water pipe heating cable designed to prevent freezing in metal and plastic water supply pipes. Suitable for residential and commercial applications, this pre-assembled, ready-to-install cable maintains water flow at ambient temperatures down to -40°F (-40°C). It features an integral energy-saving thermostat that activates and deactivates the cable as needed, ensuring efficient operation. This product is ideal for electrical distributors and lighting solutions providers offering wire and cable for pipe freeze protection.

Specifications

• Length: 24 Foot
• Power Rating: 168 Watts
• Pipe Diameter Compatibility: Up to 1-1/2 in (38.1 mm)
• Operating Voltage: 120 Vac (requires GFCI protection)
• Thermostat Activation Temperature: Turns on at +38°F (+3°C), off at +45°F (+7°C)
• Insulation: XLPE inner insulation with weather-resistant PVC outer jacket
• Product Weight: 1.11 lb
• Manufacturer: Easy Heat
• Manufacturer Part Number: AHB124

Features

• Pre-assembled and ready to install for quick deployment
• Integral energy-saving thermostat powers cable only when needed

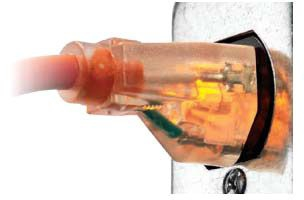

• Indicator light in plug confirms system power status
• Constant wattage cable rated at 7 Watts per foot
• Protects both metal and plastic water-filled pipes
• Durable construction with continuous ground braid for safety
• Compatible with standard 120 Vac GFCI-protected outlets
• UL Listed to Canadian Safety Standards and CSA Certified
