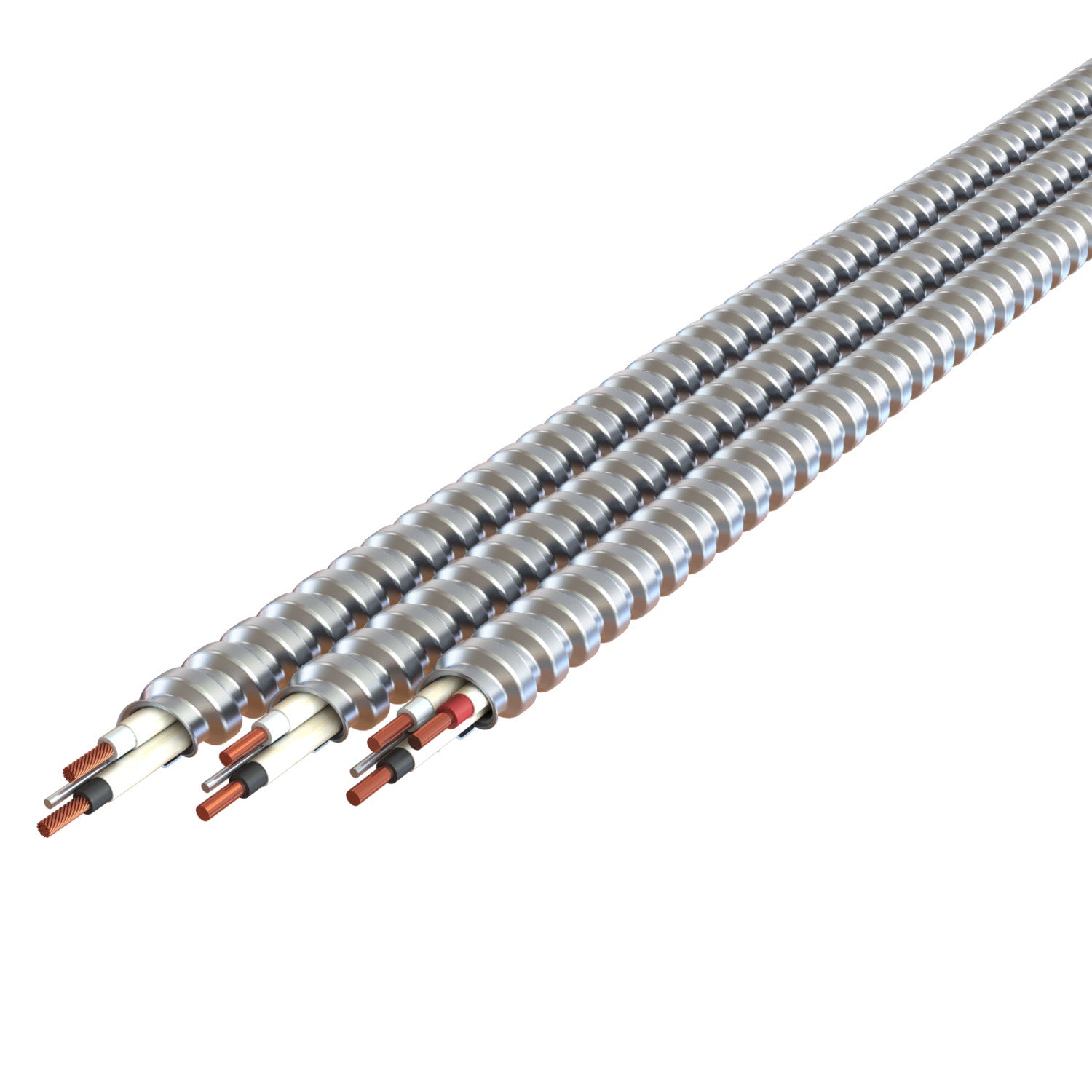

AFC CABLE 2708-60-00 10-3 AC LITE 1000FT REEL Armored Cable

This AFC Cable Systems 10-3 AC Lite armored cable is designed for electrical distribution and wiring applications requiring reliable protection and durability. It features interlocked aluminum strip armor over solid copper conductors insulated with moisture-resistant, fire-retardant THHN paper wrap. Suitable for use in lighting solutions, wire and cable installations, and as part of switchgear systems, this cable supports up to 600V maximum voltage rating and is UL and NEC compliant.

Specifications

• Manufacturer Part #: 2708-60-00
• Conductor Type: Solid Copper
• Conductor Insulation: THHN with moisture resistant fire retardant paper wrap
• Armor: Interlocked Aluminum Strip
• Maximum Temperature Rating: 90°C (Dry)
• Grounding: 16 AWG Integral Bond Wire/Armor Combination
• Neutral Conductor Color: White (120/208V)
• Maximum Voltage Rating: 600V
• Length: 1000 ft reel
• Approximate Weight: 187 lbs per 1000 ft
• Approximate Armor Outer Diameter: 0.610 in
• UPC: 077680121400

Features

• UL Classified for 1, 2, and 3 hour fire penetration
• Meets NEC® 250.118(8), 300.22(C), 392, 320, 645 requirements
• Cable tray rated for installation per NEC®
• RoHS compliant aluminum armored cable
• Made in USA with US and/or imported materials
• Suitable for environmental air handling spaces (plenum)
• Meets OSHA and HUD requirements

Downloads & Links

• Spec Sheet
