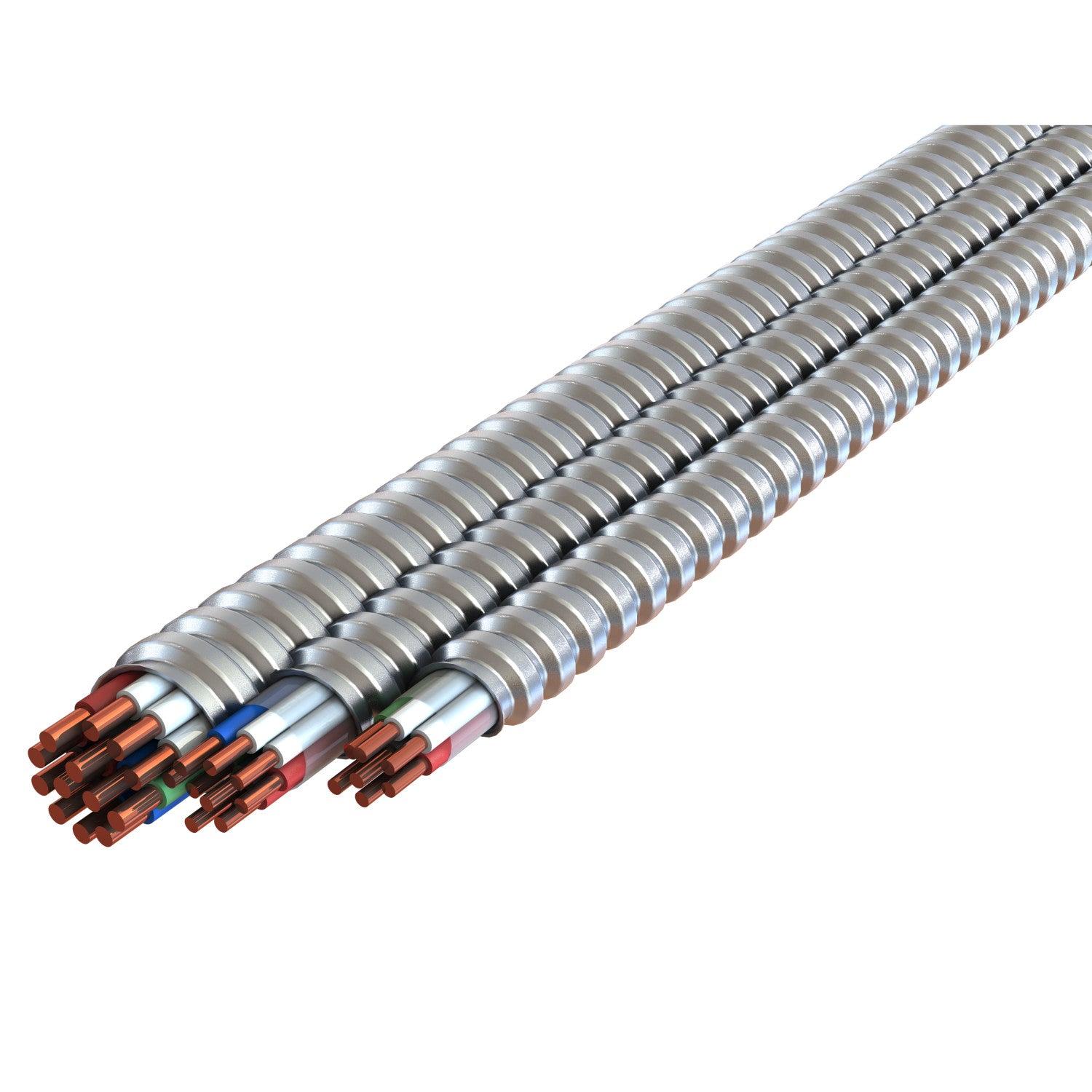

AFC CABLE 1911-60-00 10-6 HRC 1000FT REEL Metal Clad Cable

This AFC Cable Systems metal clad cable, model 1911-60-00, is designed for electrical distribution and wiring applications requiring durable, armored protection. It features solid copper conductors with THHN/THWN insulation, suitable for use in commercial and industrial lighting solutions, wire and cable installations, and switchgear supplier projects. The cable is rated for 600V maximum voltage and a maximum temperature of 90°C (dry), making it compliant with NEC and UL standards for safe and reliable electrical performance.

Specifications

• Manufacturer Part #: 1911-60-00
• Conductor Type: Solid Copper
• Conductor Insulation: THHN/THWN
• Armor: Interlocked Galvanized Steel Strip
• Assembly Covering: Polypropylene Tape
• Grounding: Insulated Green Grounding Conductor
• Maximum Voltage Rating: 600V
• Maximum Temperature Rating: 90¬∞C (Dry)
• Length: 1000 ft reel
• Approximate Weight: 415 lb per 1000 ft
• Approximate Armor Outer Diameter: 0.713 in
• UPC: 077680112767

Features

• UL Classified for 1, 2, and 3 hour fire penetration
• Meets NEC¬Æ requirements for cable tray and environmental air handling spaces (plenum)
• Made in USA from US and/or imported materials
• Polypropylene tape assembly for enhanced durability
• Interlocked galvanized steel armor provides mechanical protection

Downloads & Links

• Spec Sheet
