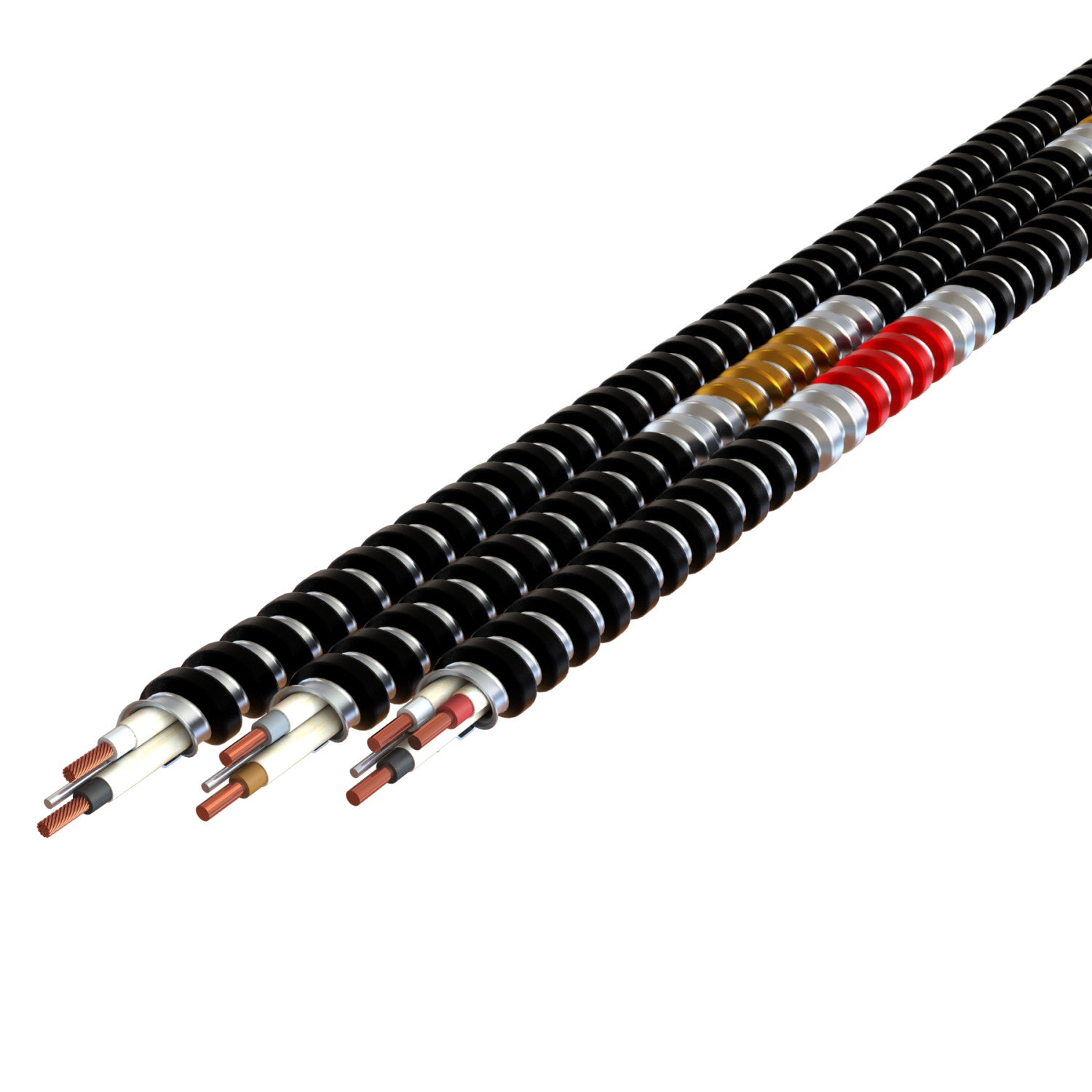

AFC CABLE 1405N60-00 12-3 AC-90 1000FT REEL Armored Cable

This AFC Cable Systems 1405N60-00 AC-90 armored cable is designed for use in electrical distribution and wiring installations requiring durable, steel-armored protection. It is suitable for applications involving wire and cable management in commercial and industrial settings, providing reliable electrical connectivity with enhanced mechanical protection. This product is relevant for electrical distributors and switchgear suppliers seeking high-quality armored cable solutions.

Specifications

• Manufacturer Part #: 1405N60-00
• Trade Size: 12-3 Solid Conductors (Black, Red, White)
• Length: 1000 ft Reel
• Approximate Weight: 235 lb per 1,000 ft
• Maximum Voltage Rating: 600V
• Maximum Temperature Rating: 90¬∞C (Dry) Type ACTHH
• Conductor Insulation: THHN
• Conductor Insulation Covering: Moisture Resistant Fire Retardant Paper Wrap
• Armor: Interlocked Galvanized Steel Strip (Black Striped) with ColorSpec¬Æ ID
• Grounding: 16 AWG Integral Bond Wire/Armor Combination
• Neutral Conductor Color: White (120/208V)
• UL Listings: UL 4, 83, 1479, 1581, 2556, File Reference E7330
• Compliance: NEC¬Æ 250.118(8), 300.22(C), 392, 320, 645; Federal Specification A-A-59544; OSHA and HUD requirements
• Cable Tray Rated per NEC¬Æ
• UL Classified 1, 2, and 3 hour through (Fire) penetration product, R14141
• Environmental Rating: NEC¬Æ 300.22(C) Air Handling Spaces (Plenum)
• Made in USA of US and/or imported materials

Features

• Solid copper conductors with THHN nylon thermoplastic insulation
• Moisture resistant, fire retardant paper wrap on each conductor
• Interlocked galvanized steel armor provides mechanical protection and grounding
• Color-coded conductors for easy identification
• Integral bonding strip for grounding continuity
• Suitable for use in cable trays and plenum spaces
• UL and NEC compliant for safety and regulatory adherence
