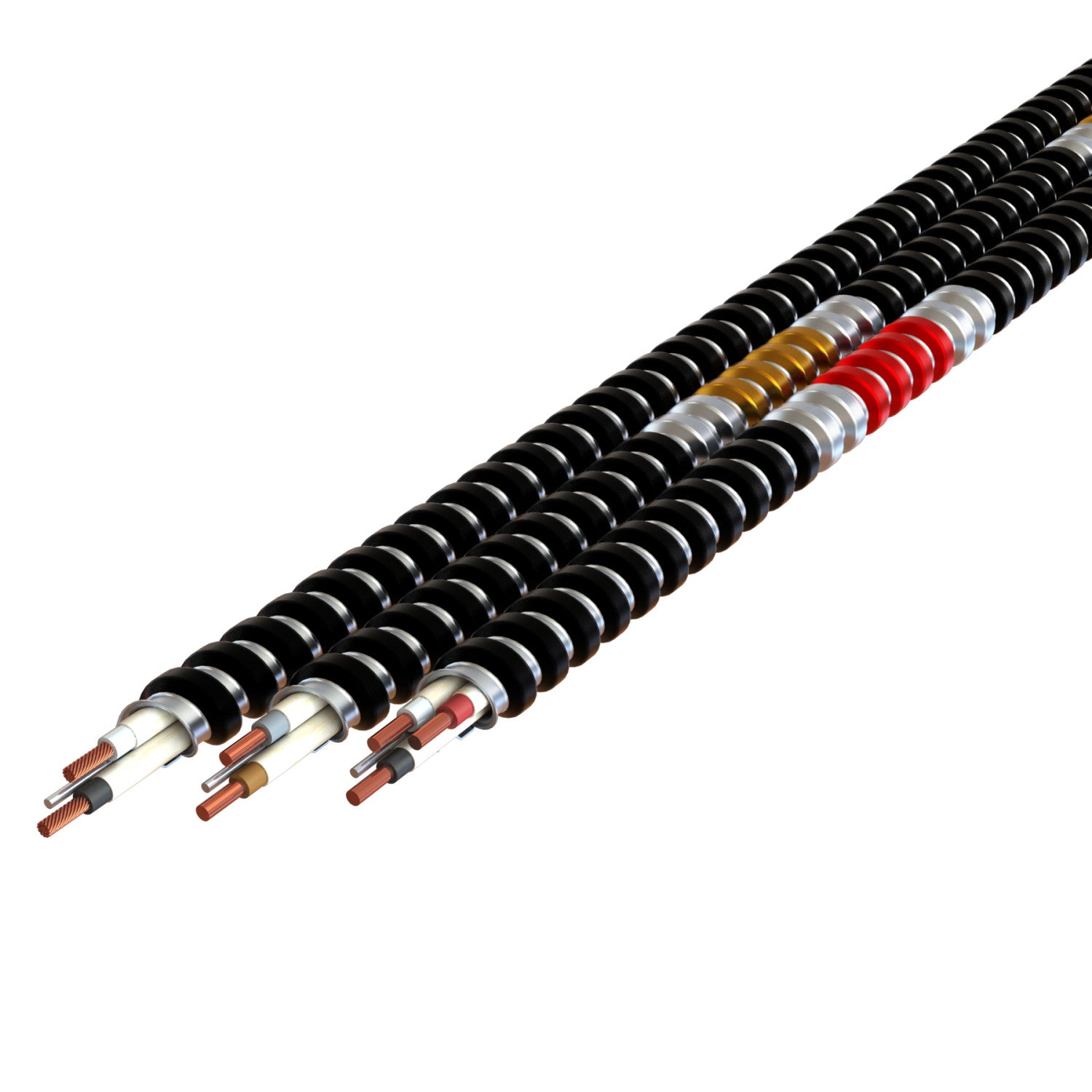

AFC CABLE 1404N60-00 12-2 AC-90 1000FT REEL Armored Cable

This AFC Cable Systems 1404N60-00 is a 12-2 solid conductor AC-90 type armored cable designed for electrical distribution and wiring applications. It features interlocked galvanized steel strip armor with ColorSpec® ID for easy identification and is suitable for use in commercial and industrial environments. This cable is ideal for electrical distributors and lighting solutions requiring durable wire and cable with reliable protection and performance.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part Number: 1404N60-00
• Conductor Type: Solid Copper
• Conductor Insulation: THHN
• Armor: Interlocked Galvanized Steel Strip (Black Striped) with ColorSpec® ID
• Conductor Insulation Covering: Moisture Resistant Fire Retardant Paper Wrap
• Maximum Temperature Rating: 90°C (Dry) Type ACTHH
• Grounding: 16 AWG Integral Bond Wire/Armor Combination
• Voltage Rating: 600V
• Neutral Conductor Color: White (120/208V)
• Length: 1000 ft Reel
• Approximate Weight: 201 lbs per 1000 ft
• Approximate Armor Outer Diameter: 0.514 in
• UPC: 077680201355

Features

• UL Listed and Classified for fire resistance and safety compliance
• Meets NEC® requirements for cable tray and environmental air handling spaces (plenum)
• Includes integral bonding strip for grounding continuity
• Color-coded conductors for easy identification
• Made in the USA with domestic and imported materials

Downloads & Links

• Spec Sheet
