AFC 7705-42-01 12-3 MC-QUIK BN OE G - MC-Quik Steel Armored Cable

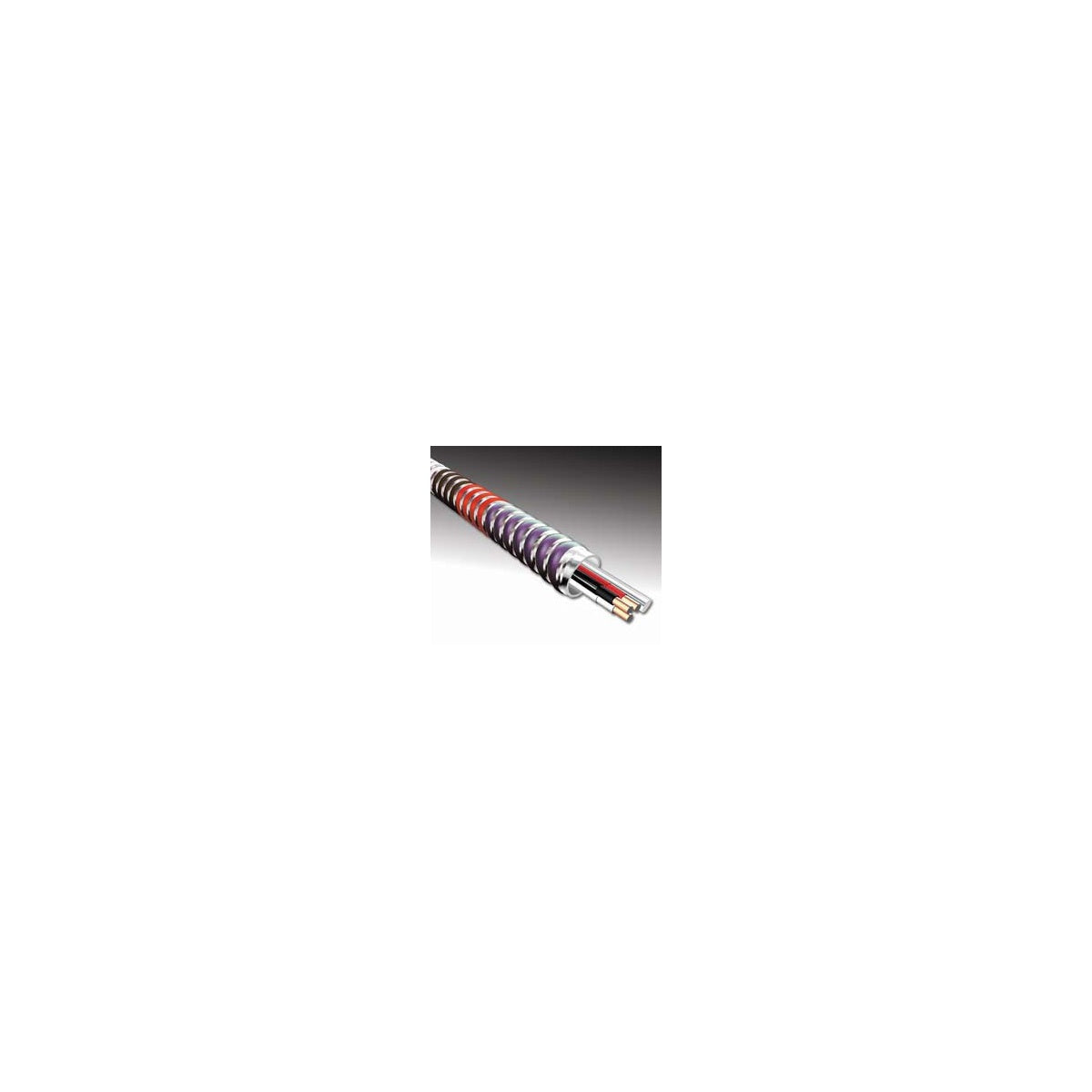

The AFC 7705-42-01 is a 12 AWG, 3-conductor solid copper MC-Quik steel armored cable designed for electrical distributors and lighting solutions requiring durable wire and cable products. Manufactured by AFC Cable Systems in the United States, this cable features interlocked galvanized steel strip armor with a protective polypropylene covering on each THHN insulated conductor. It is suitable for use in commercial and industrial applications requiring 600V maximum voltage rating and 90°C dry temperature rating, meeting NEC and UL standards for safety and performance.

Specifications

• Name: AFC 7705-42-01 12-3 MC-QUIK BN OE G
• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 7705-42-01
• Conductor Size: 12 AWG
• Number of Conductors: 3
• Conductor Material: Copper
• Length: 250 ft
• Product Weight: 39.75 lbs
• Country of Origin: United States
• Made in USA: Yes

Features

• Interlocked galvanized steel strip armor with purple stripe for durability and protection
• Type THHN copper conductors with protective polypropylene covering, no assembly tape
• Combined armor and full-sized aluminum ground/bond conductor for grounding per NEC 250.118(10)(b)
• Rated for 600V maximum voltage and 90°C dry temperature applications
• UL Classified for 1, 2, and 3 hour fire penetration resistance
• Meets NEC requirements for cable tray rating and environmental air handling spaces
• Suitable for surface mounting, fishing, or embedding in plaster
