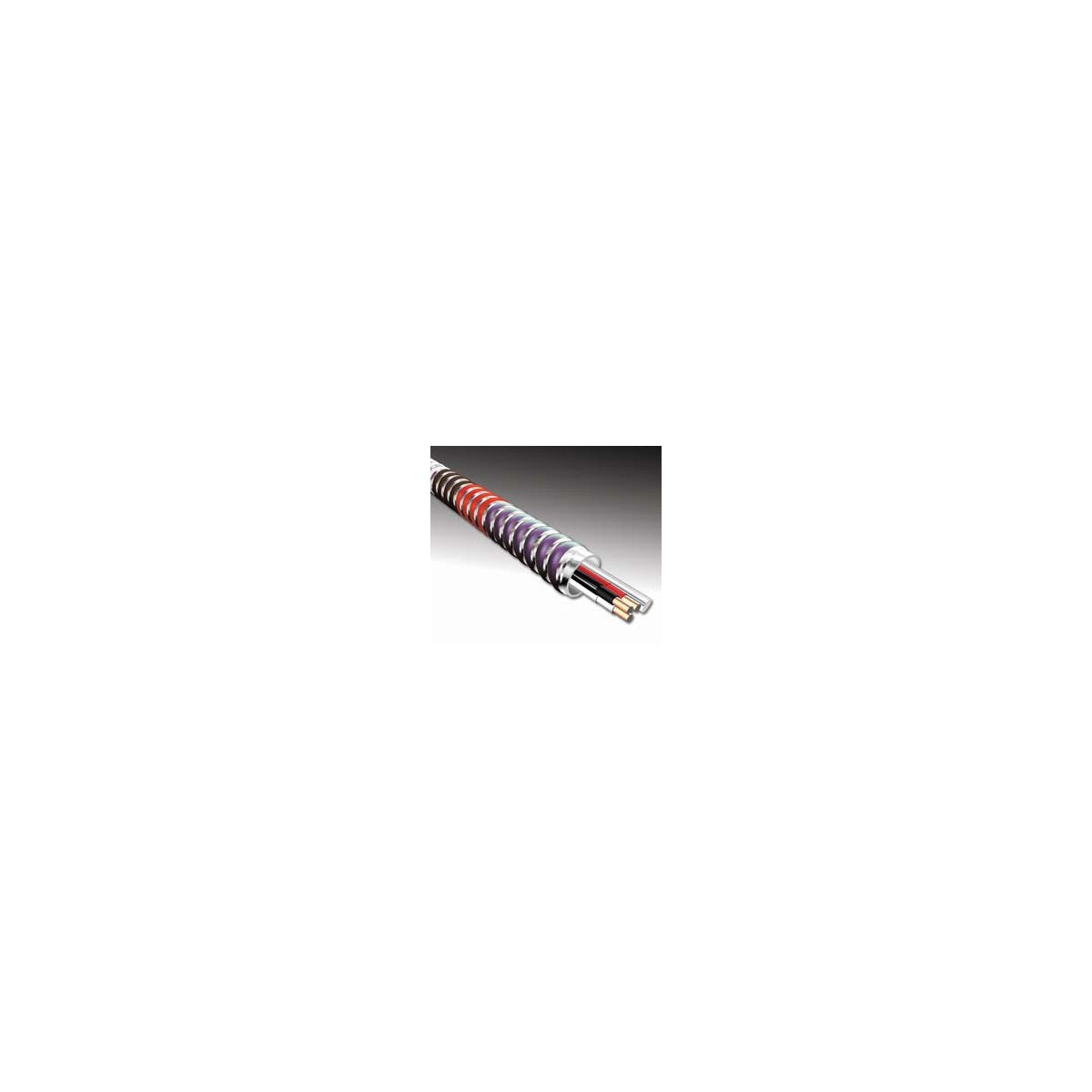

AFC 7704-60-01 12-2 MC-QUIK BN GY 1 Armored Cable

The AFC 7704-60-01 is a Type MCI-A MC-Quik® Steel Armored Cable designed for electrical distributors and lighting solutions requiring durable wire and cable rated for 600V applications. Manufactured by AFC Cable Systems in the United States, this cable features solid copper conductors with THHN insulation and a protective polypropylene cover, suitable for use in switchgear supplier environments and compliant with NEC and UL standards.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 7704-60-01
• Conductor Size: 12 AWG
• Number of Conductors: 2
• Conductor Material: Copper
• Length: 1000 ft
• Length Unit of Measure: ft
• Product Weight: 122 lbs (approximate per 1000 ft)
• Country of Origin: United States
• Made in USA: Yes
• Maximum Voltage Rating: 600V
• Armor: Interlocked Galvanized Steel Strip (Purple Striped)
• Conductor Insulation: Type THHN with Protective Polypropylene Covering
• Maximum Temperature Rating: 90°C (Dry)
• Grounding: Combined Armor and Full-Sized Aluminum Ground/Bond Conductor per NEC 250.118(10)(b)

Features

• UL Classified for 1, 2, and 3 hour fire penetration
• Meets UL 1569, 83, 1479, 1581, 2556 standards
• Complies with NEC codes including 330, 300.22(C), 230.43, 250.118, and others
• Suitable for surface mounting, fishing, or embedding in plaster
• Cable Tray Rated per NEC
• ColorSpec® ID System for conductor identification
• Patent protected design (U.S. Patent No. 8,088,997 B2 and No. 8,278,554 B2)
