AFC 7307-60-00 10-2/10-2/10-1/8-1 M MC-Stat® Lite Plus Cable

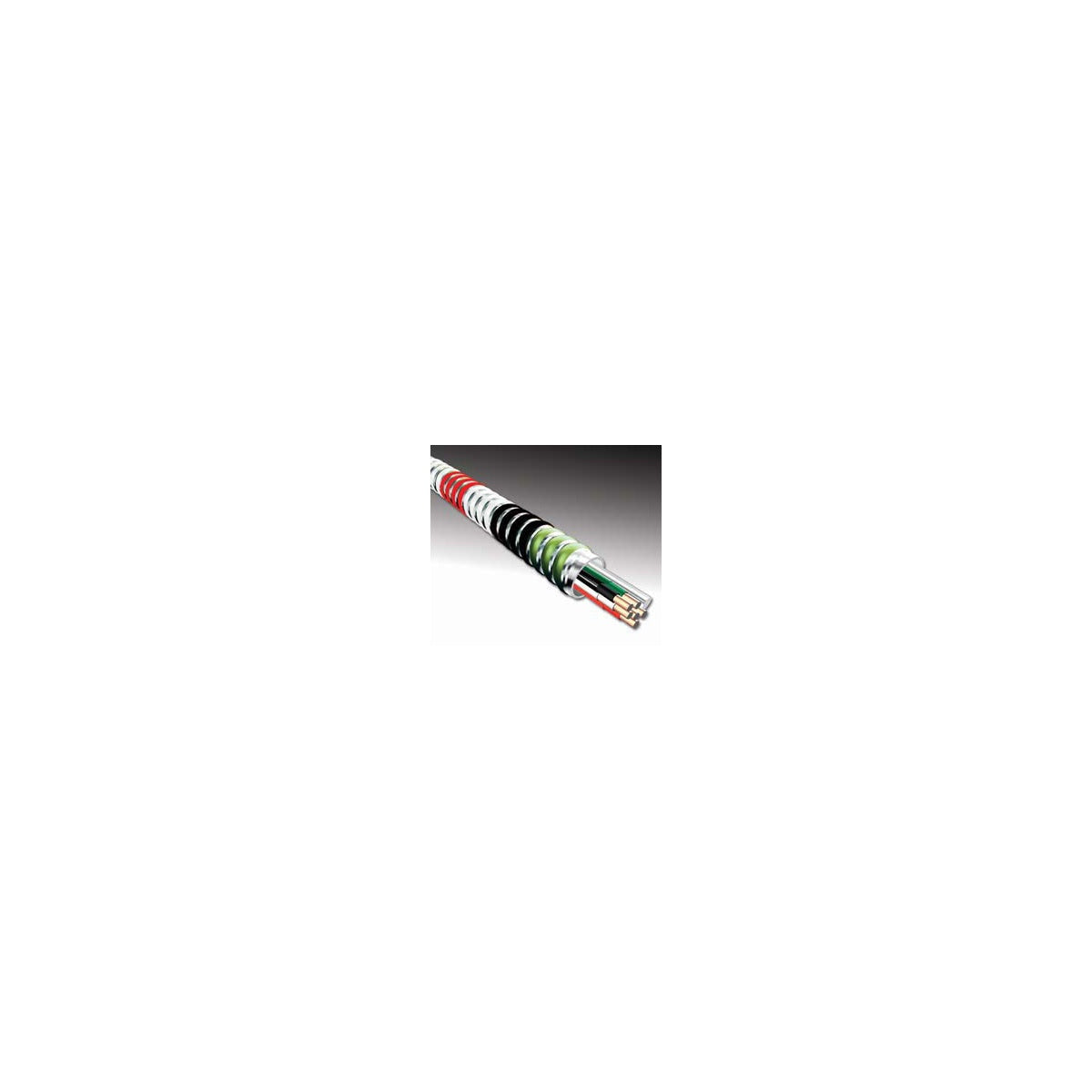

The AFC 7307-60-00 MC-Stat® Lite Plus Cable is a Type MCI-A interlocked armored cable designed for electrical distribution in commercial and healthcare applications. Manufactured by AFC Cable Systems in the USA, this cable features solid copper conductors with THHN insulation and a protective polypropylene covering, suitable for wiring systems requiring reliable grounding and mechanical protection. It is compatible with wire and cable installations requiring a switchgear supplier or electrical distributor for high-quality lighting solutions and power distribution.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 7307-60-00
• Conductor Material: Copper
• Number of Conductors: 4
• Product Weight: 302 lbs per 1,000 ft
• Country of Origin: United States
• Made in USA: Yes
• Maximum Voltage Rating: 600V
• Maximum Temperature Rating: 90¬∞C (Dry)
• Armor: Interlocked Aluminum Strip (Light Green Striped)
• Conductor Insulation: Type THHN with Protective Polypropylene Covering
• Grounding: Two grounding means including a full-sized aluminum ground conductor and a green insulated copper grounding conductor

Features

• UL Classified for 1, 2, and 3-hour fire penetration
• Meets NEC¬Æ requirements including 210.4(B), 300.22(C), 250.118, and others
• Cable tray rated and suitable for installation in environmental air handling spaces
• May be surface mounted, fished, or embedded in plaster
• Complies with OSHA and HUD regulations
• Use with an MCI-A listed connector
• U.S. Patent No. 8,088,997 B2

Downloads & Links

• Spec Sheet
