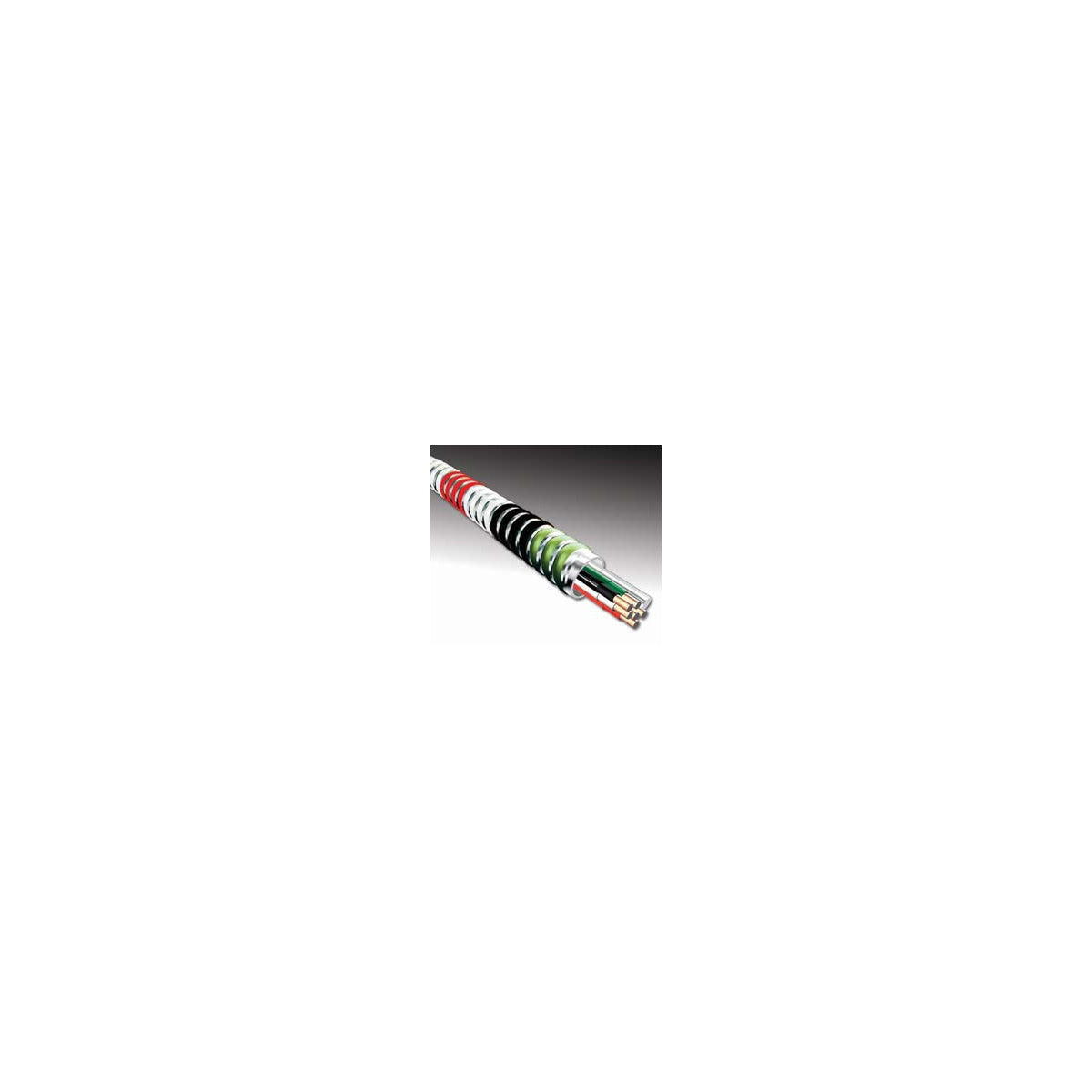

AFC 7305-60-00 12-3/12-3/12-1/10-1 MC-Stat® Lite Plus Cable

The AFC 7305-60-00 MC-Stat® Lite Plus Cable is a type MCI-A electrical cable designed for use in healthcare and other commercial applications requiring reliable wire and cable solutions. Manufactured by AFC Cable Systems in the United States, this cable features copper conductors with interlocked aluminum armor, providing mechanical protection and grounding. It is suitable for installation methods including surface mounting, fishing, and embedding in plaster, meeting applicable NEC and UL standards for safety and performance. This cable is ideal for electrical distributors and switchgear suppliers seeking durable, code-compliant wiring solutions.

Specifications

• Manufacturer Part #: 7305-60-00
• Conductor Material: Copper
• Number of Conductors: 6
• Armor: Interlocked Aluminum Strip (Light Green Striped)
• Conductor Insulation: Type THHN with Protective Polypropylene Covering
• Maximum Temperature Rating: 90¬∞C (Dry)
• Maximum Voltage Rating: 600V
• Grounding: Combined Armor Full-Sized Aluminum Ground Conductor and Full-Sized Green Insulated Copper Grounding Conductor
• Neutral Conductors: White 120/208V
• Approximate Weight: 258 lbs per 1,000 ft
• Approximate Armor Nominal Outer Diameter: 0.663 inches
• Made in USA

Features

• UL Classified for 1, 2, and 3 hour fire penetration protection
• Meets NEC requirements including 210.4(B), 330, 300.22(C), 250.118, and others
• Complies with OSHA and HUD regulations
• Cable tray rated and suitable for environmental air handling spaces
• May be surface mounted, fished, or embedded in plaster
• Includes two grounding means for enhanced safety
• Use with an MCI-A listed connector
• U.S. Patent No. 8,088,997 B2
