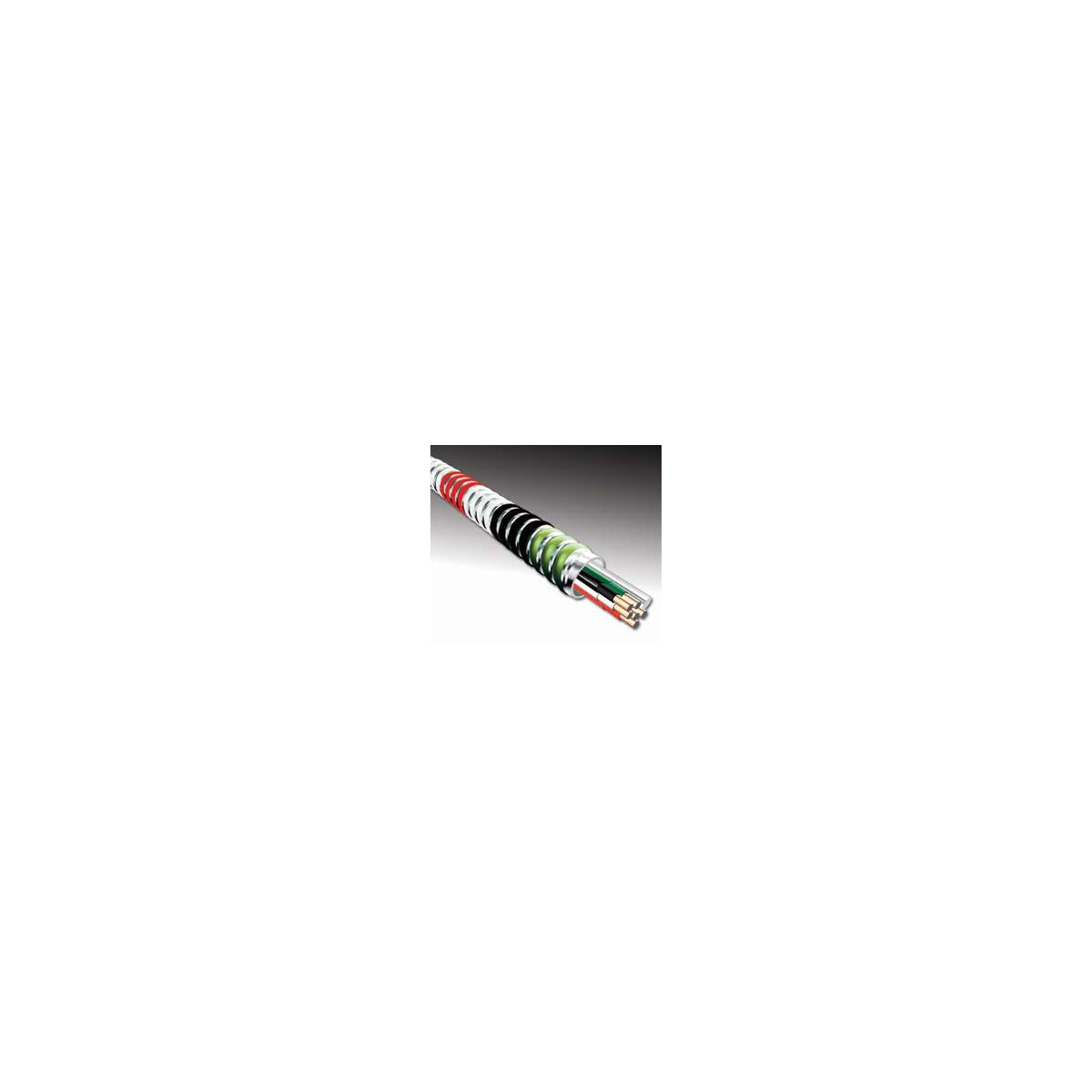

AFC 7008-60-00 10-3/10-3/10-1/8-1MC MC Cable

The AFC 7008-60-00 MC-Stat® Plus Steel Cable is a multi-conductor electrical cable designed for use in commercial and healthcare electrical installations. It features solid copper conductors with THHN insulation and a protective polypropylene covering on each conductor. The cable is armored with interlocked galvanized steel strip for mechanical protection and includes two grounding means to meet NEC and OSHA requirements. It is suitable for surface mounting, fishing, or embedding in plaster and is rated for 600V maximum voltage and 90°C dry temperature. This cable is made in the USA and is compliant with multiple UL standards and federal specifications, making it a reliable choice for electrical distributors and lighting solutions providers requiring durable, code-compliant wire and cable products.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 7008-60-00
• Number of Conductors: 6
• Conductor Material: Copper
• Product Weight: 540 lbs per 1,000 ft
• Maximum Voltage Rating: 600V
• Maximum Temperature Rating: 90°C (Dry)
• Armor: Interlocked Galvanized Steel Strip
• Conductor Insulation: Type THHN with Protective Polypropylene Covering
• Grounding: Combined Armor Full-Sized Aluminum Ground Conductor and Full-Sized Green Insulated Copper Grounding Conductor
• Country of Origin: United States
• UPC: 077680270986

Features

• UL Classified for 1, 2, and 3 hour fire penetration
• Meets NEC requirements for environmental air handling spaces and cable tray installations
• Suitable for surface mounting, fishing, or embedding in plaster
• Two grounding means for enhanced safety and code compliance
• Made in USA with US and/or imported materials
• Solid copper conductors ensure reliable electrical conductivity

Downloads & Links

• Spec Sheet
