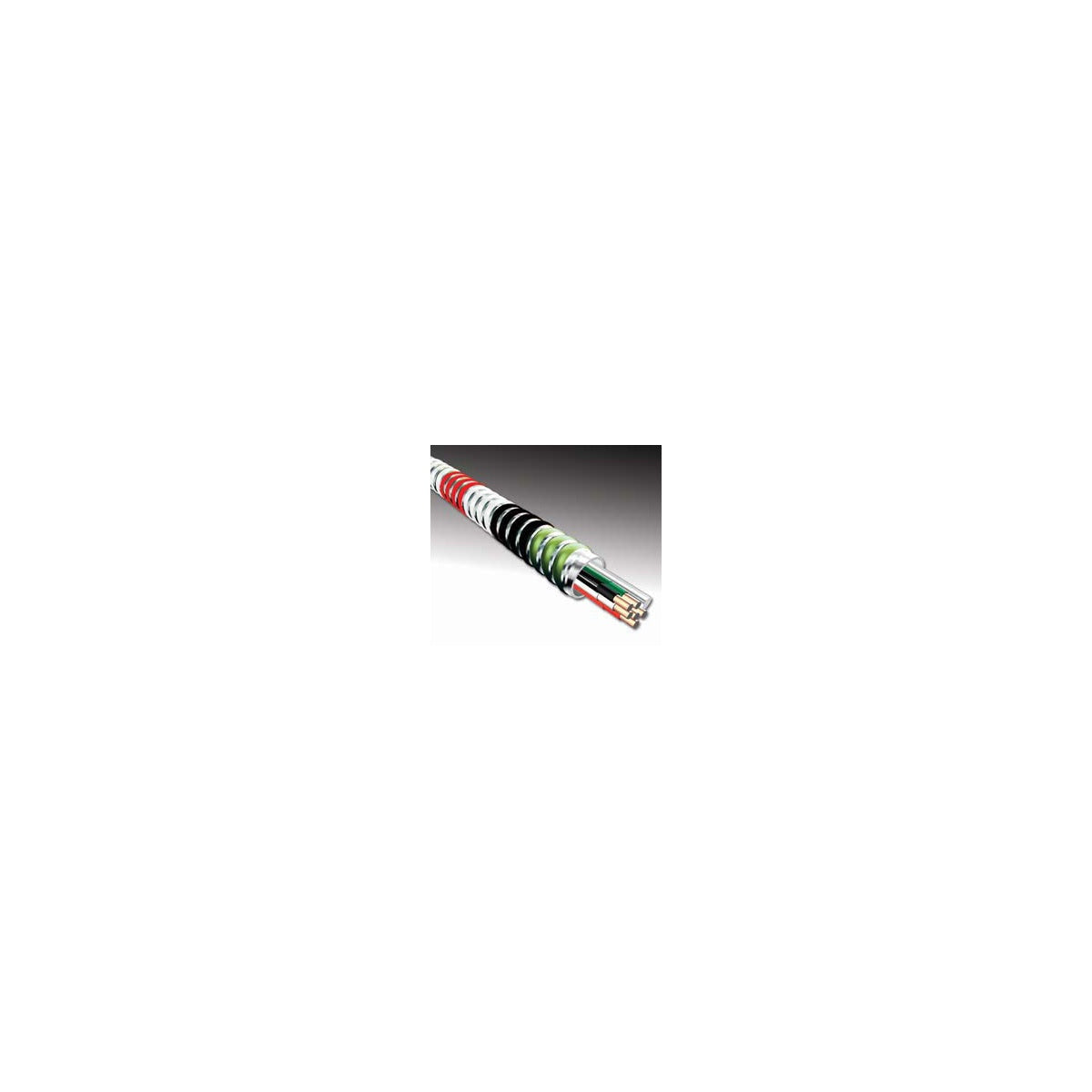

AFC 7005-60-00 12-3/12-3/12-1/10-1M MC-Stat® Plus Steel Cable

The AFC 7005-60-00 MC-Stat® Plus Steel Cable is a Type MCI-A cable designed for 120/208V electrical systems, suitable for use by electrical distributors and switchgear suppliers in commercial and healthcare lighting and power applications. This cable features interlocked galvanized steel armor and solid copper conductors with THHN insulation, providing durability and reliable performance in surface mounted, fished, or embedded installations.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 7005-60-00
• Number of Conductors: 6
• Conductor Material: Copper
• Armor: Interlocked Galvanized Steel Strip
• Conductor Insulation: Type THHN with Protective Polypropylene Covering
• Maximum Temperature Rating: 90¬∞C (Dry)
• Maximum Voltage Rating: 600V
• Product Weight: 327 lbs per 1,000 ft
• Approximate Outer Diameter: 0.663 inches
• Grounding: Combined Armor Full-Sized Aluminum Ground Conductor and Full-Sized Green Insulated Copper Grounding Conductor
• Country of Origin: United States
• UPC: 077680270948

Features

• Solid copper conductors ensure low resistance and high conductivity
• Interlocked steel armor provides mechanical protection and grounding capability
• THHN insulation with polypropylene covering offers enhanced durability and protection
• UL Classified for 1, 2, and 3 hour fire penetration resistance
• Meets NEC and OSHA requirements for healthcare and commercial installations
• Suitable for cable tray installations and environmental air handling spaces
• Made in USA using US and/or imported materials
• Compatible with MCI-A listed connectors

Downloads & Links

• Spec Sheet
