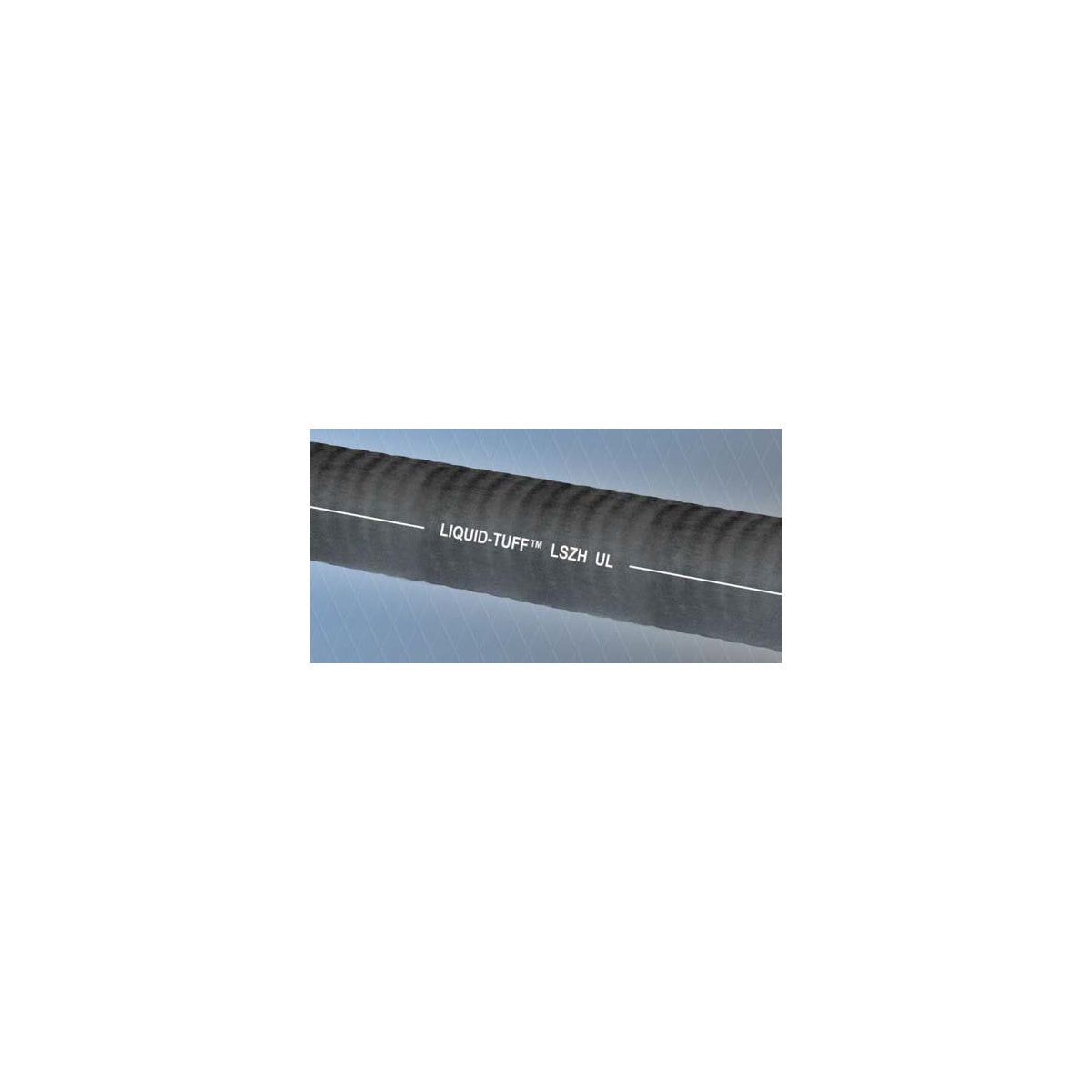

AFC 6706-24-00 1" LT UL LT TYPE LSZ Liquidtight Flexible Metal Conduit

The AFC 6706-24-00 is a 1-1/2 inch Liquidtight Flexible Metal Conduit (LFMC) designed for use as a raceway for power, control, and communication cables. Manufactured by AFC Cable Systems in the USA, this conduit features a low smoke zero halogen (LSZH) thermoplastic polyurethane (TPU) jacket providing flame retardant, sunlight, moisture, and oil resistance. It is suitable for applications requiring reduced smoke and toxic materials of combustion, making it ideal for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 6706-24-00
• Trade Size: 1-1/2 inch
• Coil Length: 50 feet
• Approximate Weight per 100 feet: 107 pounds
• Jacket Thickness: 0.04 inches
• Internal Diameter (min/max): 1.575 / 1.600 inches
• Over Jacket Diameter (min/max): 1.865 / 1.900 inches
• Bend Radius: 9 inches
• Temperature Ratings: 80¬∞C dry, 60¬∞C wet, 70¬∞C oil resistant, -40¬∞C low temperature
• Country of Origin: United States
• Product Weight: 53.5 pounds

Features

• Low smoke zero halogen construction reduces toxic combustion products
• Hot-dipped zinc galvanized low carbon steel core with continuous bonding strip for grounding
• Black thermoplastic polyurethane jacket is flame retardant, sunlight resistant, moisture and oil resistant
• UL Listed for dry, wet, oily locations, direct burial, concrete embedment, and sunlight exposure
• CSA certified for use in dry and oily locations with pending certification for this model
• Meets UL 360 and CSA C22.2 No. 56 standards for liquidtight flexible metal conduit
• Tested to ASTM E162 (Flame Spread), ASTM E662 (Smoke Density), and Bombardier SMP-800C (Toxic Gas Generation)
• Permanent circuit ground protection via bonding strip for trade sizes 3/8 through 1-1/4; separate grounding conductor required for larger sizes
• Suitable for a wide range of NEC applications including wet locations, cable trays, hazardous locations, service entrance wiring, and solar photovoltaic systems
