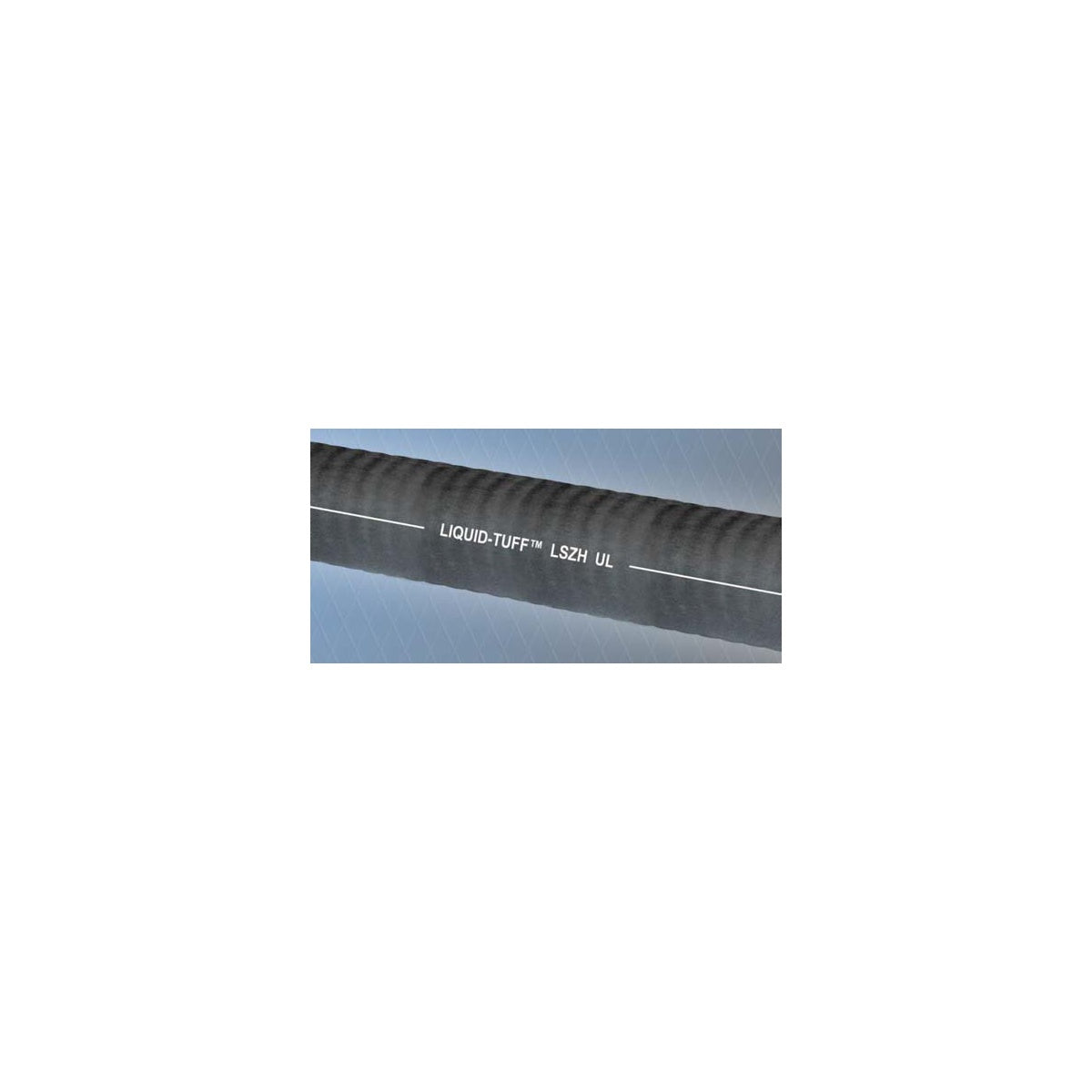

AFC 6705-47-00 1" LT UL LT TYPE LSZ Low Smoke Zero Halogen Liquidtight Flexible Metal Conduit

The AFC 6705-47-00 is a 1-inch Low Smoke Zero Halogen (LSZH) Liquidtight Flexible Metal Conduit designed for use as a raceway for power, control, and communication cables. Manufactured by AFC Cable Systems in the USA, this conduit is suitable for applications requiring reduced smoke and toxic materials of combustion. It is UL Listed and CSA certified for use in dry, wet, oily, direct burial, and outdoor locations, making it a reliable solution for electrical distributors, lighting solutions, wire and cable management, and switchgear suppliers.

Specifications

• Manufacturer Part #: 6705-47-00
• Trade Size: 1 inch
• Internal Diameter: 1.041 - 1.066 inches
• Over Jacket Diameter: 1.290 - 1.315 inches
• Jacket Thickness: 0.035 inches
• Bend Radius: 6.5 inches
• Weight: 765 lbs (per 100 feet)
• Temperature Ratings: 80¬∞C dry, 60¬∞C wet, 70¬∞C oil resistant, -40¬∞C low temperature
• Jacket Color: Black
• Country of Origin: United States
• UL Listed: UL 360, UL 94 V-0 rating
• CSA Certified: CSA C22.2 No. 56 (pending)

Features

• Low smoke, zero halogen raceway reduces toxic combustion byproducts
• Hot-dipped zinc galvanized low carbon steel core provides corrosion resistance
• Black thermoplastic polyurethane (TPU) jacket is low-smoke, moisture, oil, sunlight resistant, and flame retardant
• Continuous bonding strip for grounding in trade sizes 3/8 through 1-1/4
• Suitable for direct burial, concrete embedment, and exposure to sunlight and weather
• Complies with ASTM E162, ASTM E662, and Bombardier SMP-800C tests for flame spread, smoke density, and toxic gas generation
• Meets NEC¬Æ requirements for flexible conduit in hazardous locations, cable trays, service entrance wiring, and more

Downloads & Links

• Spec Sheet
