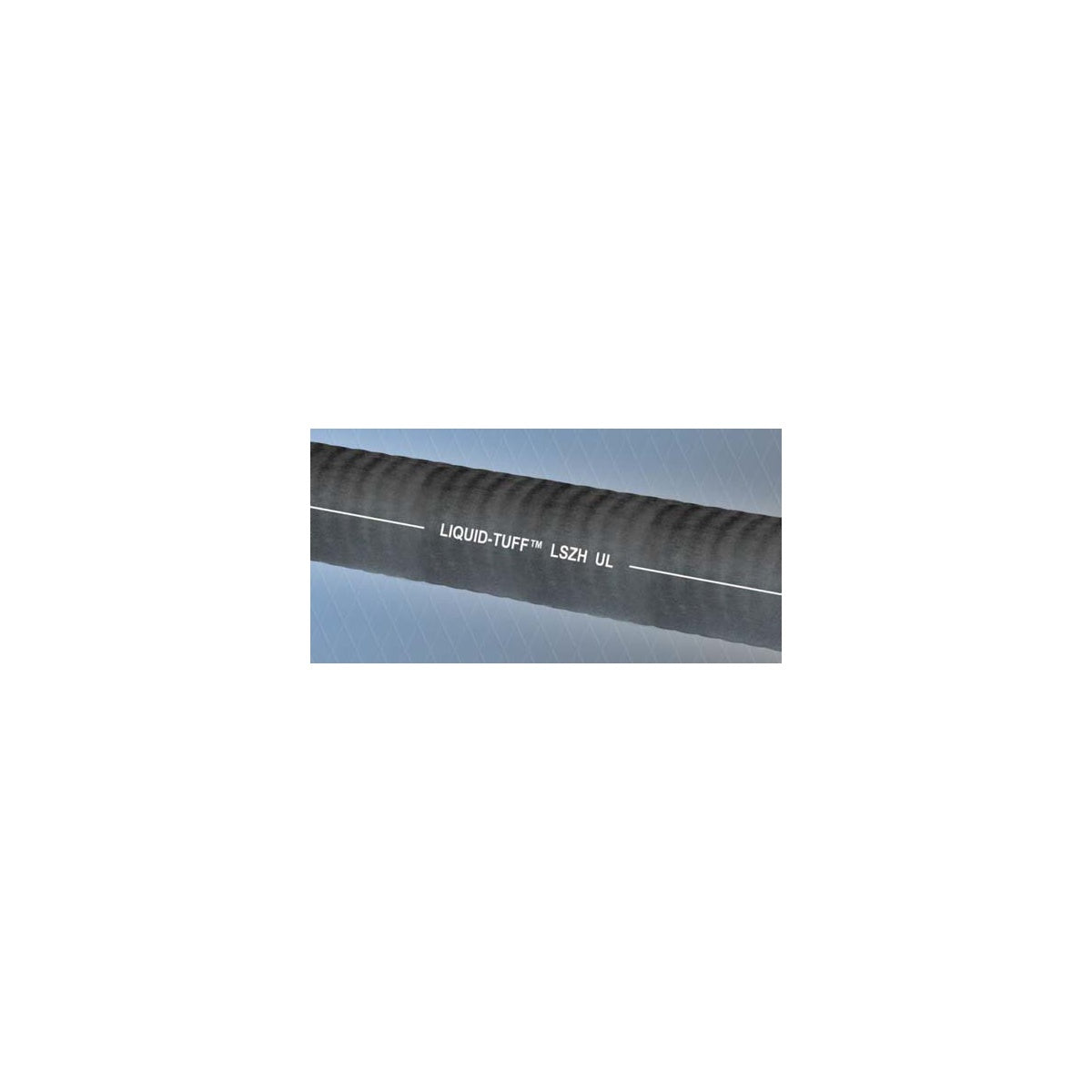

AFC 6705-40-00 1" LT UL LT TYPE LSZ - Liquidtight Flexible Metal Conduit

The AFC 6705-40-00 is a LIQUID-TUFF‚Ñ¢ Low Smoke Zero Halogen (LSZH) UL Listed Liquidtight Flexible Metal Conduit designed for use as a raceway for power, control, and communication cables. Manufactured by AFC Cable Systems in the USA, this conduit is suitable for harsh environments requiring reduced smoke and toxic combustion materials, making it ideal for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers. It is rated for dry, wet, oily, and low temperature locations and is UL and CSA certified, ensuring compliance with National Electric Code (NEC) Article 350 and other relevant standards.

Specifications

• Manufacturer Part #: 6705-40-00
• Trade Size: 1-1/4"
• Internal Diameter: 1.380 - 1.410 inches
• Over Jacket Diameter: 1.630 - 1.660 inches
• Minimum Jacket Thickness: 0.035 inches
• Bend Radius: 8 inches
• Approximate Weight: 102 lbs per 100 feet
• Temperature Ratings: 80¬∞C (176¬∞F) dry, 60¬∞C (140¬∞F) wet, 70¬∞C (158¬∞F) oil resistant, -40¬∞C (-40¬∞F) low temperature
• Country of Origin: United States
• Made in USA: Yes
• UPC: 077680176523

Features

• Low smoke, zero halogen raceway reducing toxic gas generation
• Hot-dipped zinc galvanized low carbon steel core with continuous bonding strip for grounding
• Black thermoplastic polyurethane (TPU) jacket that is flame retardant, sunlight resistant, moisture and oil resistant
• UL Listed for use in dry, wet, oily, direct burial, outdoor, and low temperature applications
• Complies with UL 360 and CSA C22.2 No. 56 standards
• Suitable for NEC¬Æ 350 Liquidtight Flexible Metal Conduit Type LFMC applications including hazardous locations, cable trays, service entrance wiring, and more
• Permanent circuit ground protection via continuous bonding strip for sizes 3/8" through 1-1/4"
• Meets ASTM¬Æ E162 flame spread, ASTM¬Æ E662 smoke density, and Bombardier SMP-800C toxic gas generation test requirements

Downloads & Links

• Spec Sheet
