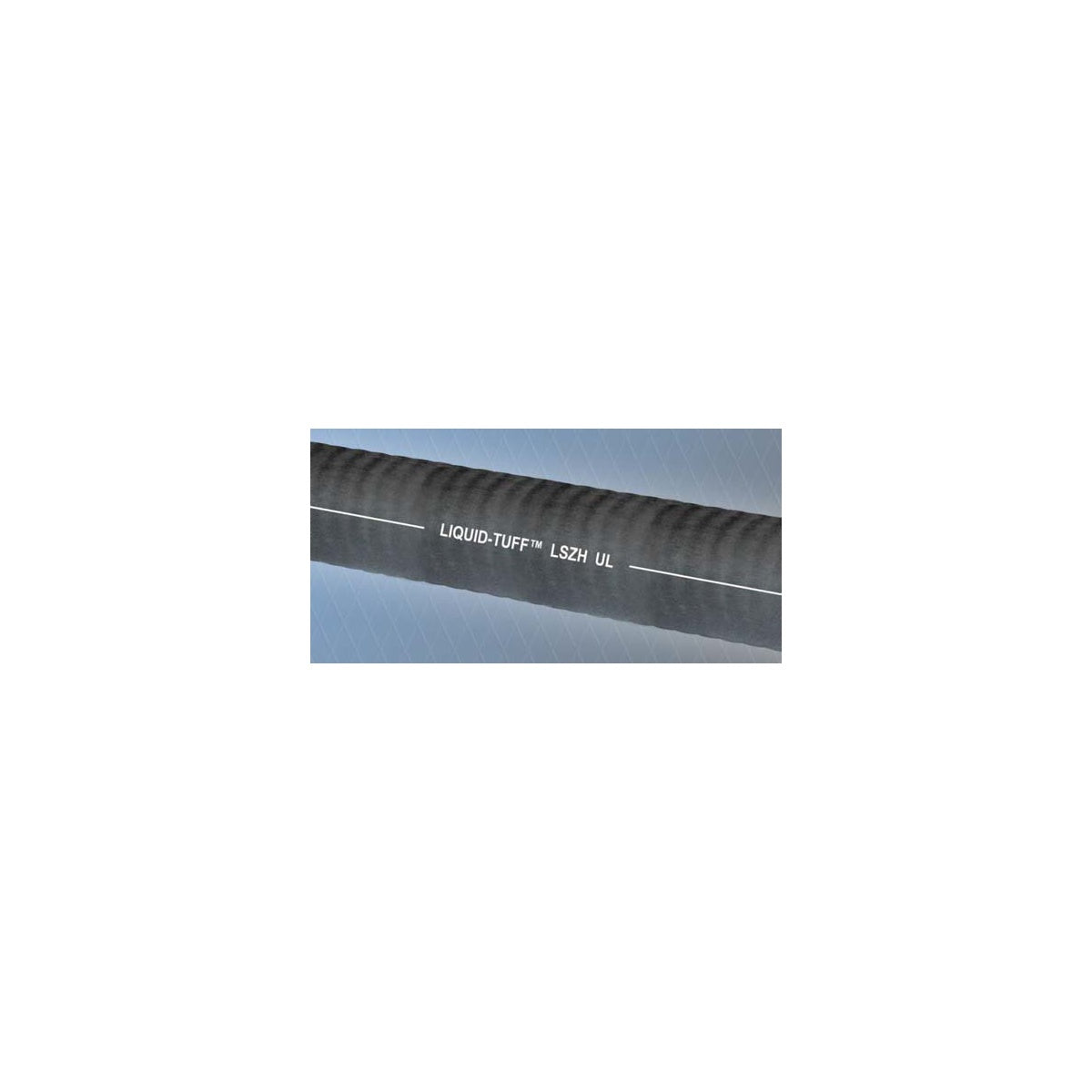

AFC 6704-41-00 1" UL LT TYPE LSZH L Liquidtight Flexible Metal Conduit

The AFC 6704-41-00 is a 1-inch UL Listed Low Smoke Zero Halogen (LSZH) Liquidtight Flexible Metal Conduit designed for use as a raceway for power, control, and communication cables. Manufactured by AFC Cable Systems in the United States, this conduit is suitable for applications requiring reduced smoke and toxic combustion materials, making it ideal for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers. It supports use in wet locations, direct burial, concrete embedment, and exposure to sunlight and weather.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 6704-41-00
• Trade Size: 1 inch
• Coil Length: 400 feet
• Approximate Weight per 100 feet: 78 pounds
• Jacket Thickness: 0.035 inches
• Internal Diameter: 1.041 to 1.066 inches
• Over Jacket Diameter: 1.290 to 1.315 inches
• Bend Radius: 6.5 inches
• Temperature Ratings: 80¬∞C dry, 60¬∞C wet, 70¬∞C oil resistant, -40¬∞C low temperature
• UL Listed for direct burial, sunlight resistance, and low temperature applications
• CSA Certified for use at 75¬∞C in dry and oily locations (certification pending)
• Made in USA

Features

• Low smoke, zero halogen construction reduces toxic combustion byproducts
• Hot-dipped zinc galvanized low carbon steel core provides durability and grounding (continuous bonding strip for sizes 3/8 to 1-1/4 inch)
• Black thermoplastic polyurethane (TPU) jacket offers flame retardance, moisture, oil, and sunlight resistance
• UL bonding strip for grounding in trade sizes 3/8 through 1-1/4 inch
• Meets UL 360 and CSA C22.2 No. 56 standards for liquidtight flexible metal conduit
• Tested and compliant with ASTM E162 (flame spread), ASTM E662 (smoke density), and Bombardier SMP-800C (toxic gas generation)
• Suitable for NEC Article 350 applications including wet locations, direct burial, concrete embedment, and hazardous locations
