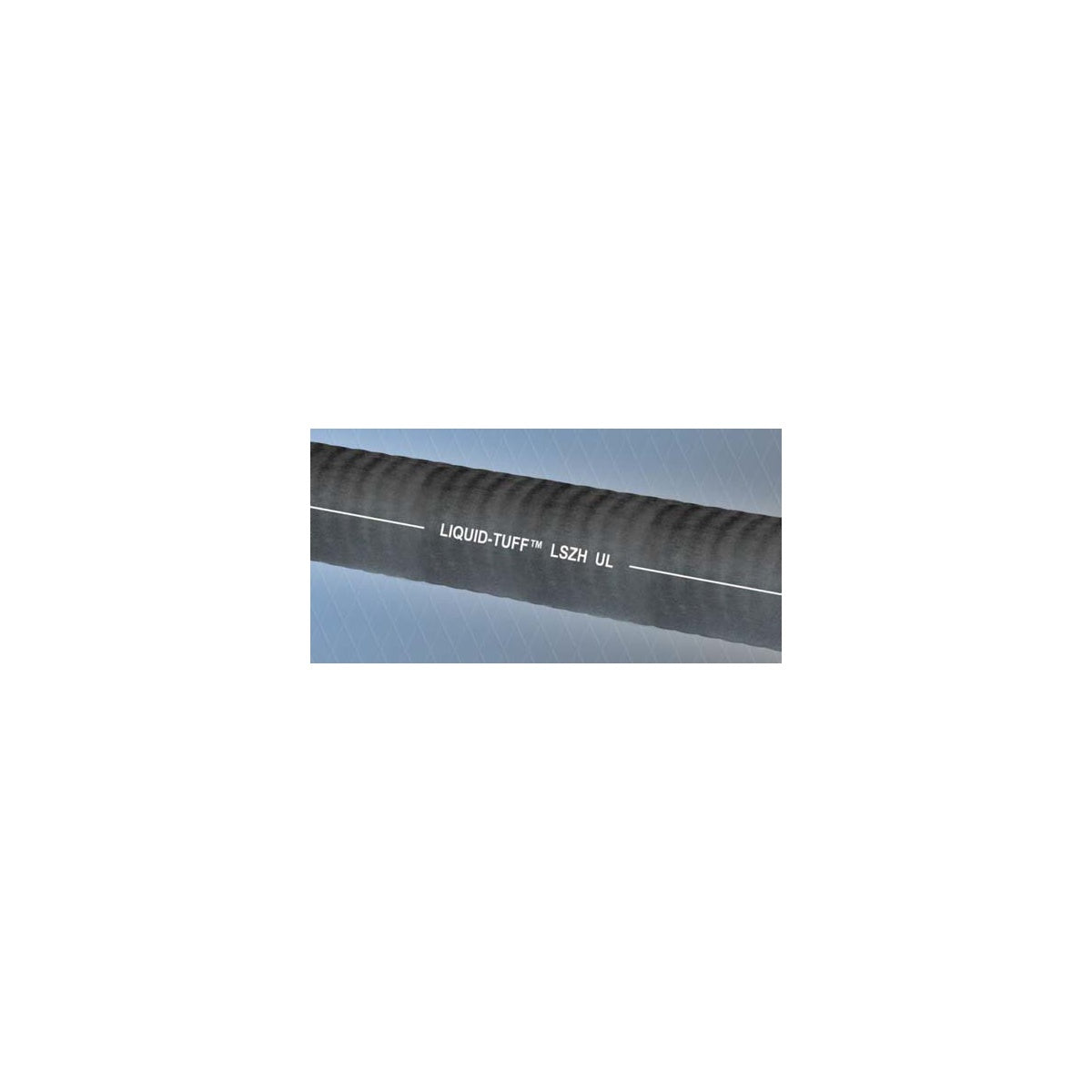

AFC 6703-45-00 3/4" UL LT TYPE LSZH Liquidtight Flexible Metal Conduit

The AFC 6703-45-00 3/4" UL LT TYPE LSZH is a liquidtight flexible metal conduit designed for use as a raceway for power, control, and communication cables. It is suitable for applications requiring low smoke and zero halogen emissions, making it ideal for environments where limiting smoke and toxic combustion products is critical. This conduit is UL and CSA certified for dry, wet, oily, direct burial, and low temperature applications, providing versatile solutions for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 6703-45-00
• Trade Size: 3/4"
• Coil Length: 500 feet
• Approximate Weight: 47 pounds per 100 feet
• Jacket Thickness: 0.035 inches
• Internal Diameter: 0.820 - 0.840 inches
• Overall Diameter: 1.030 - 1.050 inches
• Bend Radius: 4.25 inches
• Temperature Ratings: 80¬∞C dry, 60¬∞C wet, 70¬∞C oil resistant, -40¬∞C low temperature
• Country of Origin: United States
• Made in USA: Yes
• UPC: 077680176356

Features

• Low smoke, zero halogen raceway construction
• Hot-dipped zinc galvanized low carbon steel core with continuous bonding strip for grounding
• Black thermoplastic polyurethane (TPU) jacket that is low-smoke, moisture, oil, sunlight resistant, and flame retardant
• UL bonding strip for grounding in trade sizes 3/8" through 1-1/4"
• UL and CSA certified for direct burial, outdoor use, and exposure to sunlight and weather
• Meets UL 360 and CSA C22.2 No. 56 standards for liquidtight flexible metal conduits
• Complies with ASTM E162, ASTM E662, and Bombardier SMP-800C for flame spread, smoke density, and toxic gas generation
• Suitable for use in wet locations, concrete embedment, hazardous locations, and various NEC wiring methods

Downloads & Links

• Spec Sheet
