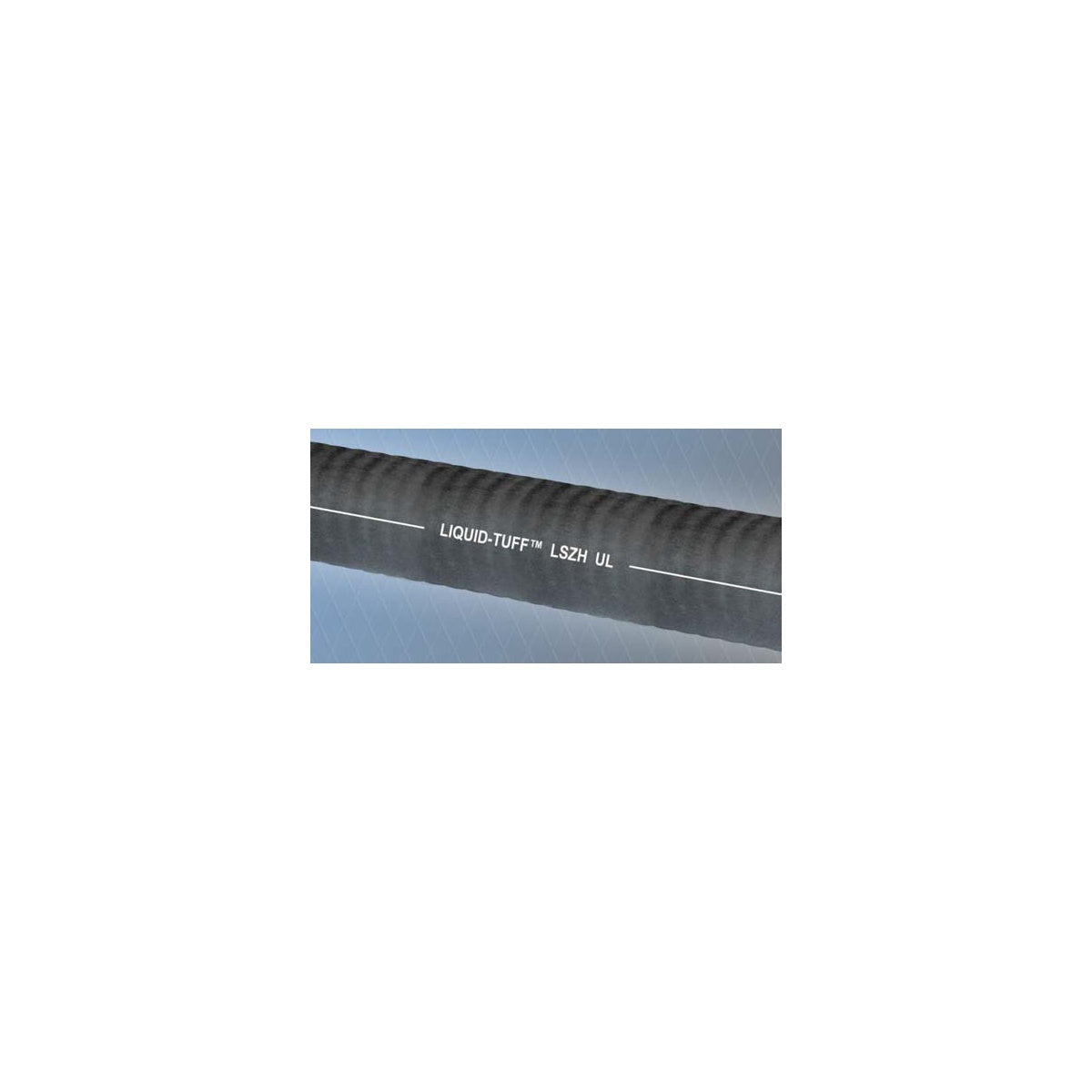

AFC 6702-60-00 1/2" UL LT TYPE LSZH Liquidtight Flexible Metal Conduit

The AFC 6702-60-00 is a 1/2" UL Listed Liquidtight Flexible Metal Conduit (LFMC) with a Low Smoke Zero Halogen (LSZH) thermoplastic polyurethane jacket. Designed for use as a raceway for power, control, and communication cables, it is suitable for applications requiring reduced smoke and toxic materials of combustion. This conduit is ideal for electrical distributors and lighting solutions where safety and durability in wet, oily, and outdoor environments are critical. It complies with National Electric Code (NEC) Article 350 and is suitable for direct burial, concrete embedment, and exposure to sunlight and weather.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 6702-60-00
• Trade Size: 1/2"
• Coil Length: 1000 feet
• Approximate Weight: 31 lbs per 100 feet
• Minimum Jacket Thickness: 0.03 inches
• Internal Diameter: 0.622 - 0.642 inches
• Outer Jacket Diameter: 0.820 - 0.840 inches
• Bend Radius: 3.25 inches
• Temperature Ratings: 80¬∞C dry, 60¬∞C wet, 70¬∞C oil resistant, -40¬∞C low temperature
• Country of Origin: United States
• Made in USA: Yes

Features

• Low smoke, zero halogen raceway reducing toxic gas generation
• Hot-dipped zinc galvanized low carbon steel core for mechanical protection
• Black thermoplastic polyurethane jacket that is flame retardant, sunlight resistant, moisture and oil resistant
• Continuous bonding strip for grounding in sizes 3/8" through 1-1/4"
• UL Listed for dry, wet, oily locations, direct burial, and outdoor use
• CSA certification pending for dry and oily locations
• Meets UL 360 and CSA C22.2 No. 56 standards
• Complies with ASTM E162 (Flame Spread), ASTM E662 (Smoke Density), and Bombardier SMP-800C (Toxic Gas Generation) testing
