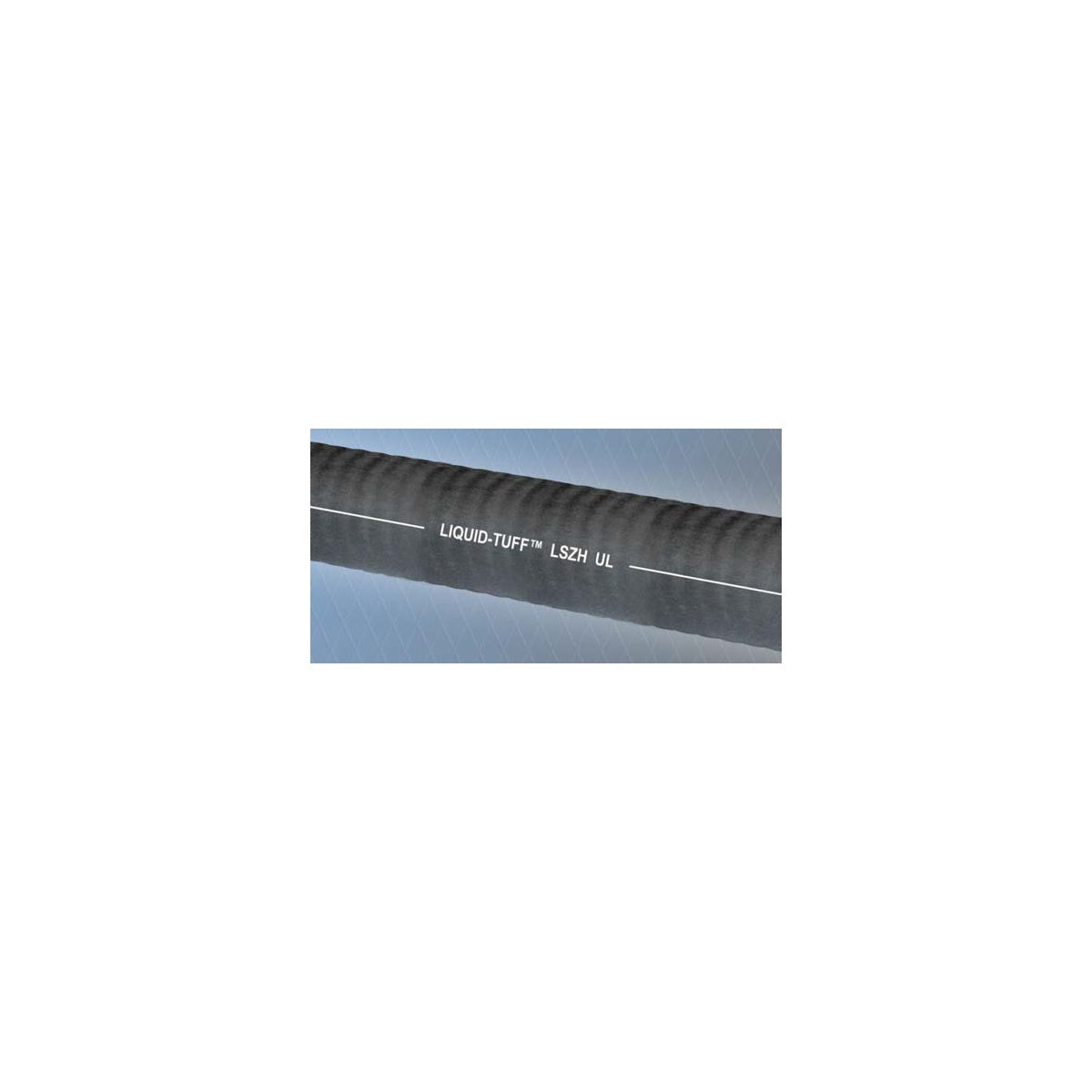

AFC 6702-45-00 1/2" UL LT TYPE LSZH Liquidtight Flexible Metal Conduit

The AFC 6702-45-00 is a 1/2" UL Listed Low Smoke Zero Halogen (LSZH) Liquidtight Flexible Metal Conduit designed for use as a raceway for power, control, and communication cables. Manufactured by AFC Cable Systems in the United States, this conduit is engineered for applications requiring reduced smoke and toxic materials of combustion, making it suitable for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers. It offers excellent temperature ratings and is suitable for wet locations, direct burial, concrete embedment, and exposure to sunlight and weather.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 6702-45-00
• Trade Size: 1/2 inch
• Coil Length: 500 feet
• Approximate Weight per 100 feet: 31 pounds
• Jacket Thickness: 0.03 inches
• Internal Diameter (min/max): 0.622 / 0.642 inches
• Over Jacket Diameter (min/max): 0.820 / 0.840 inches
• Bend Radius: 3.25 inches
• Product Weight: 155 pounds
• Country of Origin: United States
• Made in USA: Yes

Features

• Low smoke, zero halogen raceway for reduced toxicity
• Hot-dipped zinc galvanized low carbon steel core with continuous bonding strip for grounding (3/8" to 1-1/4")
• Black thermoplastic polyurethane (TPU) jacket that is low smoke, moisture, oil, sunlight resistant, and flame retardant
• UL Listed for use at 80°C dry, 60°C wet, 70°C oil resistant, and -40°C low temperature
• UL and CSA certified to meet UL 360 and CSA C22.2 No. 56 standards
• Suitable for direct burial, concrete embedment, and outdoor use
• Permanent circuit ground protection through continuous bonding strip
• Meets ASTM E162 Flame Spread, ASTM E662 Smoke Density, and Bombardier SMP-800C Toxic Gas Generation test requirements
• Sunlight resistant and suitable for hazardous location flexible connections
