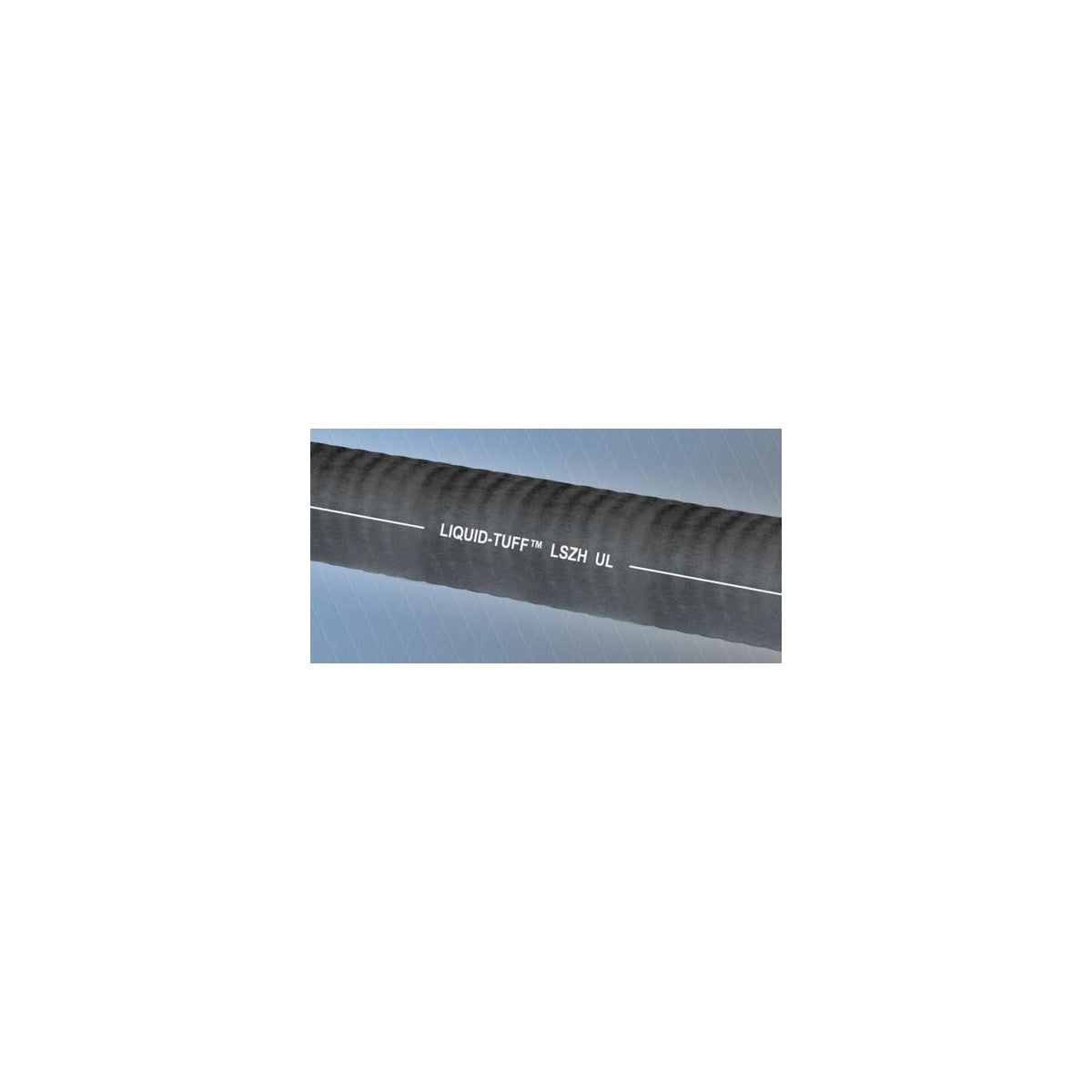

AFC 6702-30-00 1/2" UL LT TYPE LSZH Liquidtight Flexible Metal Conduit

The AFC 6702-30-00 is a 1/2" UL Listed Low Smoke Zero Halogen (LSZH) Liquidtight Flexible Metal Conduit designed for use as a raceway for power, control, and communication cables. Manufactured by AFC Cable Systems in the USA, it is suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable protection with enhanced safety features such as reduced smoke and toxic gas emissions. This conduit is ideal for applications in wet locations, direct burial, concrete embedment, and outdoor environments exposed to sunlight and weather.

Specifications

• Manufacturer Part #: 6702-30-00
• Trade Size: 1/2 inch
• Coil Length: 100 feet
• Approximate Weight: 31 pounds per 100 feet
• Jacket Thickness: 0.03 inches
• Internal Diameter: 0.622 to 0.642 inches
• Over Jacket Diameter: 0.820 to 0.840 inches
• Bend Radius: 3.25 inches
• Temperature Ratings: 80¬∞C dry, 60¬∞C wet, 70¬∞C oil resistant, -40¬∞C low temperature
• Country of Origin: United States
• UL Listed and CSA Certified (pending)

Features

• Low smoke, zero halogen construction reduces toxic emissions in case of fire
• Hot-dipped galvanized low carbon steel core for mechanical protection
• Black thermoplastic polyurethane (TPU) jacket that is flame retardant, sunlight resistant, moisture and oil resistant
• Continuous bonding strip for grounding in trade sizes 3/8 through 1-1/4
• UL 360 and CSA C22.2 No. 56 compliant construction and performance
• Suitable for direct burial, wet locations, concrete embedment, and outdoor use
• Meets ASTM E162 Flame Spread, ASTM E662 Smoke Density, and Bombardier SMP-800C Toxic Gas Generation standards
