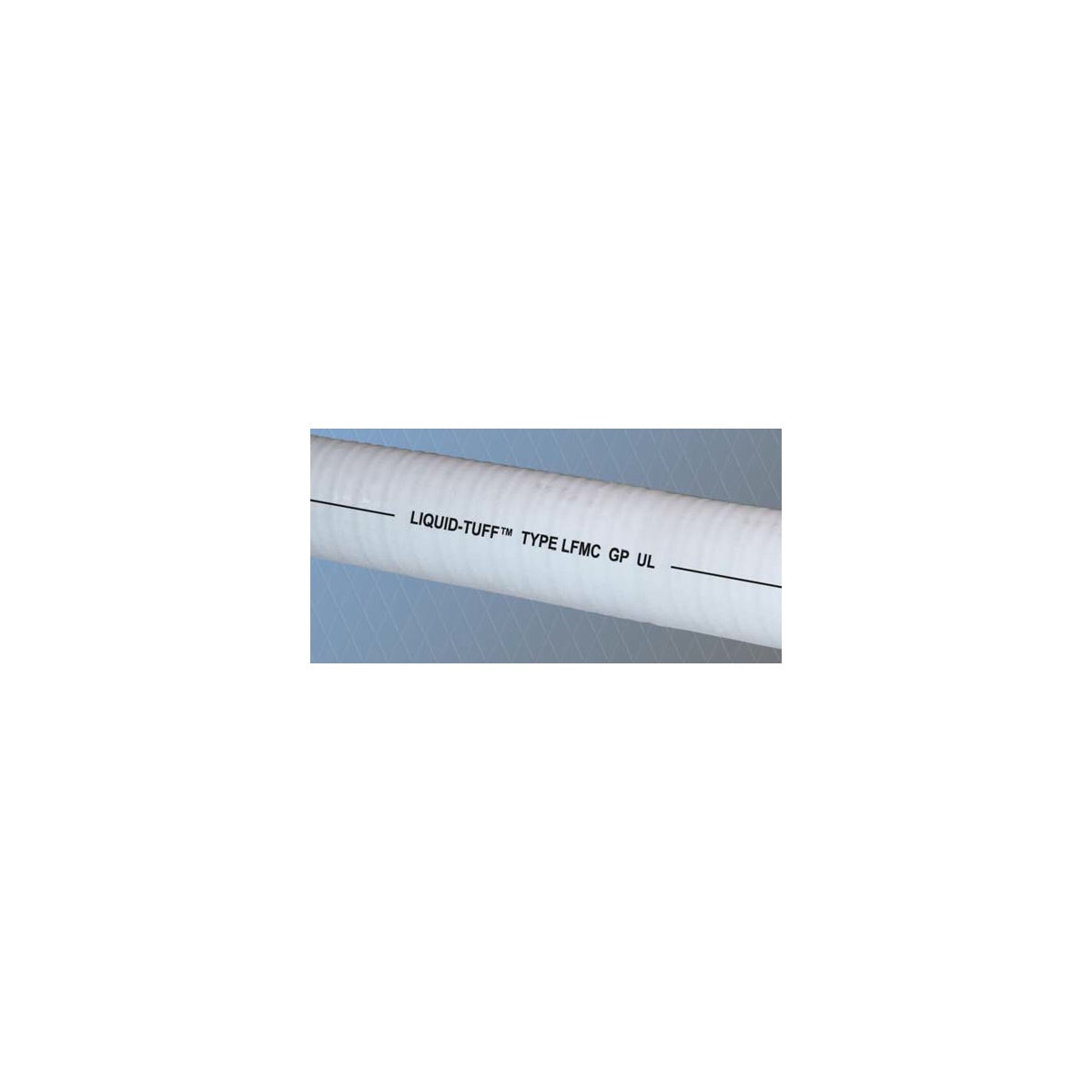

AFC 6220-22-00 3" LIQUIDTUFF UL LT Liquidtight Flexible Metal Conduit

The AFC 6220-22-00 3" LIQUIDTUFF UL LT is a liquidtight flexible metal conduit designed for use as a raceway for power, control, and communication cables. Manufactured by AFC Cable Systems, this conduit is suitable for electrical distributors and switchgear suppliers requiring durable, flexible wiring solutions. It features a rugged, sunlight, moisture, and oil-resistant PVC jacket over a hot-dipped zinc galvanized low carbon steel core. This conduit is UL and CSA listed for use in wet locations, direct burial, concrete encasement, and exposure to sunlight and weather, making it ideal for a wide range of industrial and commercial electrical applications.

Specifications

• Manufacturer Part #: 6220-22-00
• Trade Size: 3 inches
• Color: Gray
• Approximate Weight: 57.5 pounds (per 100 feet)
• Minimum Jacket Thickness: 0.06 inches
• Internal Diameter (min/max): 3.070 / 3.100 inches
• Over Jacket Diameter (min/max): 3.460 / 3.500 inches
• Bend Radius: 17.5 inches
• Temperature Ratings: 80¬∞C (176¬∞F) dry, 60¬∞C (140¬∞F) wet, 70¬∞C (158¬∞F) oily locations
• UL Listed for -40¬∞C (-40¬∞F) low temperature
• Made in USA

Features

• UL LIQUID-TUFF‚Ñ¢ liquidtight flexible steel conduit
• Hot-dipped zinc galvanized low carbon steel core for corrosion resistance
• Flame retardant, sunlight, moisture, and oil-resistant PVC jacket
• Continuous bonding strip for grounding in sizes 3/8" to 1-1/4"
• Suitable for direct burial in earth or concrete encasement
• Complies with NEC Article 350 and Canadian Electric Code for flexible conduit applications
• Suitable for hazardous location flexible connections and various specialized electrical installations
