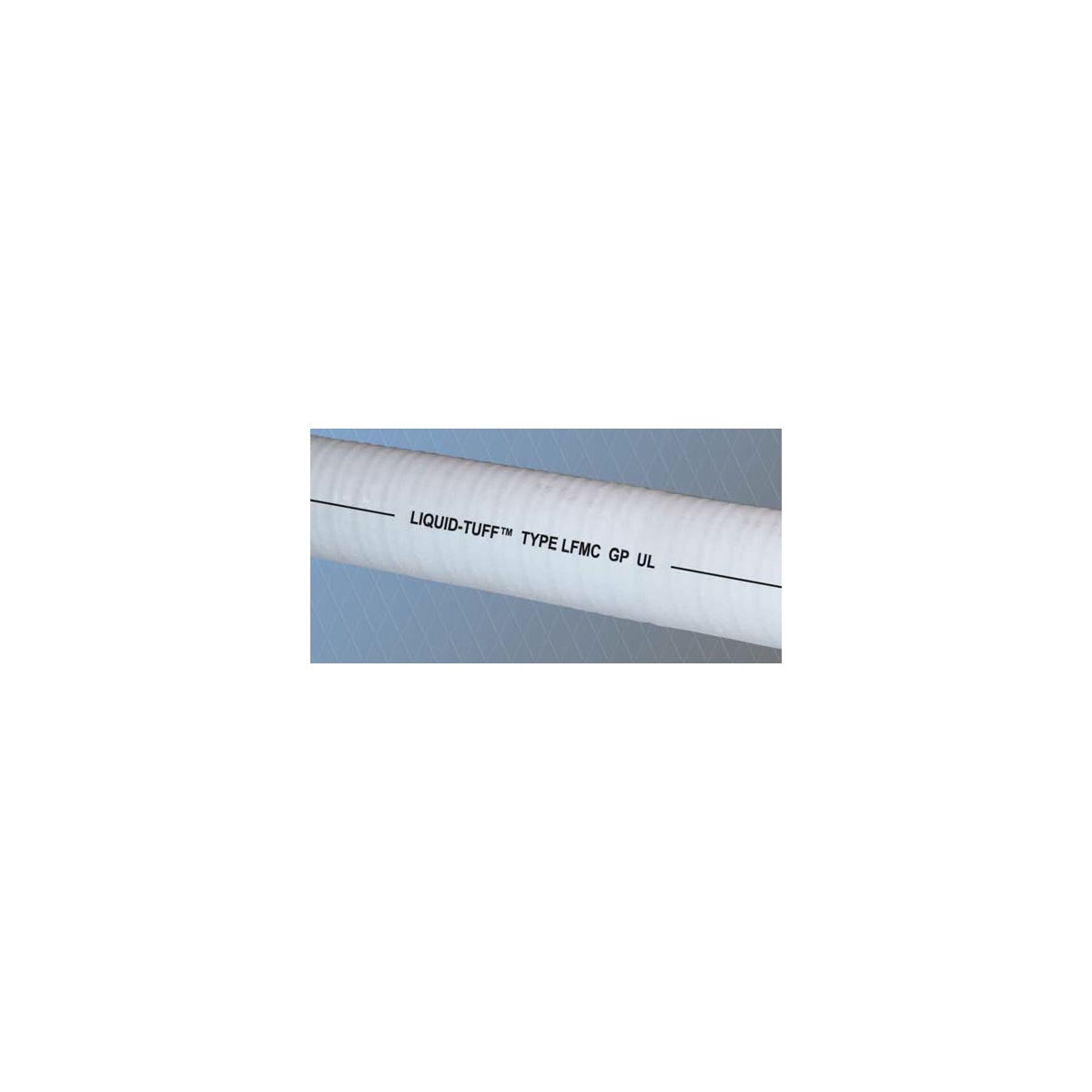

AFC 6209-56-00 3" LIQUIDTUFF UL LT Liquidtight Flexible Metal Conduit

The AFC 6209-56-00 3" LIQUIDTUFF UL LT is a liquidtight flexible metal conduit designed for use as a raceway for power, control, and communication cables. Manufactured by AFC Cable Systems, this conduit is suitable for electrical distributors and lighting solutions requiring durable, moisture, oil, and sunlight-resistant wire and cable protection. It is UL Listed and CSA certified for use in wet locations, direct burial in earth or concrete encasement, and outdoor environments, making it an ideal choice for switchgear suppliers and industrial electrical applications.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 6209-56-00
• Trade Size: 3 inches
• Color: Gray
• Country of Origin: United States
• Made in USA: Yes
• Approximate Weight per 100 feet: 195 pounds
• Minimum Jacket Thickness: 0.05 inches
• Internal Diameter: 3.070 to 3.100 inches
• Outer Jacket Diameter: 3.460 to 3.500 inches
• Bend Radius: 17.5 inches
• Temperature Ratings: 80¬∞C (176¬∞F) dry, 60¬∞C (140¬∞F) wet, 70¬∞C (158¬∞F) oily
• UL Listed for -40¬∞C (-40¬∞F) low temperature applications

Features

• Constructed from hot-dipped zinc galvanized low carbon steel core
• Rugged, flame retardant PVC jacket resistant to moisture, oil, and sunlight
• UL bonding strip for grounding in sizes 3/8" through 1-1/4"
• Suitable for direct burial, concrete encasement, and outdoor exposure
• Complies with UL 360 and CSA C22.2 No. 56 standards
• Meets NEC¬Æ Article 350 requirements for liquidtight flexible metal conduit
• Available in multiple colors, with specialty colors and FT-4 PVC options upon request

Downloads & Links

• Spec Sheet
