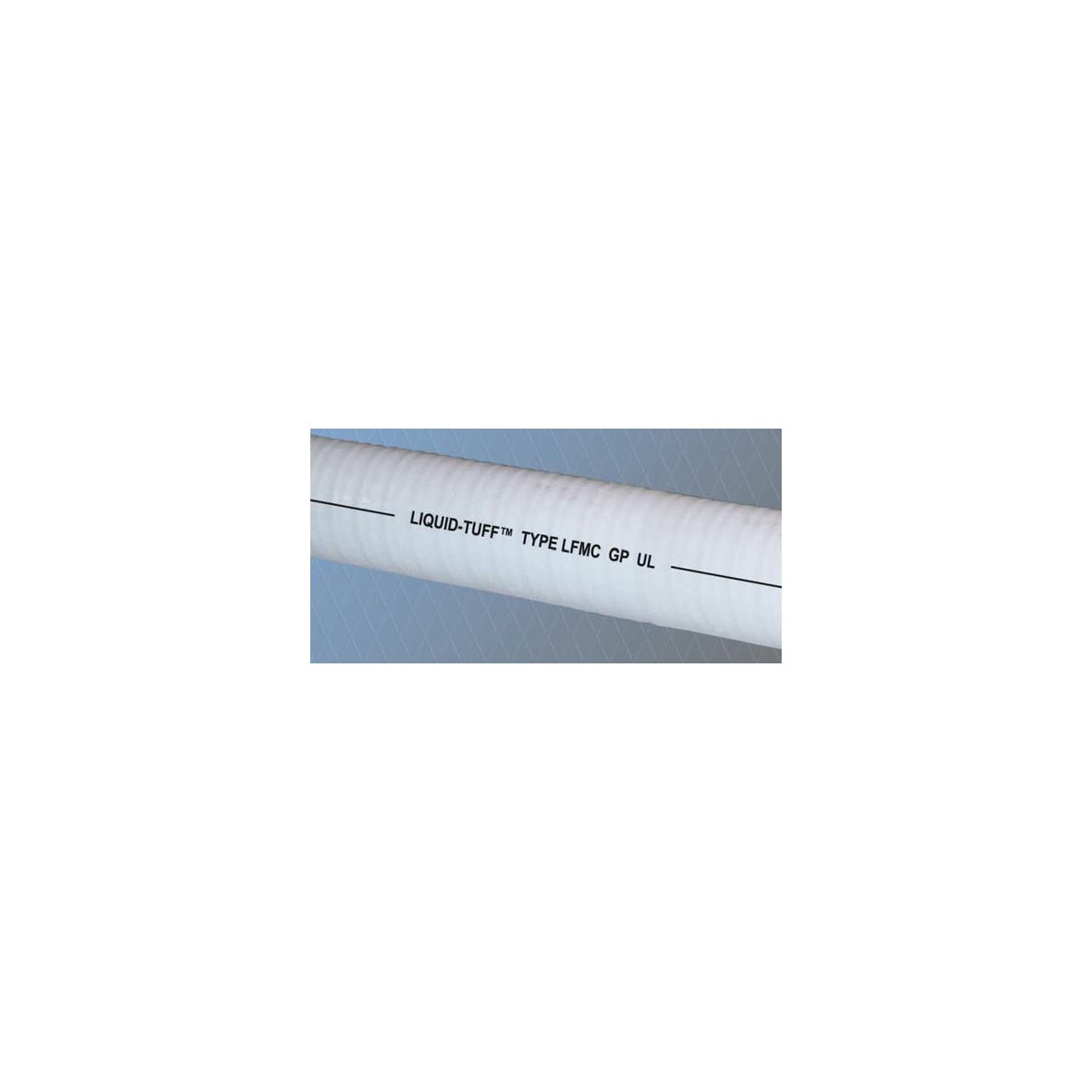

AFC 6207-80-00 2" LIQUIDTUFF UL LT Liquidtight Flexible Metal Conduit

The AFC 6207-80-00 2" LIQUIDTUFF UL LT is a liquidtight flexible metal conduit designed for use as a raceway for power, control, and communication cables. Manufactured by AFC Cable Systems, this conduit is suitable for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers requiring durable, moisture-resistant conduit. It features a rugged, sunlight-resistant gray PVC jacket over a hot-dipped galvanized low carbon steel core, ensuring protection in wet, oily, and outdoor environments. UL and CSA certified, it meets NEC Article 350 requirements and is suitable for direct burial, concrete embedment, and hazardous locations.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 6207-80-00
• Trade Size: 2 inches
• Color: Gray
• Weight: 435 lbs per 100 feet
• Jacket Thickness: 0.04 inches
• Internal Diameter (min/max): 2.020 / 2.045 inches
• Over Jacket Diameter (min/max): 2.340 / 2.375 inches
• Bend Radius: 11.12 inches
• Temperature Rating: 80¬∞C (176¬∞F) dry, 60¬∞C (140¬∞F) wet, 70¬∞C (158¬∞F) oily
• Country of Origin: United States
• Made in USA: Yes

Features

• UL Listed for liquidtight flexible metal conduit (Type LFMC)
• Sunlight resistant, flame retardant PVC jacket
• Hot-dipped zinc galvanized low carbon steel core
• Continuous bonding strip for grounding on sizes 3/8" through 1-1/4"
• Suitable for use in wet locations, direct burial, and concrete encasement
• Meets UL 360 and CSA C22.2 No. 56 standards
• Compatible with NEC grounding and installation requirements
• Resistant to moisture, oil, and sunlight exposure

Downloads & Links

• Spec Sheet
