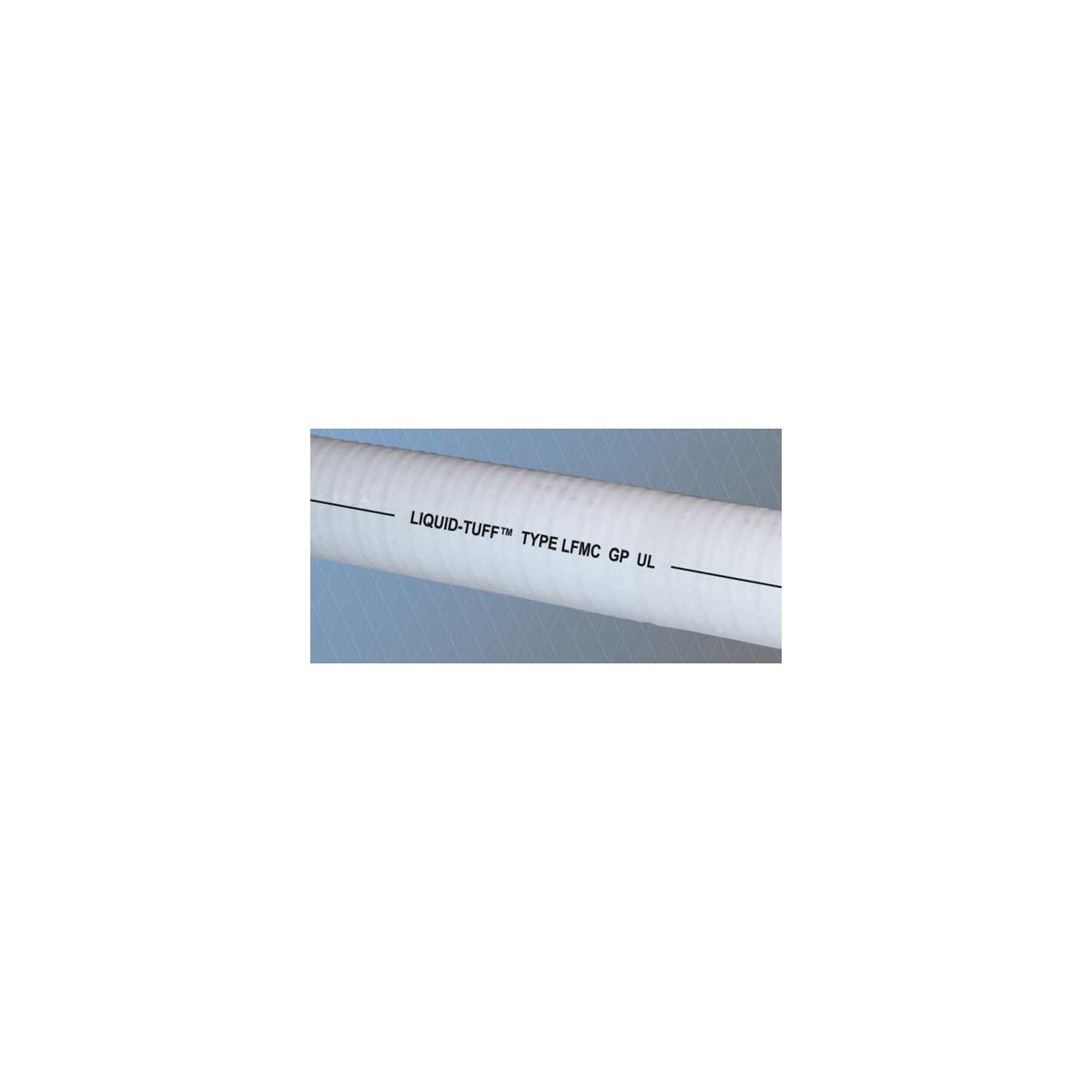

AFC 6206-62-00 1" LIQUIDTUFF UL LT Liquidtight Flexible Metal Conduit

The AFC 6206-62-00 is a 1-1/2" trade size LIQUID-TUFF™ UL Listed Liquidtight Flexible Metal Conduit designed for use as a raceway for power, control, and communication cables. Manufactured by AFC Cable Systems, this conduit is suitable for wet locations, direct burial, concrete embedment, and exposure to sunlight and weather. It meets National Electrical Code (NEC) Article 350 requirements and is ideal for electrical distributors and lighting solutions requiring durable, flexible wire and cable protection. The conduit features a rugged, flame retardant PVC jacket and a hot-dipped zinc galvanized low carbon steel core, providing corrosion resistance and mechanical protection.

Specifications

• Manufacturer Part #: 6206-62-00
• Trade Size: 1-1/2 inch
• Color: Gray
• Approximate Weight: 109 pounds per 100 feet
• Minimum Jacket Thickness: 0.04 inches
• Internal Diameter: 1.575 - 1.600 inches
• Over Jacket Diameter: 1.865 - 1.900 inches
• Bend Radius: 9 inches
• Temperature Ratings: 80°C (176°F) Dry, 60°C (140°F) Wet, 70°C (158°F) Oil
• UL Listed for -40°C (-40°F) Low Temperature
• Made in USA
• UPC: 077680137876

Features

• UL Listed Liquidtight Flexible Metal Conduit
• Hot-dipped zinc galvanized low carbon steel core
• Flame retardant, sunlight and oil resistant PVC jacket
• Continuous bonding strip for grounding in sizes 3/8" through 1-1/4"
• Suitable for direct burial in earth or concrete encasement
• Meets UL 360 and CSA C22.2 No. 56 standards
• Resistant to moisture, oil, sunlight, and mechanical impact
• Compliant with NEC® 350 and Canadian Electric Code grounding requirements

Downloads & Links

• Spec Sheet
