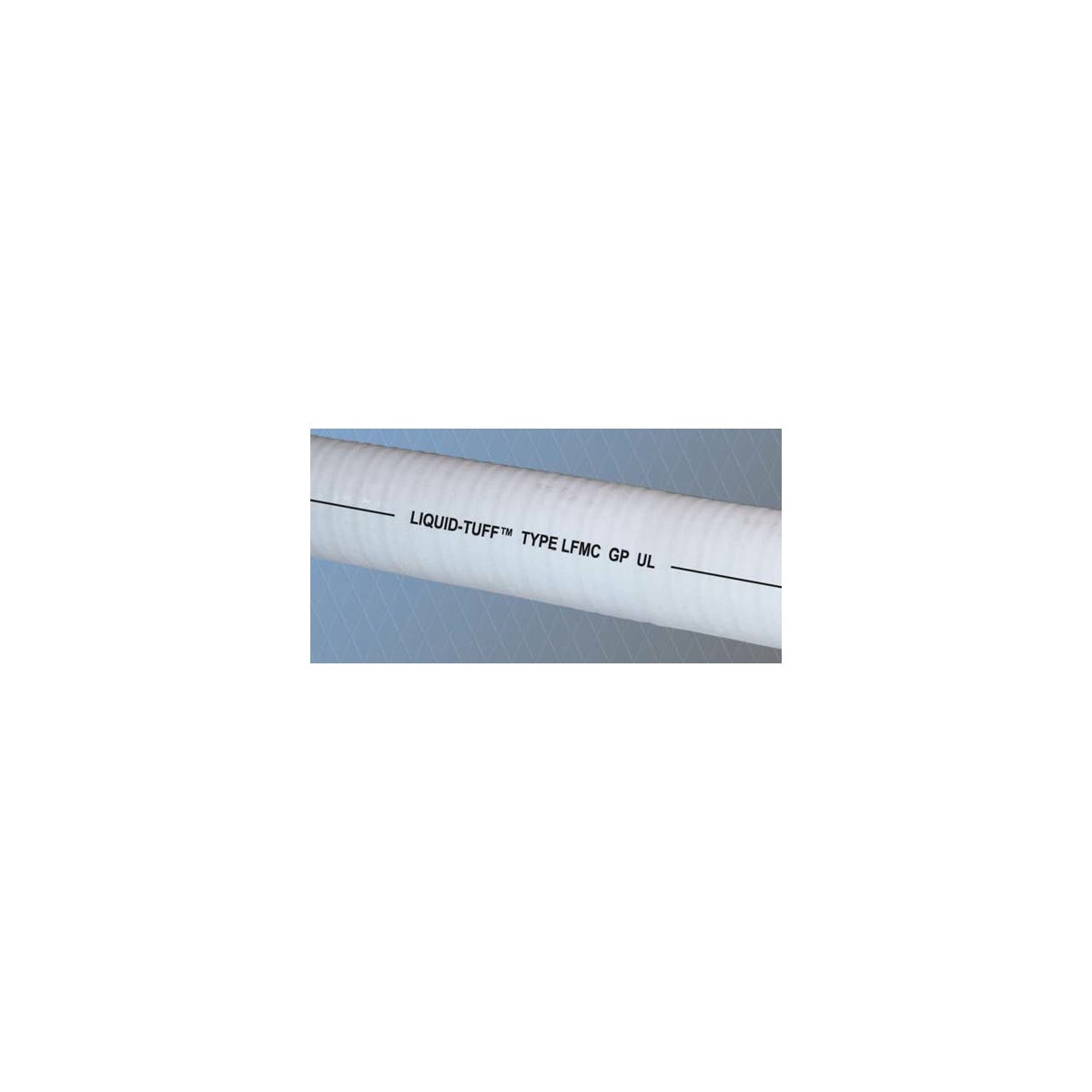

AFC 6205-40-00 1" LIQUIDTUFF UL LT Liquidtight Flexible Metal Conduit

The AFC 6205-40-00 1" LIQUIDTUFF UL LT is a UL and CSA certified liquidtight flexible metal conduit designed for use as a raceway for power, control, and communication cables. Manufactured by AFC Cable Systems in the United States, this conduit features a zinc-coated galvanized low carbon steel core with a flame retardant, sunlight resistant gray PVC jacket. It is suitable for wet locations, direct burial in earth or concrete, and exposure to sunlight and weather, making it ideal for electrical distributors and switchgear suppliers requiring durable and reliable wire and cable protection.

Specifications

• Manufacturer Part #: 6205-40-00
• Trade Size: 1-1/4 inch
• Color: Gray
• Approximate Weight: 103 pounds per 100 feet
• Minimum Jacket Thickness: 0.035 inches
• Internal Diameter: 1.380 to 1.410 inches
• Over Jacket Diameter: 1.630 to 1.660 inches
• Bend Radius: 8 inches
• Temperature Ratings: 80°C (176°F) dry, 60°C (140°F) wet, 70°C (158°F) oily locations
• UL Listed for -40°C (-40°F) low temperature applications
• Made in USA

Features

• UL bonding strip for grounding in sizes 3/8 to 1-1/4 inch
• Flame retardant and sunlight resistant PVC jacket
• Hot dipped zinc galvanized low carbon steel core for durability
• Suitable for direct burial in earth or concrete encasement
• Meets UL 360 and CSA C22.2 No. 56 standards
• Compliant with NEC Article 350 and Canadian Electric Code for flexible conduit use

Downloads & Links

• Spec Sheet
