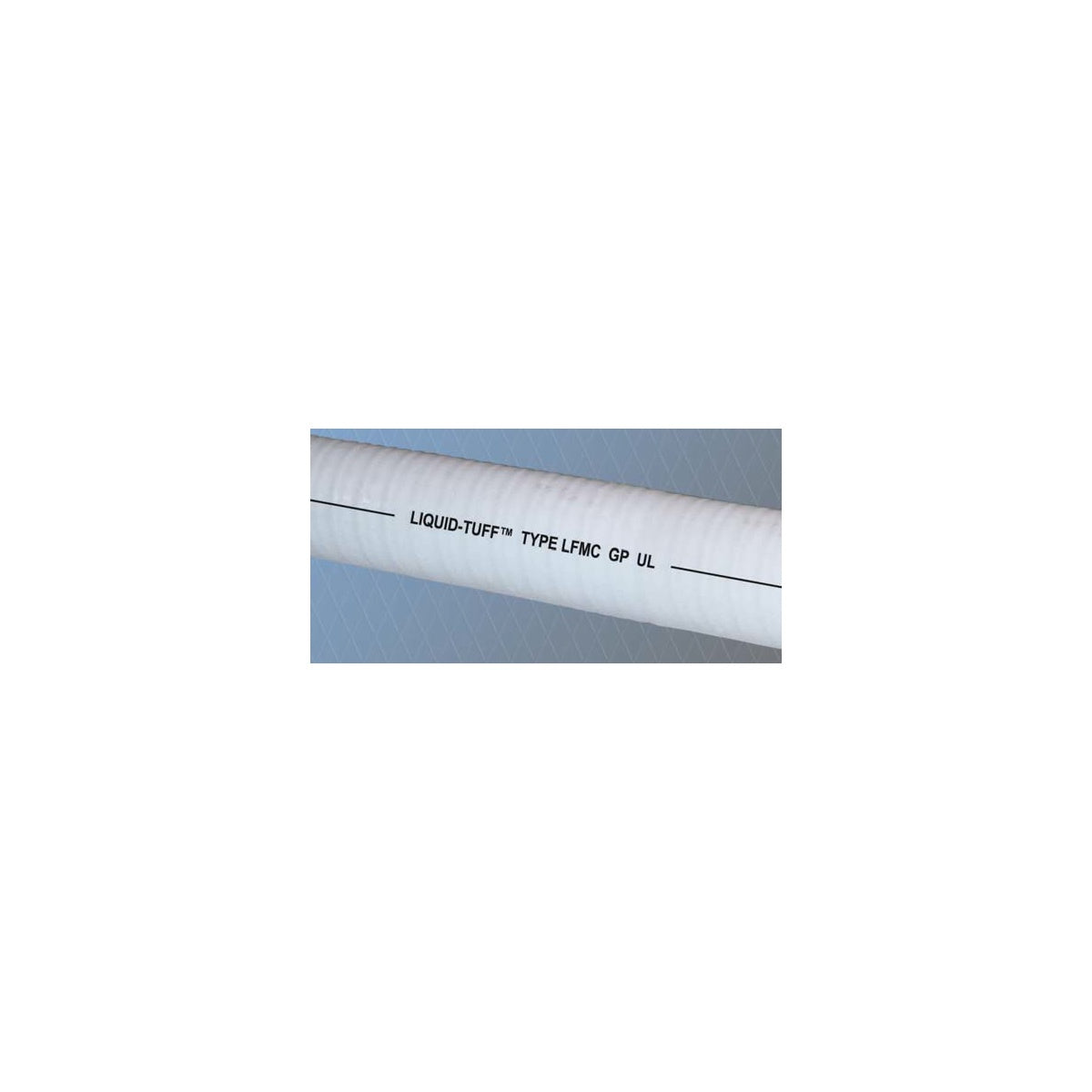

AFC 6204-30-00 1" LIQUIDTUFF UL LT Liquidtight Flexible Metal Conduit

The AFC 6204-30-00 1" LIQUIDTUFF UL LT is a liquidtight flexible metal conduit designed for use as a raceway for power, control, and communication cables. Manufactured by AFC Cable Systems, it is suitable for electrical distributors and lighting solutions requiring durable and flexible wire and cable protection. This conduit features a PVC jacket that is moisture, oil, and sunlight resistant, making it appropriate for wet locations, direct burial, concrete embedment, and outdoor applications. It meets UL 360 and CSA C22.2 No. 56 standards and is UL Listed for use in various environments including hazardous locations and solar photovoltaic systems.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 6204-30-00
• Material: PVC jacket over galvanized low carbon steel core
• Color: Gray
• Length: 100 FT Coil
• Inside Diameter: 1.066 inches
• Outside Diameter: 1.226 inches
• Product Weight: 79 pounds per 100 feet
• Flexibility: Flexible
• Made in USA: Yes
• UPC: 077680120144

Features

• UL Listed for 80°C dry, 60°C wet, and 70°C oily locations
• Sunlight resistant and flame retardant PVC jacket
• Hot-dipped zinc galvanized steel core for corrosion resistance
• Continuous bonding strip for grounding in sizes 3/8" to 1-1/4"
• Suitable for direct burial in earth or concrete encasement
• Complies with NEC Article 350 and Canadian Electric Code
• Meets UL 360 and CSA C22.2 No. 56 standards
• Suitable for hazardous locations and a wide range of industrial applications

Downloads & Links

• Spec Sheet
