AFC 6203-45-00 3/4" LT UL LT TYPE L
SKU: #39340
Part: #6203-45-00
UPC: 077680120076
AFC 6203-45-00 3/4" LT UL LT TYPE L
SKU: #39340
Part: #6203-45-00
UPC: 077680120076
Total Price: $1.69 per foot Sold in increments of 1 foot
Description

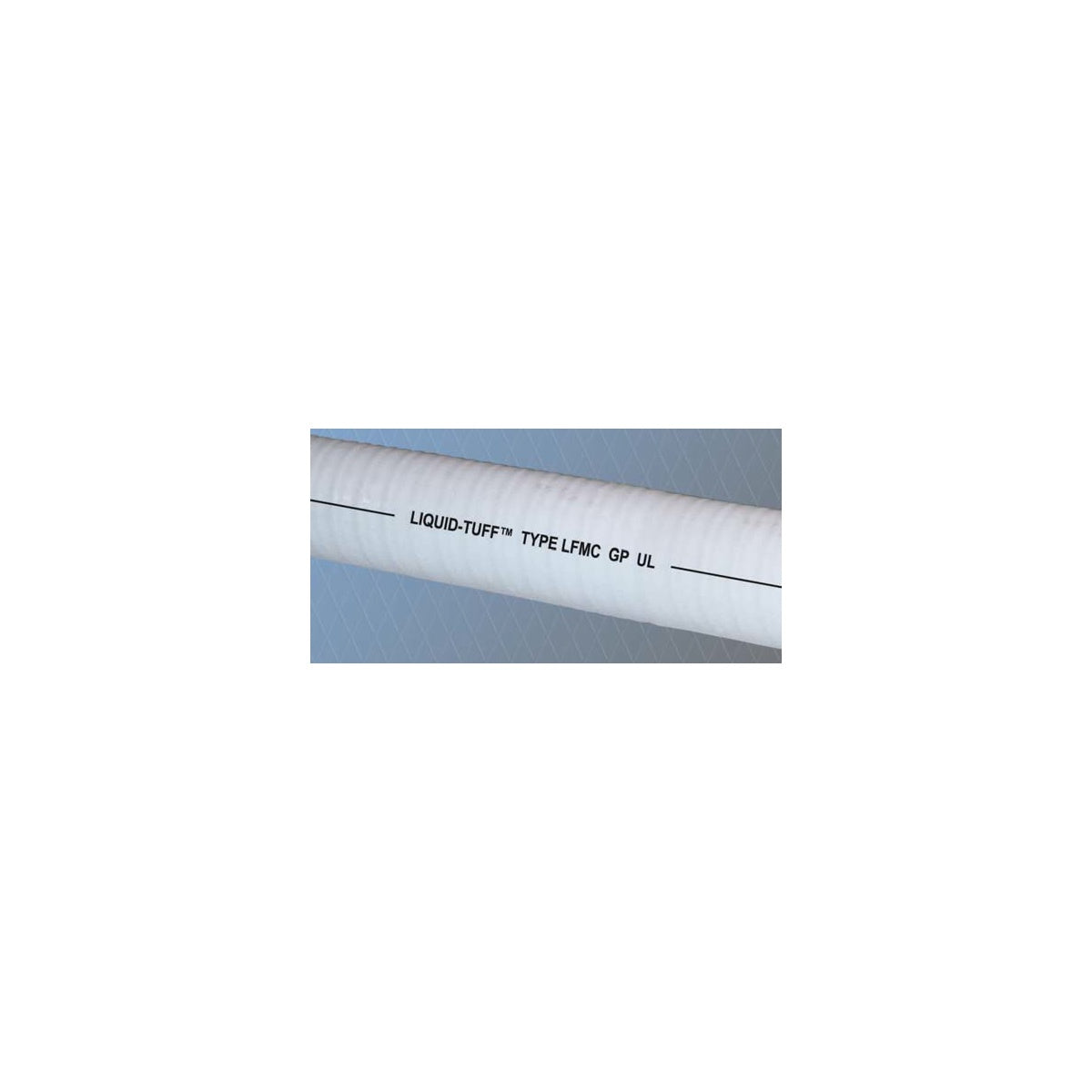

AFC 6203-45-00 3/4" LT UL LT TYPE L Liquidtight Flexible Metal Conduit
The AFC 6203-45-00 is a 3/4" liquidtight flexible metal conduit (LFMC) designed for use as a durable raceway for power, control, and communication cables. Manufactured by AFC Cable Systems, this conduit is suitable for electrical distributors and lighting solutions requiring flexible, moisture, oil, and sunlight-resistant conduit protection. It meets UL and CSA standards for wet locations, direct burial, concrete encasement, and outdoor applications, making it ideal for wire and cable management in harsh environments. The product supports grounding requirements per NEC® and is UL Listed for various temperature conditions.
Specifications
- Manufacturer: AFC Cable Systems
- Manufacturer Part #: 6203-45-00
- Trade Size: 3/4"
- Color: Gray
- Approximate Weight: 49 lbs per 100 feet
- Jacket Thickness: 0.035 inches
- Internal Diameter (min/max): 0.820 / 0.840 inches
- Overall Jacket Diameter (min/max): 1.030 / 1.050 inches
- Bend Radius: 4.25 inches
- Temperature Ratings: 80°C (176°F) Dry, 60°C (140°F) Wet, 70°C (158°F) Oil
- Country of Origin: United States
- Made in USA: Yes
- UPC: 077680120076
Features
- UL Listed Type LFMC for liquidtight flexible metal conduit applications
- Hot-dipped zinc galvanized low carbon steel core for corrosion resistance
- Flame retardant, sunlight-resistant gray PVC jacket providing moisture and oil protection
- Continuous bonding strip for grounding in sizes up to 1-1/4"
- Suitable for direct burial, concrete embedment, and outdoor use
- Compliant with NEC® Article 350 and CSA C22.2 No. 56 standards
- UL Listed for low temperature applications down to -40°C (-40°F)
