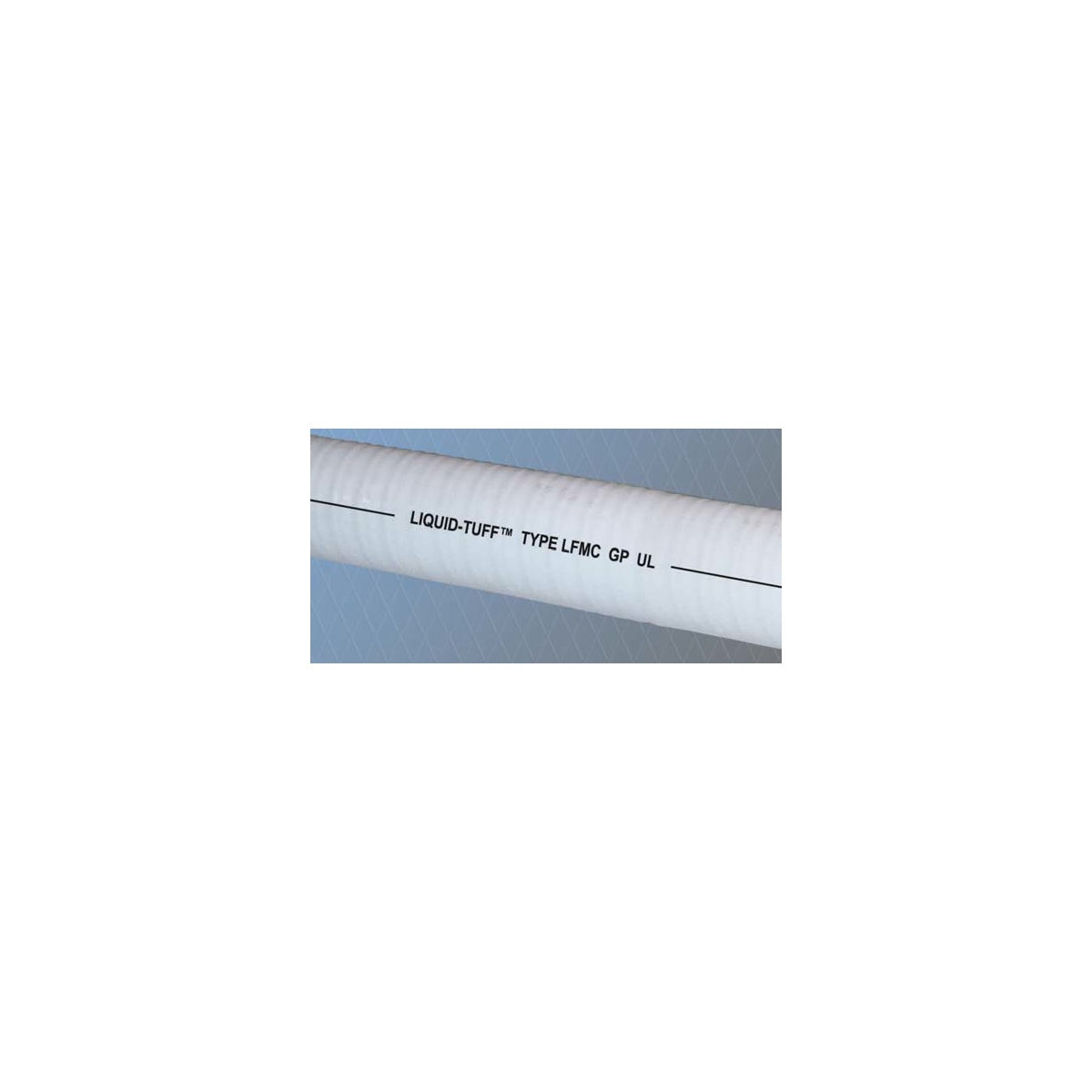

AFC 6201-30-00 3/8" LIQUIDTUFF UL L - Liquidtight Flexible Metal Conduit

The AFC 6201-30-00 3/8" LIQUIDTUFF UL L is a liquidtight flexible metal conduit designed for use as a raceway for power, control, and communication cables. Manufactured by AFC Cable Systems, it is suitable for electrical distributors and switchgear suppliers requiring durable wire and cable protection in wet, dry, and oily locations. This conduit is UL and CSA listed, providing reliable protection in direct burial, concrete encasement, and outdoor applications, including exposure to sunlight and weather.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 6201-30-00
• Trade Size: 3/8 inch
• Color: Gray
• Product Weight: 24 pounds per 100 feet
• Jacket Thickness: 0.03 inches
• Internal Diameter (min/max): 0.484 / 0.504 inches
• Over Jacket Diameter (min/max): 0.690 / 0.710 inches
• Bend Radius: 2 inches
• Temperature Rating: 80°C (176°F) dry, 60°C (140°F) wet, 70°C (158°F) oil
• Country of Origin: United States
• Made in USA: Yes
• UL Listing: UL 360
• CSA Certification: CSA C22.2 No. 56
• UPC: 077680119872

Features

• Hot-dipped zinc galvanized low carbon steel core with square-lock profile and continuous bonding strip for grounding
• Flame retardant, sunlight resistant PVC jacket providing moisture, oil, and weather protection
• UL Listed for direct burial in earth and concrete encasement
• Suitable for wet locations and hazardous environments per NEC requirements
• Continuous bonding strip for grounding in 3/8" to 1-1/4" trade sizes
• Complies with NEC Article 350 and Canadian Electric Code for flexible metal conduit applications
• Tested to UL 360 and CSA C22.2 No. 56 standards including impact, flame resistance, and low temperature flexibility

Downloads & Links

• Spec Sheet
