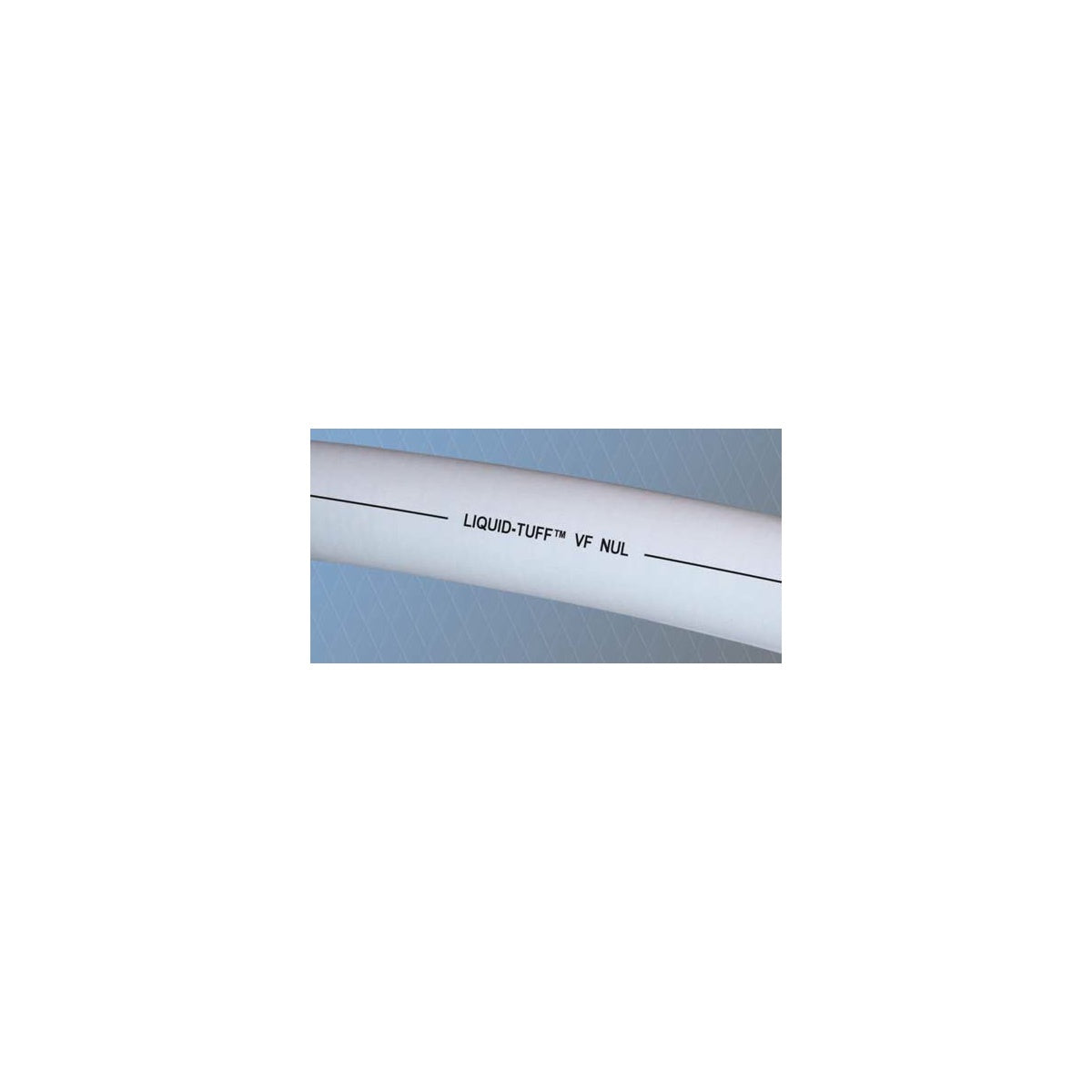

AFC 6110-22-00 4" LT NON-UL LT TYPE Liquidtight Flexible Metal Conduit

The AFC 6110-22-00 is a 4-inch liquidtight flexible metal conduit designed for electrical distributors and switchgear suppliers requiring durable and flexible conduit solutions. This product provides mechanical and moisture protection for conductors in 600 volt and lower circuits. It is suitable for applications involving vibration and movement absorption, making it an effective component in wire and cable installations and lighting solutions where flexibility and environmental resistance are critical.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 6110-22-00
• Trade Size: 4 inches (103 mm)
• Coil Length: 25 feet
• Reel Length: 250 feet
• Approximate Weight: 125 pounds per 100 feet
• Over Jacket Diameter (Min/Max): 4.000 / 4.040 inches
• Internal Diameter (Min/Max): 4.000 / 4.040 inches
• Bend Radius: 24 inches
• Temperature Rating: 60°C (140°F) dry, wet, and oil resistant; -20°C (-4°F) low temperature
• Country of Origin: United States
• Made in USA: Yes
• UPC: 077680119834

Features

• Non-UL listed very flexible conduit
• Hot-dipped zinc galvanized low carbon steel core for corrosion resistance
• Gray flame retardant PVC jacket that is moisture, oil, and sunlight resistant
• Designed for mechanical protection and moisture resistance of conductors
• Suitable for dry, wet, and oily environments at 60°C (140°F)
• Absorbs vibration and movement in electrical installations
