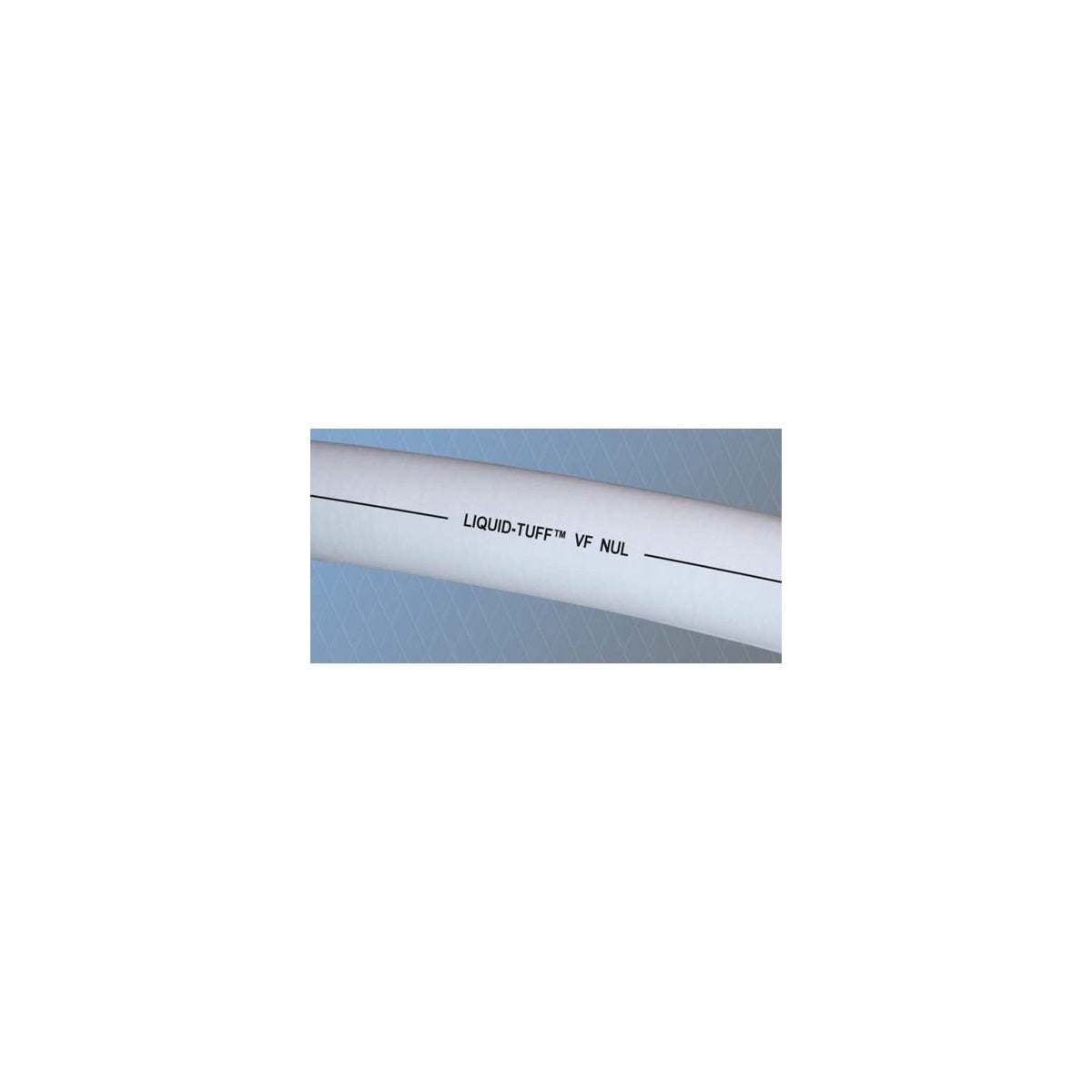

AFC 6107-30-00 2" LT NON-UL LT TYPE Liquidtight Flexible Metal Conduit

The AFC 6107-30-00 is a 2-inch liquidtight flexible metal conduit designed for electrical distributors and switchgear suppliers requiring durable and flexible conduit solutions. It provides mechanical and moisture protection for conductors in applications up to 600 volts. This conduit is suitable for use in dry, wet, and oily environments at temperatures up to 60°C (140°F). Manufactured in the USA, it features a galvanized low carbon steel core with a rugged PVC jacket that is sunlight and flame resistant, making it ideal for lighting solutions, wire and cable protection, and vibration-absorbing installations.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 6107-30-00
• Trade Size: 2 inches (53 mm)
• Coil Length: 100 feet
• Approximate Weight per 100 feet: 120 pounds
• Outer Jacket Diameter: 2.340 to 2.375 inches
• Internal Diameter: 2.020 to 2.045 inches
• Bend Radius: 11.12 inches
• Temperature Rating: 60°C (140°F) dry, wet, and oil resistant; -20°C (-4°F) low temperature
• Material: Hot dipped zinc galvanized low carbon steel core with gray PVC jacket
• Country of Origin: United States
• Product Weight: 120 lbs
• UPC: 077680148063

Features

• Very flexible interlocked steel conduit core with fibrous filler for enhanced flexibility
• Flame retardant, moisture, oil, and sunlight resistant gray PVC jacket
• Suitable for 600 volt and lower circuits
• Absorbs vibration and movement
• Non-UL listed for applications where UL certification is not required
• Made in the USA from domestic and/or imported materials
