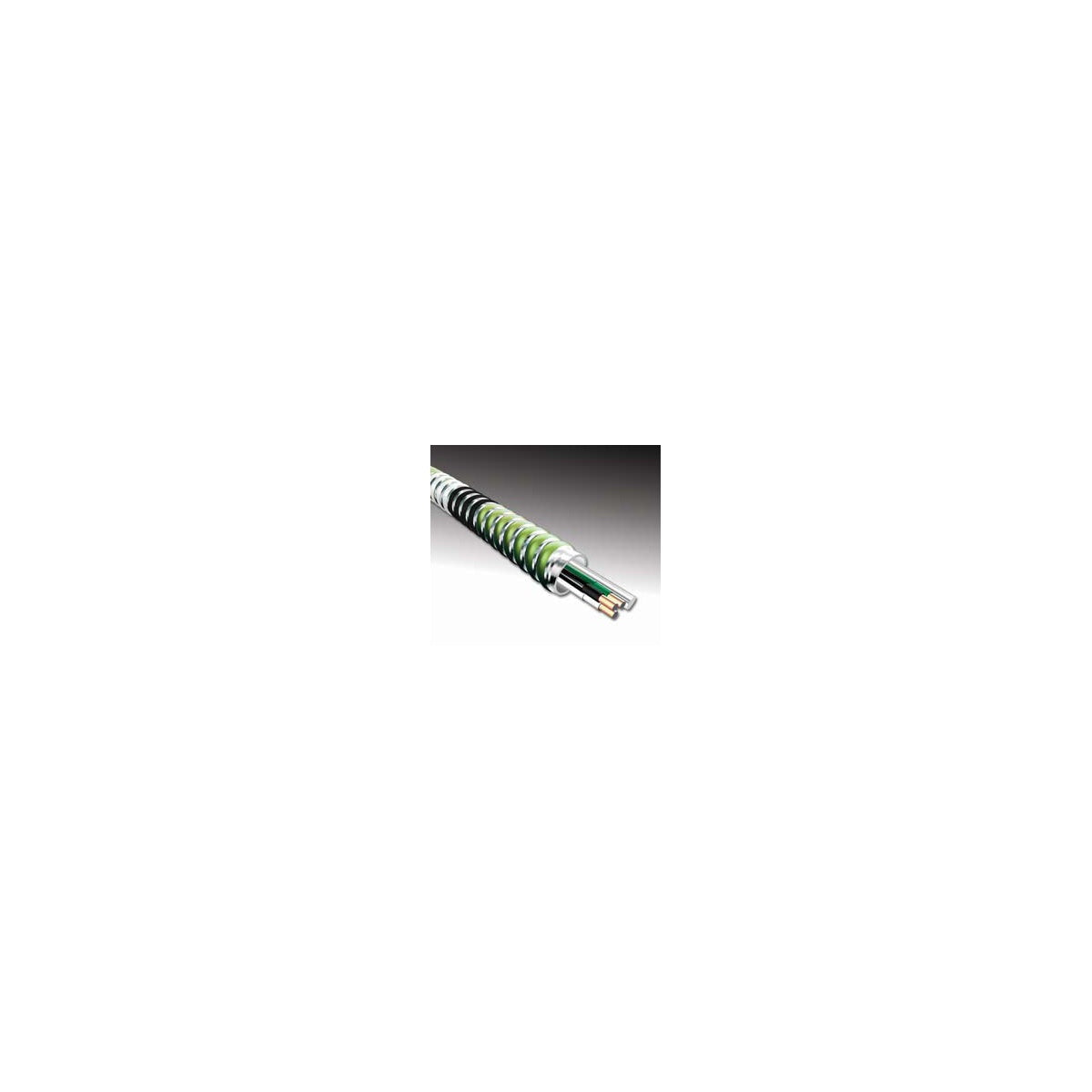

AFC 5809-60-00 10-4 MC-STAT LITE BK Cable

The AFC 5809-60-00 10-4 MC-Stat Lite cable is a Type MCI-A electrical cable designed for use in healthcare and commercial applications. It features solid copper conductors with THHN insulation and a protective polypropylene covering, suitable for wiring systems requiring reliable grounding and durable armor protection. This cable is ideal for electrical distributors and lighting solutions providers seeking high-quality wire and cable products compliant with NEC standards.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 5809-60-00
• Number of Conductors: 4
• Conductor Material: Copper
• Product Weight: 302 lbs
• Country of Origin: United States
• Made in USA: Yes

Features

• Interlocked aluminum strip armor with light green stripe for corrosion resistance
• THHN copper conductors with protective polypropylene insulation
• Rated for 90¬∞C dry locations
• Maximum voltage rating of 600V
• Two grounding methods: combined armor and full-sized green insulated copper ground conductor
• UL Classified for 1, 2, and 3 hour fire penetration
• Suitable for surface mounting, fishing, or embedding in plaster
• Meets NEC¬Æ 330, 300.22(C), 250.118, and other relevant codes
• Complies with OSHA and HUD requirements
• U.S. Patented design

Downloads & Links

• Spec Sheet
