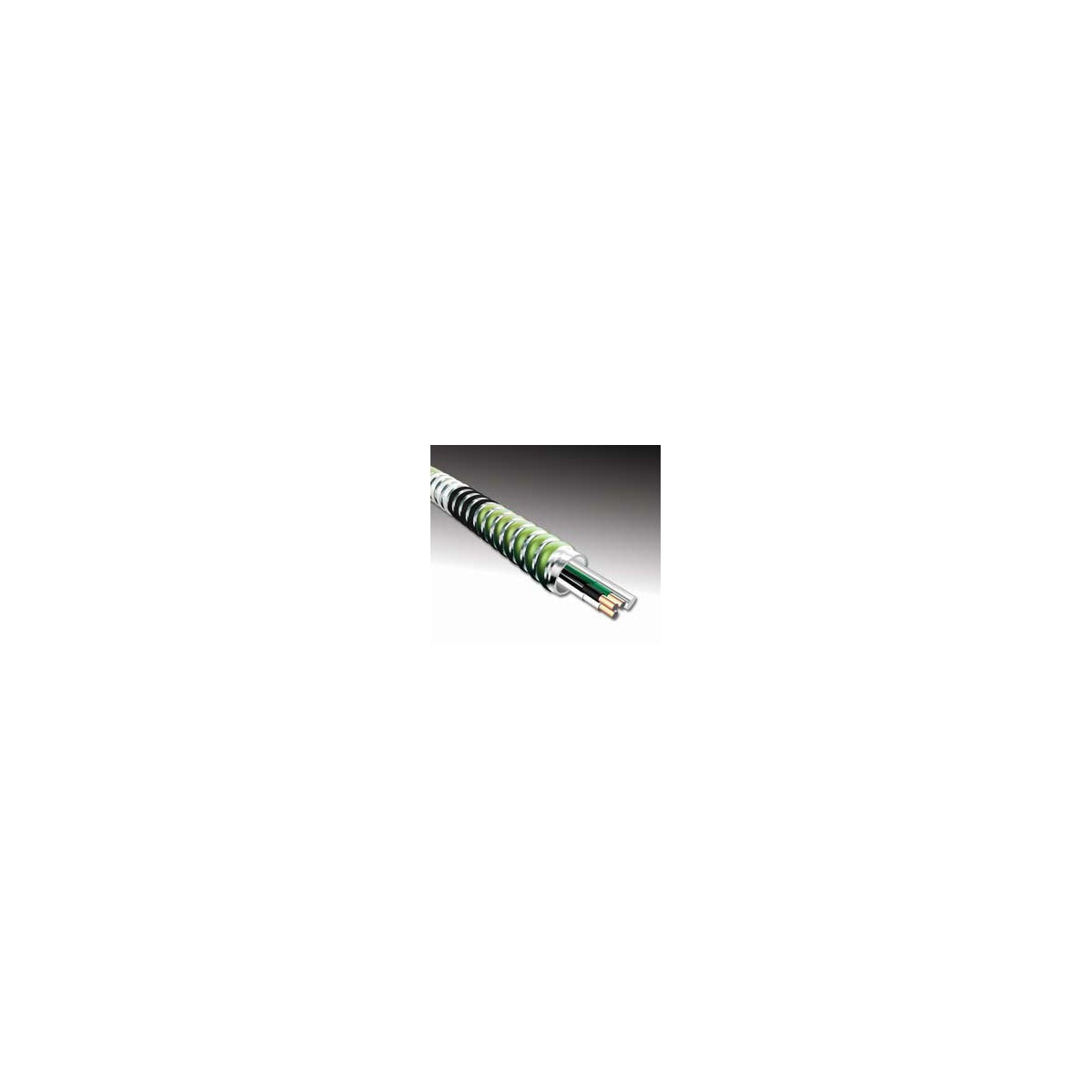

AFC 5805-42-00 12-3 MC-STAT LITE BK Cable

The AFC 5805-42-00 12-3 MC-STAT Lite cable is a type MCI-A electrical cable designed for use in healthcare and commercial applications requiring reliable wire and cable solutions. Manufactured by AFC Cable Systems in the USA, this cable features copper conductors and interlocked armor, making it suitable for installations where durability and safety are essential. It is ideal for electrical distributors and switchgear suppliers seeking compliant and robust wiring options.

Specifications

• Manufacturer Part #: 5805-42-00
• Conductor Material: Copper
• Number of Conductors: 3
• Product Weight: 168 lbs
• Country of Origin: United States
• Made in USA: Yes

Features

• Type MCI-A cable with THHN copper conductors
• Interlocked galvanized steel or aluminum strip armor (Light Green Striped)
• Protective polypropylene covering on each insulated conductor
• Rated for 90°C maximum temperature (dry)
• 600V maximum voltage rating
• Two grounding means: combined armor and full-sized aluminum ground conductor, plus full-sized green insulated copper ground conductor
• UL Classified for 1, 2, and 3-hour fire penetration
• Meets NEC® and OSHA requirements for healthcare and commercial installations
• Suitable for surface mounting, fishing, or embedding in plaster
• Compatible with MCI-A listed connectors

Downloads & Links

• Spec Sheet
