AFC 5804-60-01 12-2 MC-STAT LITE BN Cable – Electrical Wire and Cable

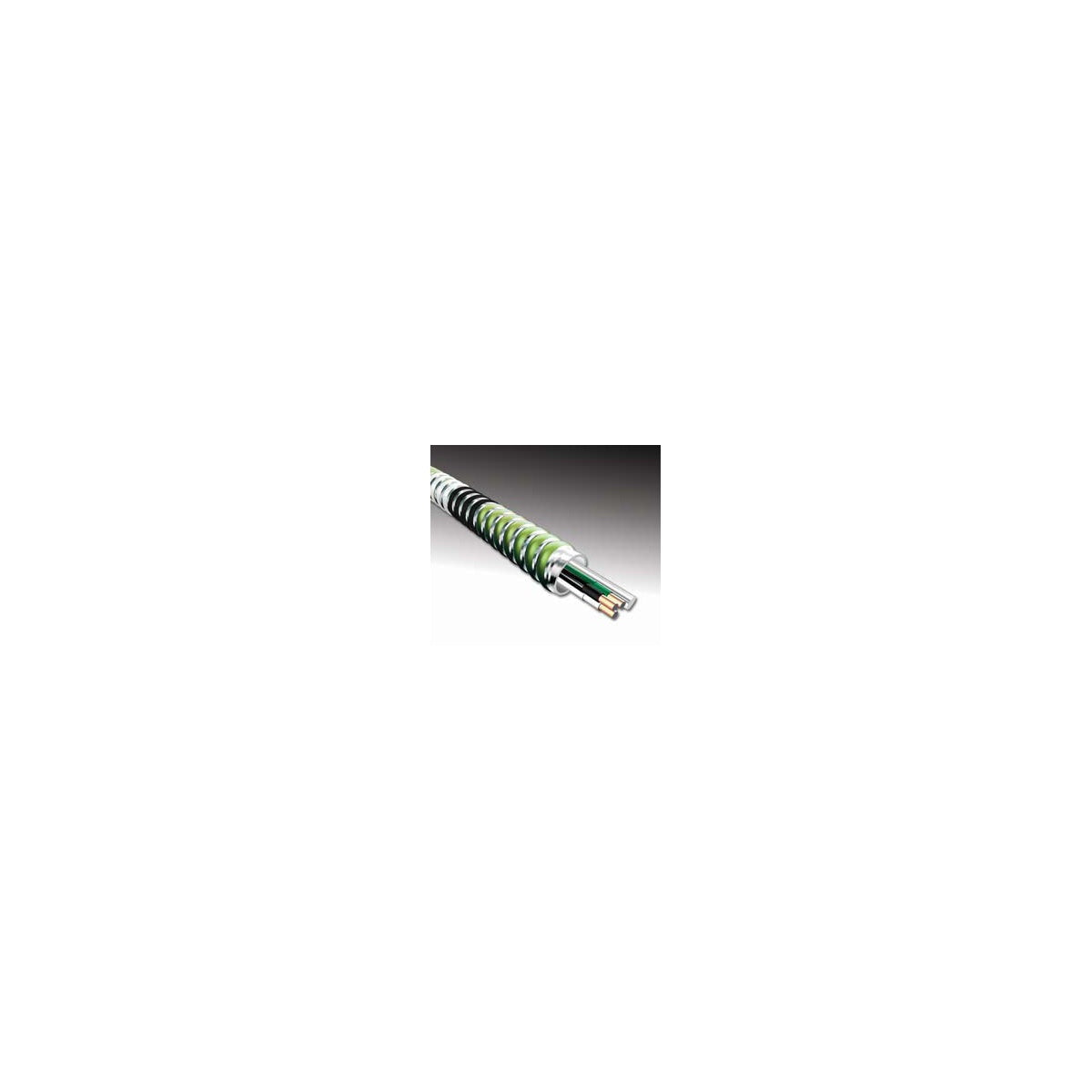

The AFC 5804-60-01 12-2 MC-Stat Lite cable is a type MCI-A electrical cable designed for healthcare and commercial applications requiring reliable, code-compliant wiring solutions. Manufactured by AFC Cable Systems in the USA, this cable features copper conductors with interlocked aluminum armor and THHN conductor insulation with a protective polypropylene covering. It is suitable for use by electrical distributors and lighting solutions providers requiring durable, UL-listed MC cable for wire and cable installations in environments such as surface mounting, embedding in plaster, or cable tray applications.

Specifications

• Manufacturer Part #: 5804-60-01
• Conductor Material: Copper
• Number of Conductors: 2
• Product Weight: 122 lbs per 1000 ft
• Country of Origin: United States
• Made in USA: Yes
• Maximum Voltage Rating: 600V
• Maximum Temperature Rating: 90°C (Dry)
• Armor: Interlocked Aluminum Strip (Light Green Striped)
• Conductor Insulation: Type THHN with Protective Polypropylene Covering
• Grounding: Combined Armor and Full-Sized Aluminum Ground Conductor plus Green Insulated Copper Grounding Conductor
• Neutral Conductor Color: Gray (277/480V)

Features

• UL Classified for 1, 2, and 3 hour fire penetration
• Meets NEC® codes including 330, 300.22(C), 250.118, 392, 396, and others
• Meets OSHA and HUD requirements
• Suitable for use in environmental air handling spaces
• Can be surface mounted, fished, or embedded in plaster
• Cable tray rated for installation per NEC®
• Uses AFC ColorSpec® ID system for conductor identification
• Compatible with MCI-A listed connectors
