AFC 5506-22-00 1" RW FSC 25' Coil Flexible Steel Conduit

The AFC 5506-22-00 is a 1-inch trade size Reduced Wall Flexible Steel Conduit (RW FSC) designed for electrical wiring applications requiring flexibility and corrosion resistance. Manufactured by AFC Cable Systems in the United States, this conduit features interlocking steel armor made of high-grade hot-dipped zinc galvanized low carbon steel. It is suitable for use in exposed and concealed locations and complies with multiple NEC® articles for flexible metal conduit applications. This product supports a wide range of electrical distributor, lighting solutions, wire and cable, and switchgear supplier needs where a durable, flexible raceway is required.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 5506-22-00
• Material: Steel
• Length: 25 FT Coil
• Trade Size: 1-1/2 inch
• Internal Diameter (min/max): 1.500 / 1.575 inches
• External Diameter (min/max): 1.850 / 1.950 inches
• Bend Radius: 7.5 inches
• Product Weight: 19 pounds
• UPC: 077680118936
• Flexibility: Flexible
• Country of Origin: United States
• Made in USA: Yes

Features

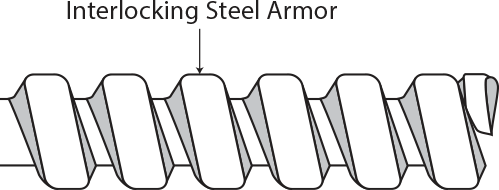

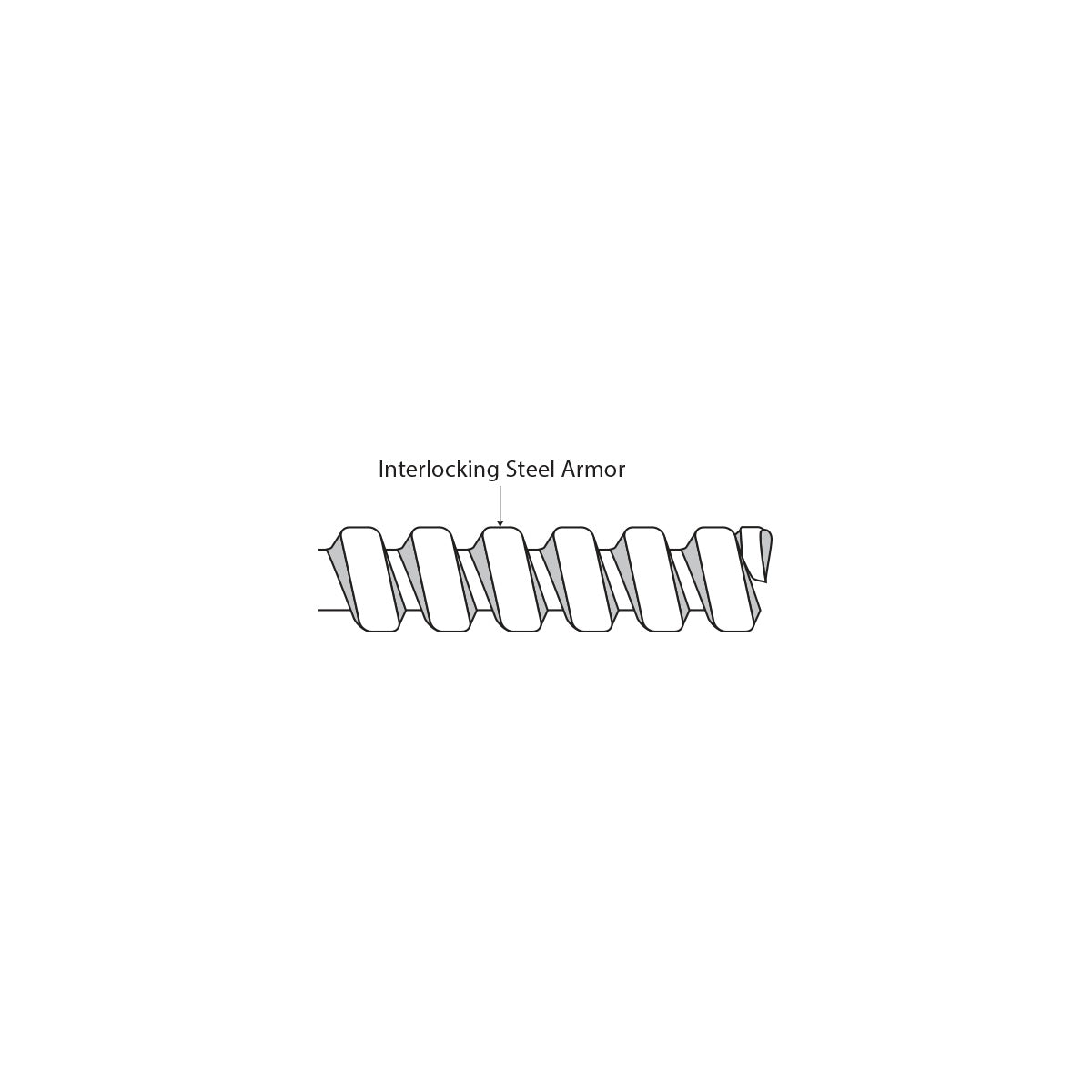

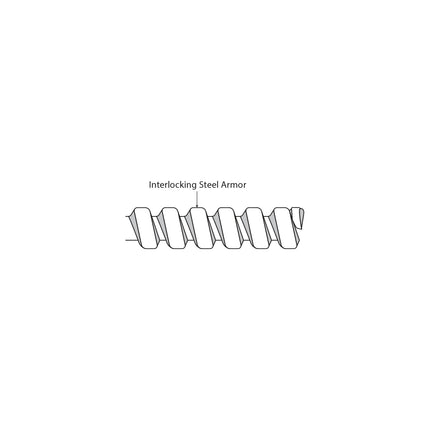

• Reduced wall flexible steel conduit with interlocking design for enhanced flexibility
• Corrosion resistant due to hot-dipped zinc galvanized low carbon steel construction
• Compliant with NEC® Article 348 for Flexible Metal Conduit Type FMC
• Suitable for use in exposed and concealed locations
• Meets UL 1 Standard for Flexible Metal Conduit (UL File Number E11831)
• Designed for use in a variety of electrical applications including cable trays, motor terminal enclosures, solar photovoltaic systems, and critical operations power systems
