AFC 5212-22-00 4" EF FSC 25' COIL Flexible Metal Conduit

The AFC 5212-22-00 is a 4-inch non-UL extra-flexible steel conduit designed for specialized electrical applications where UL and other agency approvals are not required. Manufactured by AFC Cable Systems in the USA, this conduit serves as a flexible metal raceway suitable for motor leads and other wiring needs. It features a high-grade galvanized low carbon steel construction with an interlocking design that provides corrosion resistance, making it a reliable choice for electrical distributors and switchgear suppliers seeking durable wire and cable protection solutions.

Specifications

• Manufacturer Part #: 5212-22-00
• Trade Size: 4 inches
• Coil Length: 25 feet
• Approximate Weight: 41.25 pounds
• Internal Diameter: 4.000 inches (minimum)
• External Diameter: 4.360 to 4.560 inches
• Bend Radius: 20 inches
• Material: High grade galvanized low carbon steel
• Country of Origin: United States
• Made in USA: Yes

Features

• Non-UL extra flexible steel conduit

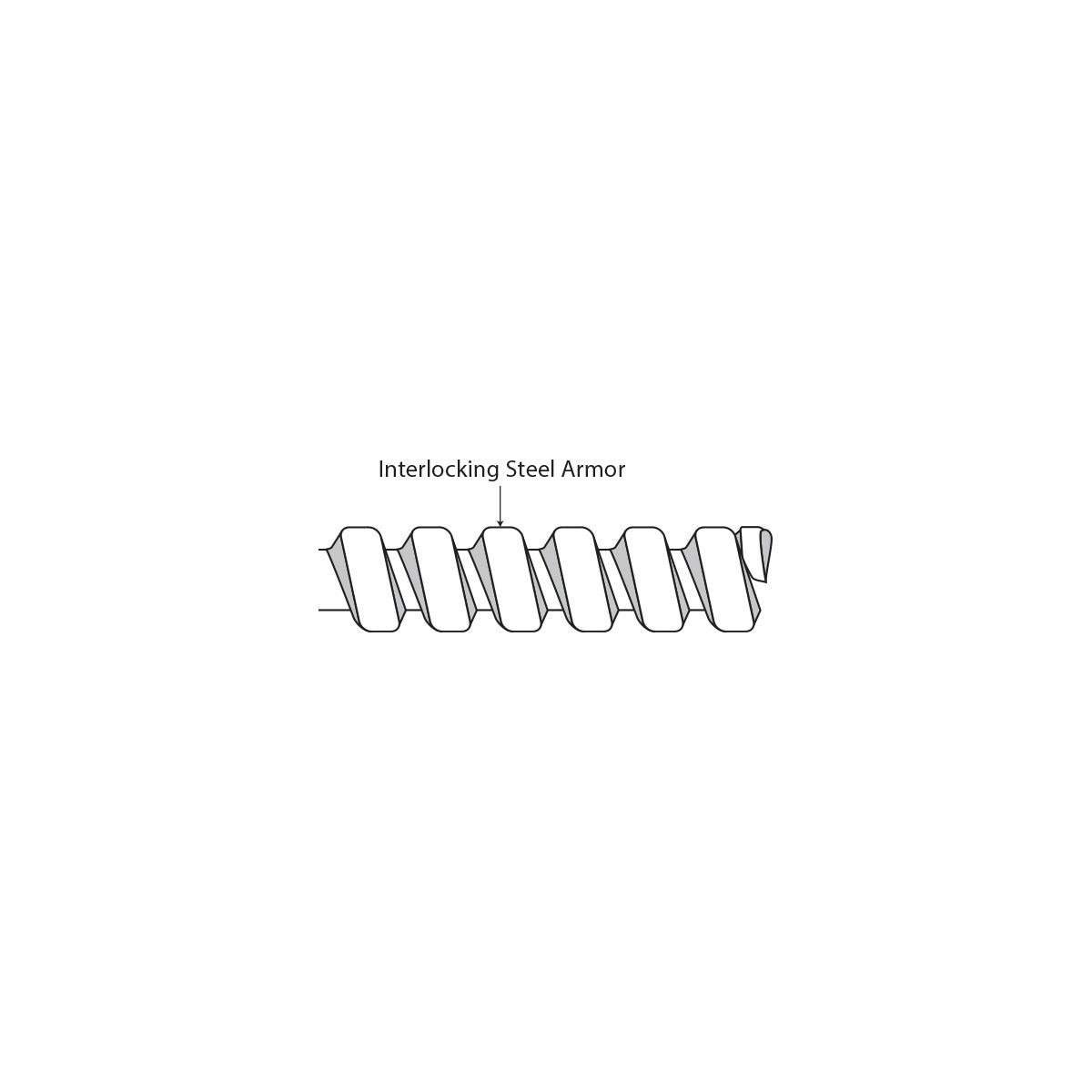

• Interlocking steel armor design
• Corrosion resistant galvanized finish
• Suitable for flexible metal raceway applications
• Manufactured in the USA from domestic and/or imported materials

Downloads & Links

• Spec Sheet
