AFC 5207-22-00 1" EF FSC 25' COIL Flexible Metal Conduit

The AFC 5207-22-00 is a non-UL extra-flexible steel conduit designed for specialized electrical applications where UL and other agency approvals are not required. Manufactured by AFC Cable Systems, this conduit is constructed from high-grade galvanized low carbon steel with an interlocking design that ensures corrosion resistance. It is suitable for use as a flexible metal raceway in motor leads and other specific uses within electrical distribution and lighting solutions.

Specifications

• Manufacturer Part #: 5207-22-00
• Trade Size: 1-1/2 inch (41 mm)
• Coil Length: 25 feet
• Internal Diameter: 1.500 - 1.575 inches
• External Diameter: 1.850 - 1.950 inches
• Bend Radius: 7.5 inches
• Approximate Weight: 15.75 pounds
• Made in USA
• UPC: 077680118523

Features

• Non-UL extra flexible steel conduit
• High-grade galvanized low carbon steel construction

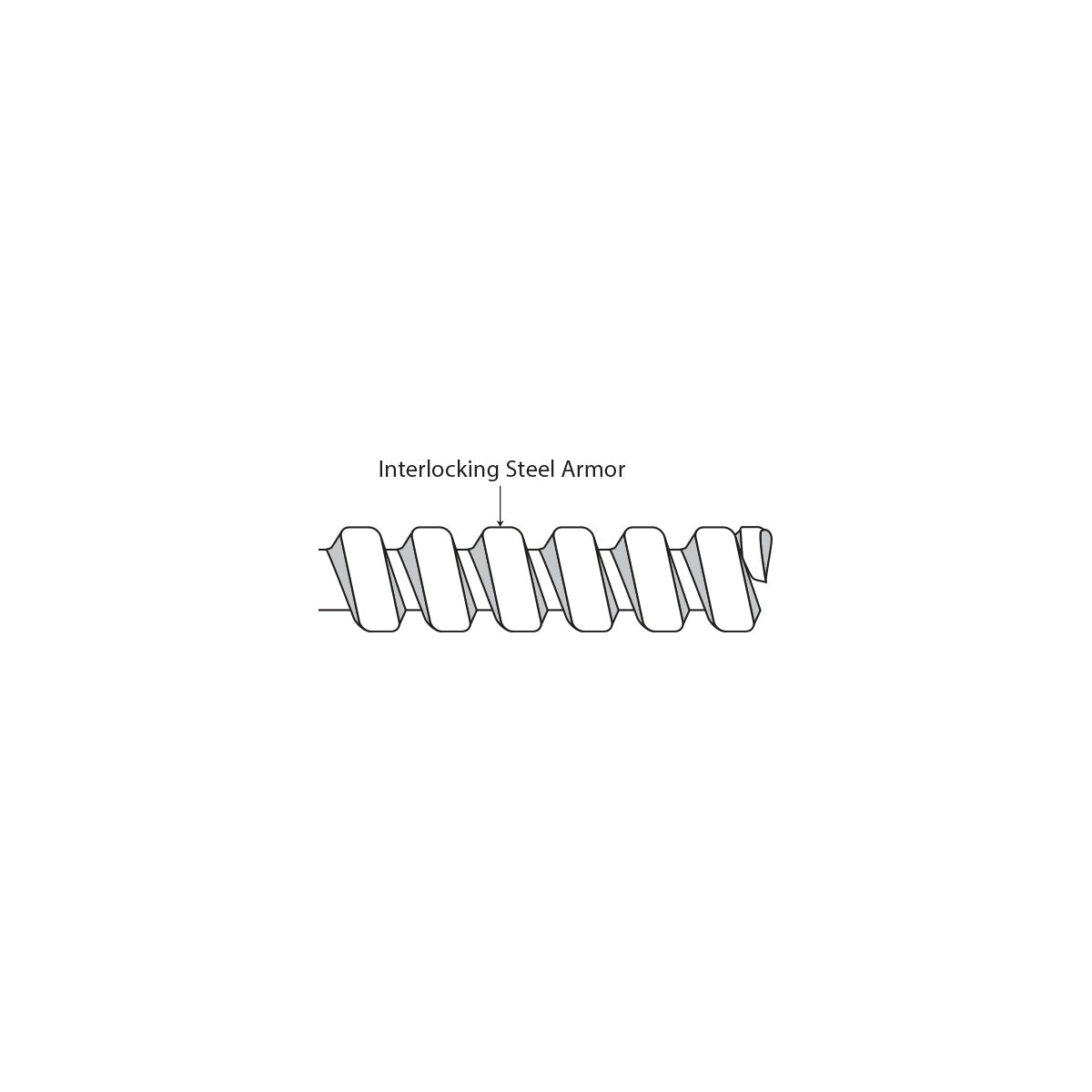

• Interlocking steel armor design for flexibility and durability
• Corrosion resistant
• Made in the United States from US and/or imported materials

Downloads & Links

• Spec Sheet
