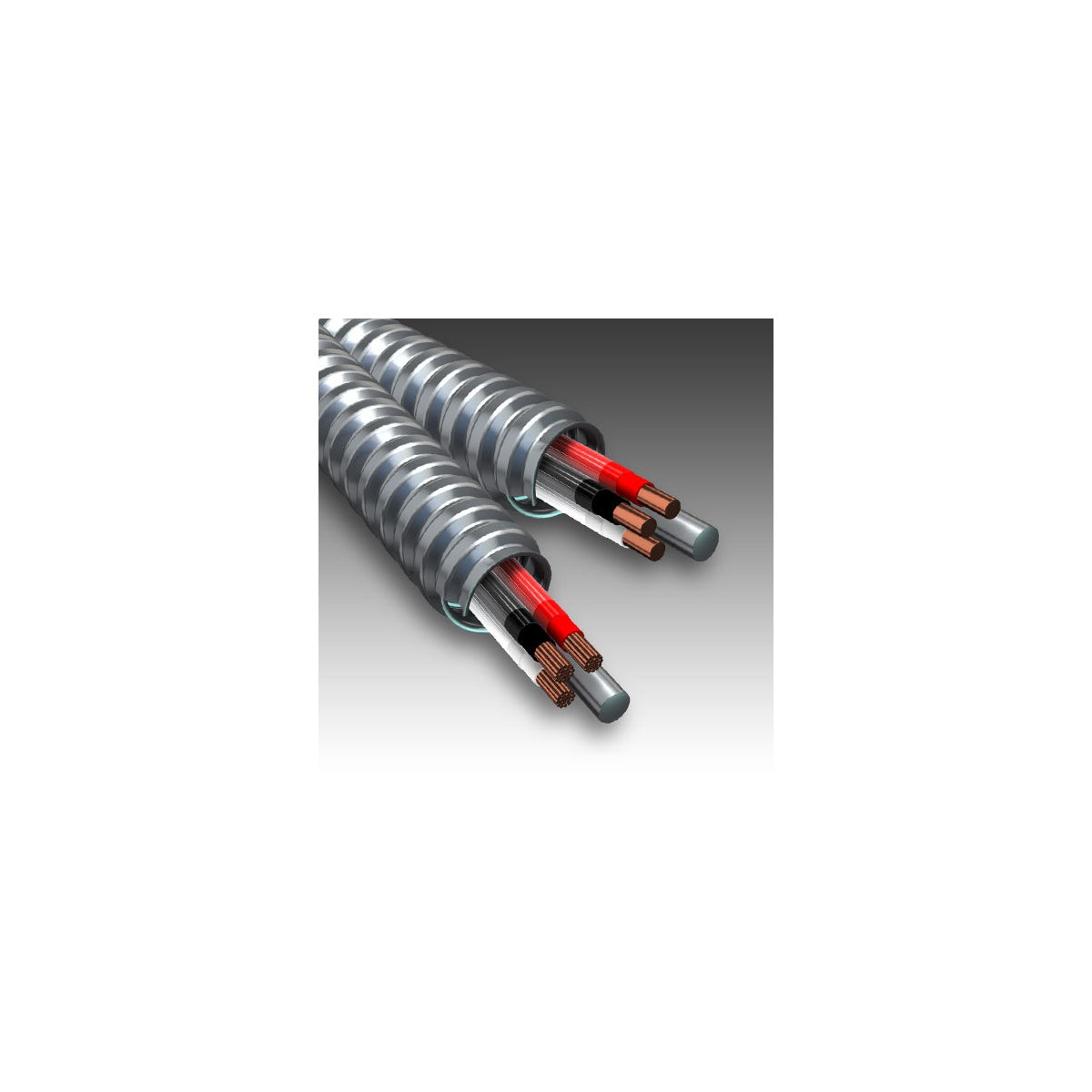

AFC 3105Z60-00 12-3 MC-QUIK LITE BK Aluminum Armored Cable

The AFC 3105Z60-00 MC-Quik® Lite Aluminum Armored Cable is a Type MCI-A cable designed for electrical distribution and wiring applications requiring durable armored protection. Featuring solid copper conductors with THHN insulation and a protective polypropylene covering, this cable is suitable for use in lighting solutions, wire and cable installations, and as a component in switchgear systems. It supports 120/208V and 277/480V systems with a maximum voltage rating of 600V and is UL classified for fire penetration resistance, making it compliant with NEC® and OSHA standards.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 3105Z60-00
• Conductor Material: Copper
• Number of Conductors: 3
• Conductor Type: Solid
• Conductor Insulation: Type THHN with Protective Polypropylene Covering
• Armor: Interlocked Aluminum Strip
• Maximum Temperature Rating: 90°C (Dry)
• Maximum Voltage Rating: 600V
• Grounding: Combined Armor and Full-Sized Aluminum Ground/Bond Conductor (NEC® 250.118(10)(b))
• Neutral Conductor Color: White (120/208V), Gray (277/480V)
• Approximate Weight: 137 lbs (per 1000 ft)
• Country of Origin: USA
• Made in USA: Yes
• UPC: 077680284082

Features

• UL Classified 1, 2, and 3 hour fire penetration product (R14141)
• Meets NEC® requirements for surface mounting, fishing, and embedding in plaster
• Cable Tray Rated for installation per NEC®
• Meets OSHA and HUD requirements
• Type THHN conductors with protective polypropylene covering ensure durability without assembly tape
• Interlocked aluminum strip armor provides mechanical protection and grounding capability
• Patent-protected design (U.S. Patent No. 8,088,997 B2)
