AFC 3104Z60-00 12-2 MC-QUIK LITE BK Aluminum Armored Cable

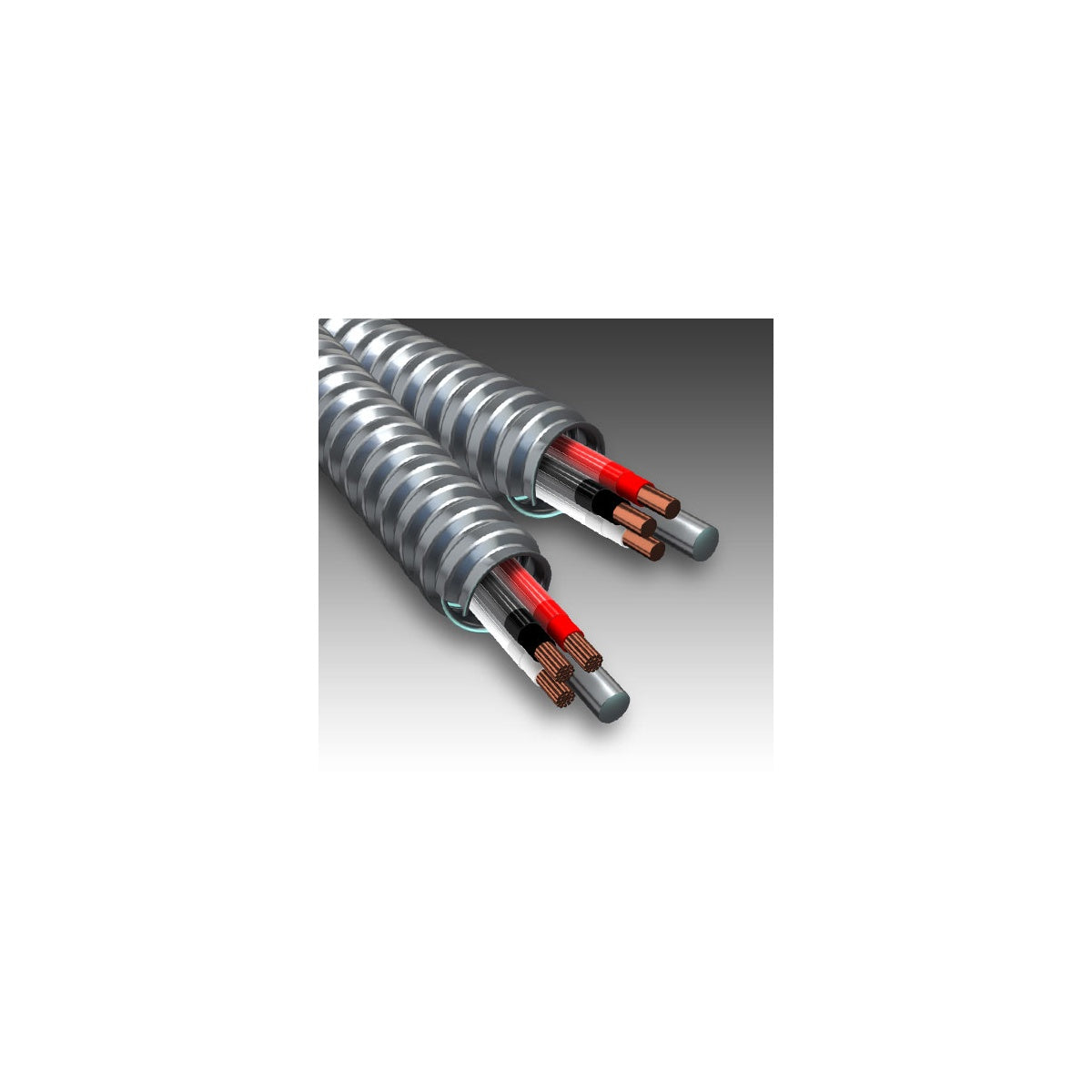

The AFC 3104Z60-00 is a Type MCI-A MC-Quik® Lite Aluminum Armored Cable designed for electrical distribution and wiring applications requiring durable wire and cable solutions. Manufactured by AFC Cable Systems in the USA, this cable features solid copper conductors with THHN insulation and a protective polypropylene covering, making it suitable for use in lighting solutions, switchgear supply, and general electrical distribution. It is rated for 600V and a maximum temperature of 90°C (dry), meeting NEC and UL standards for safe installation in cable trays, air handling spaces, and surface mounting or embedding in plaster.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 3104Z60-00
• Conductor Material: Copper
• Number of Conductors: 2
• Conductor Type: Solid
• Conductor Insulation: Type THHN with Protective Polypropylene Covering
• Armor: Interlocked Aluminum Strip
• Maximum Voltage Rating: 600V
• Maximum Temperature Rating: 90°C (Dry)
• Length: 1000 ft reel (also available in 250 ft coil)
• Approximate Weight: 90 lbs per 1000 ft
• Armor Nominal Outer Diameter: 0.463 inches
• Country of Origin: USA
• Made in USA: Yes

Features

• Combined armor and full-sized aluminum ground/bond conductor per NEC 250.118(10)(b)
• UL Classified for 1, 2, and 3 hour fire penetration
• Meets OSHA and HUD requirements
• Suitable for surface mounting, fishing, or embedding in plaster
• Cable tray rated and compliant with NEC installation requirements
• THHN copper conductors with protective polypropylene covering for durability
• Interlocked aluminum strip armor provides mechanical protection
• Compatible with MCI-A listed connectors
