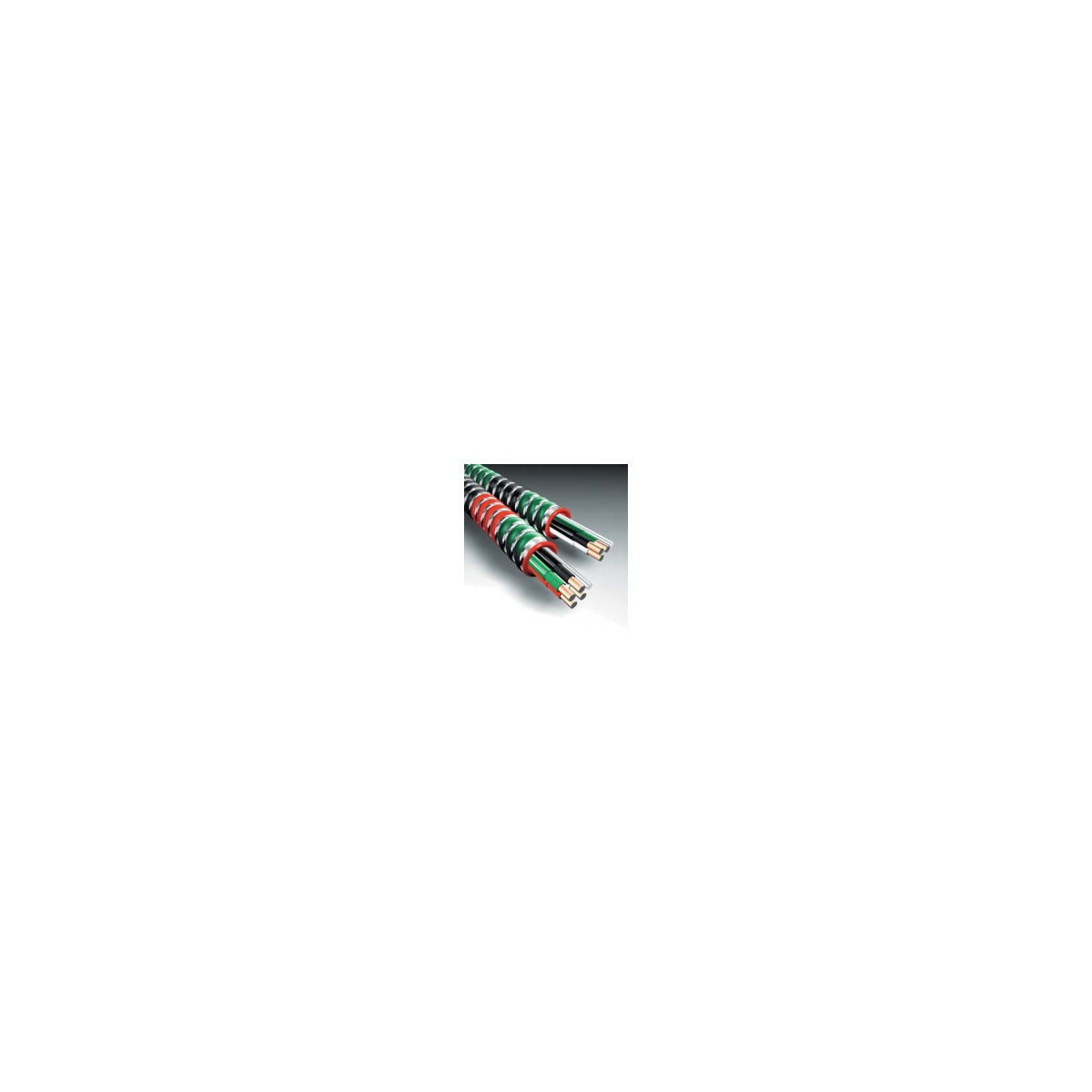

AFC 2805G42-01 12-3 HCF LITE BN OE Healthcare Facilities Cable

The AFC 2805G42-01 12-3 HCF LITE BN OE is an aluminum armored healthcare facilities cable designed for use in electrical distribution and lighting solutions within healthcare environments. It is suitable for Type AC applications at 120/208V and 277/480V, providing robust wire and cable solutions for switchgear suppliers and electrical distributors focused on healthcare facility requirements. This cable features solid copper conductors with THHN insulation and moisture-resistant fire retardant paper wrap, ensuring durability and compliance with NEC and UL standards.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 2805G42-01
• Conductor Size: 12 American Wire Gauge
• Number of Conductors: 3
• Conductor Material: Copper
• Maximum Voltage Rating: 600V
• Made in USA: Yes
• Country of Origin: United States
• Product Weight: 42.6250 lbs
• UPC: 077680162663

Features

• Aluminum interlocked armor with green stripe and ColorSpec¬Æ ID for easy identification
• THHN insulated copper conductors with moisture-resistant fire retardant paper wrap
• Integral 16 AWG bond wire and green insulated copper grounding conductor
• Rated for 90¬∞C dry locations (Type ACTHH)
• UL listed and classified for fire penetration and plenum air handling spaces
• Meets NEC 517.13 requirements for healthcare facility cable
• Complies with OSHA and HUD standards
• RoHS compliant aluminum armor

Downloads & Links

• Spec Sheet
