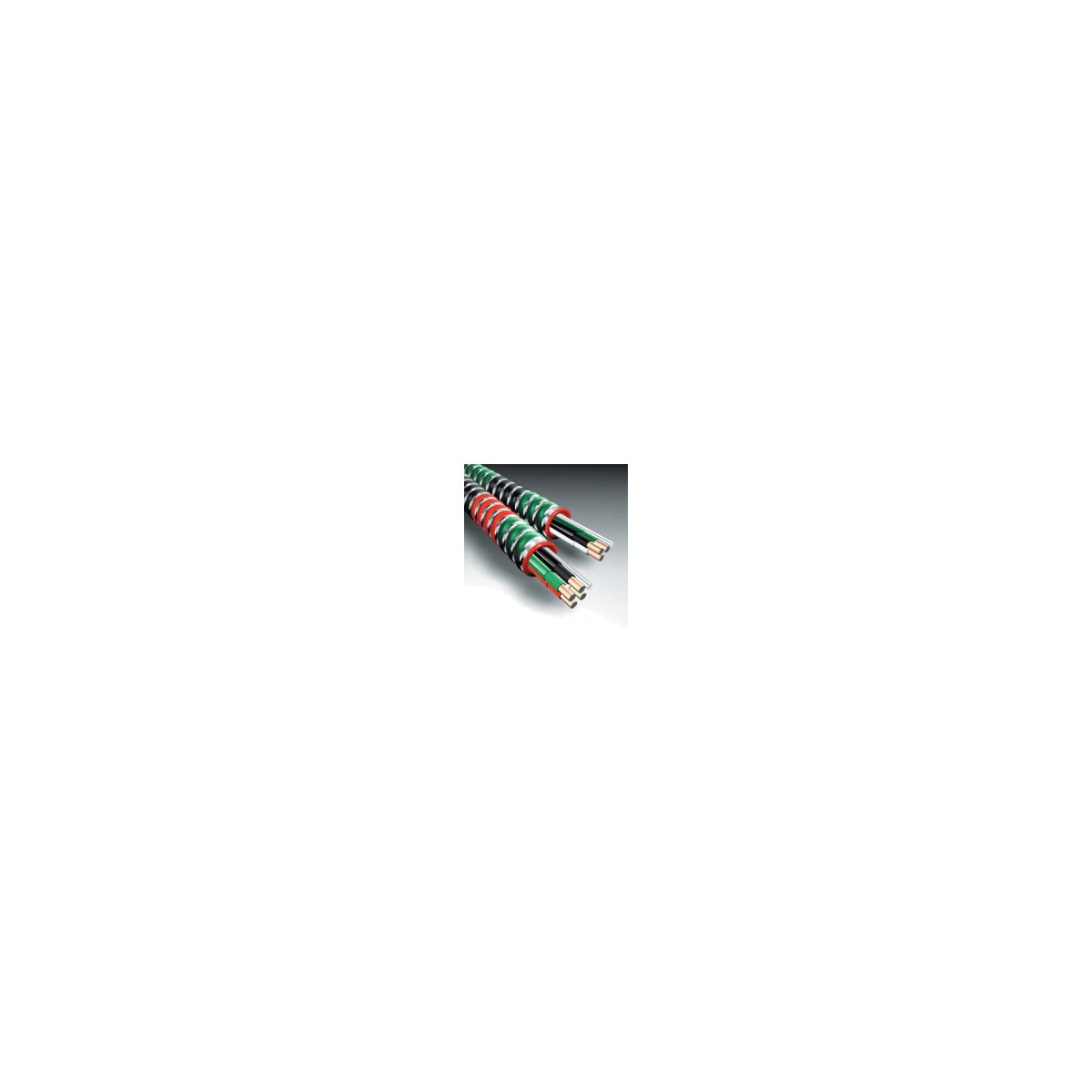

AFC 2804G60-01 12-2 HCF LITE 1000' Healthcare Facilities Cable

The AFC 2804G60-01 is a Type AC armored cable designed for healthcare facilities, providing reliable electrical distribution in critical environments. Manufactured by AFC Cable Systems in the United States, this cable features solid copper conductors with durable THHN insulation and moisture-resistant fire retardant paper wrap, suitable for 120/208V & 277/480V applications. Its aluminum interlocked green-striped armor offers mechanical protection, making it ideal for healthcare wiring solutions requiring compliance with NEC® and UL standards.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 2804G60-01
• Conductor Size: 12 American Wire Gauge (AWG)
• Number of Conductors: 2
• Conductor Material: Copper
• Voltage Rating: 600V Maximum
• Length: 1000 feet
• Armor: Aluminum Interlocked (Green Striped) with ColorSpec¬Æ ID
• Conductor Insulation: THHN
• Conductor Insulation Covering: Moisture Resistant Fire Retardant Paper Wrap
• Maximum Temperature Rating: 90¬∞C (Dry) Type ACTHH
• Grounding: 16 AWG Integral Bond Wire/Armor Combination and Green Insulated Copper Grounding Conductor
• Country of Origin: United States
• Product Weight: 132.4 lbs per 1000 ft
• UPC: 077680162267

Features

• UL Listed and Classified for fire penetration (1, 2, and 3 hour ratings)
• Meets NEC¬Æ requirements including 250.118(8), 300.22(C), 320, 392, 517.13, 518, and 645
• RoHS Compliant aluminum armored cable
• Cable tray rated for installation per NEC¬Æ
• Designed specifically for healthcare emergency circuits with special consideration per NEC¬Æ 517.30(C)(3)(3)
• Made in USA with US and/or imported materials
• Color-coded green armor for easy identification
• Suitable for use in plenum and environmental air handling spaces
